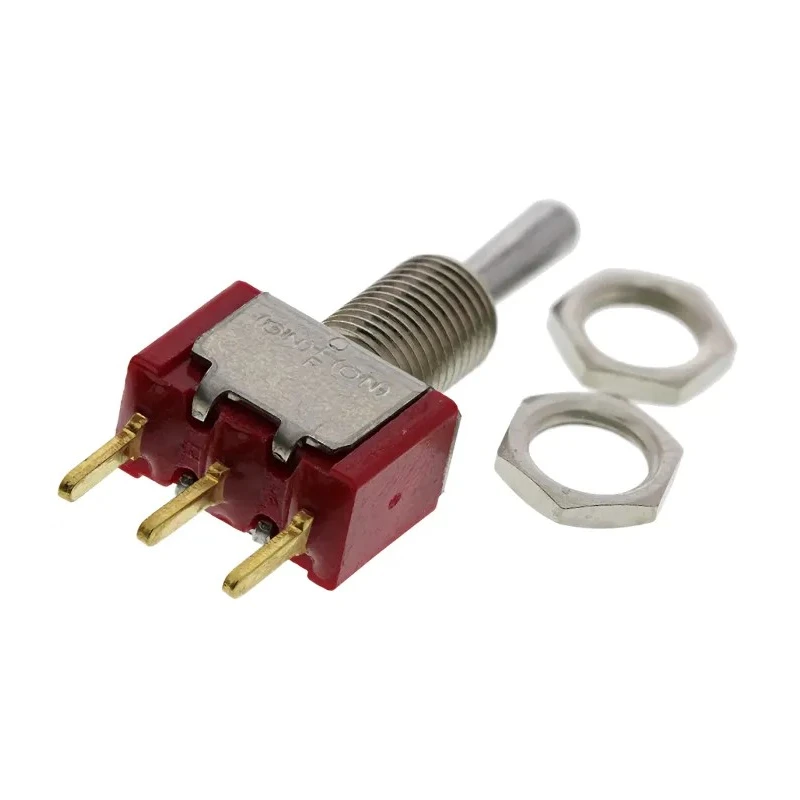

TE Connectivity Gemini A Series Toggle Switch PCB Mount On-Off-On SPDT 28 V dc 115 V ac 3-1825137-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Switch mounted directly on PCB for compact assembly.
- On-Off-On switch operation provides versatile control options.
- SPDT contact configuration allows single-pole double-throw switching.
- Supports 28 V dc and 115 V ac contact voltages.
- Maximum switch contact current is 400mA to handle moderate loads.
- Features IP67 rating ensuring dust tight and water immersion resistance.
- Actuator made of phenolic material for durability and insulation.
- Compact dimensions with 0.5in length, 0.35in height, 0.27in width.
Product Description
TE Connectivity 3-1825137-6 Gemini A Series toggle switch is a high-quality PCB mount On-Off-On switch featuring SPDT contact configuration suitable for various electrical and automation applications. Operating at contact voltages of 28 V dc and 115 V ac with a contact current rating of 400mA, this switch offers reliable and durable performance in compact form factor.
The switch is designed with a phenolic actuator material for robust mechanical strength and excellent insulation. It has epoxy sealed terminals and a stainless steel frame with brass tin plated solder support, enhancing its durability and ensuring secure connections. The IP67 rating provides excellent protection against dust ingress and water immersion, making it ideal for demanding industrial environments.
Small panel cutout size of 6.35 mm and compact actuator length of 10.41 mm make it suitable for space-constrained PCB layouts. With an operating temperature range from -30°C to 85°C, it performs reliably under a range of environmental conditions.
This toggle switch is commonly used in industrial automation systems, electrical control panels, instrumentation, and other applications requiring dependable switching with compact PCB mounting. Its long service life and rugged construction make it an essential component for manufacturing, laboratory equipment, and HVAC control systems.
PCB mount design for efficient panel integration. On-Off-On switch configuration with SPDT contacts. Contact ratings: 28 V dc and 115 V ac at 400mA current. IP67 sealed terminals for harsh environment resistance. Compact dimensions and phenolic actuator for durability.
Epoxy sealing and brass tin plated solder support ensure connection integrity.
For customers seeking a reliable and compact toggle switch for industrial, electrical, and automation uses, the TE Connectivity 3-1825137-6 Gemini A Series Toggle Switch delivers excellent value and performance. Explore the broad range of TE Connectivity switches at EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching options.
It supports contact voltages of 28 V dc and 115 V ac.
The maximum switch contact current is 400 mA, suitable for handling moderate loads.
This model has an IP67 rating, ensuring it is dust tight and resistant to water immersion.
It operates reliably within a temperature range of -30°C to 85°C.
The dimensions are 0.5 inches in length, 0.35 inches in height, and 0.27 inches in width.
This toggle switch is designed for PCB mounting, allowing for efficient integration into circuit boards.
The actuator is made of phenolic material, providing durability and insulation.
The required panel cutout size is 6.35 mm.
It complies with RoHS standards, ensuring it meets environmental regulations.
This model is commonly used in industrial automation systems, electrical control panels, and instrumentation applications.
