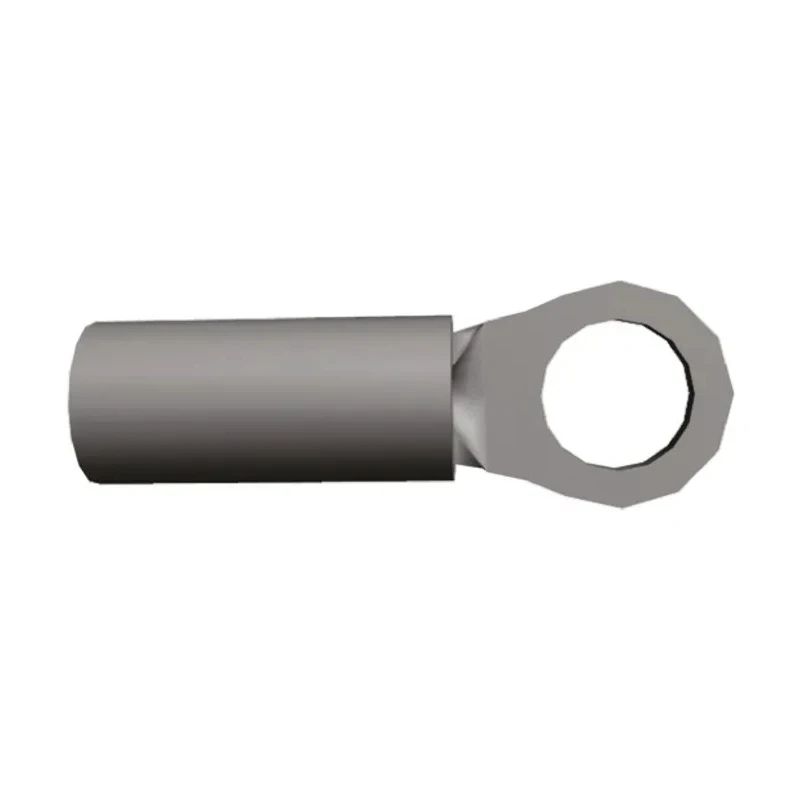

TE Connectivity DG STRATO-THERM Uninsulated Ring Terminal, M3.5 Stud Size, 22 AWG to 16 AWG Wire Size, Nickel Plated 323151
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 323151 |
| Insulation | Uninsulated |
| Overall Length | 16.38mm |
| Contact Material | Copper |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 343°C |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- The terminal supports wire sizes from 22 AWG to 16 AWG.
- Constructed from nickel-plated copper for excellent conductivity and corrosion resistance.
- Uninsulated design suitable for applications requiring high temperature tolerance up to 343°C.
- Features an outer ring diameter of 5.54 mm and inner ring diameter of 3.68 mm.
- Overall length of the terminal is 16.38 mm with a thickness of 0.79 mm.
- Heat resistant with DG STRATO-THERM series design for improved electrical performance.
- Compatible with crimping tools for solid and stranded conductor termination.
- RoHS compliant to meet environmental and safety standards.
Product Description
TE Connectivity 323151 DG STRATO-THERM Uninsulated Ring Terminal is a high-quality heat resistant wire terminal designed for demanding electrical connection needs in industrial and power applications. The terminal supports wire sizes from 22 AWG to 16 AWG and fits M3.5 stud sizes, providing a reliable mechanical and electrical connection.
Manufactured using nickel-plated electrolytic copper, this terminal offers excellent conductivity and corrosion resistance, which ensures stable performance under harsh conditions. The uninsulated design allows it to withstand operating temperatures up to 343°C (650°F), making it suitable for environments where standard insulated crimps cannot be used.
The ring terminal features an overall length of 16.38 mm, with a thickness of 0.79 mm, an outer ring diameter of 5.54 mm, and an inner ring diameter of 3.68 mm. This precise sizing ensures secure fits and proper connectivity in power and electronic assemblies.
When crimped, the wire is forced into the serrations within the barrel, maximizing electrical contact area and ensuring a robust termination for both solid and stranded conductors. The DG STRATO-THERM series combines durability and high-temperature resistance, making it widely used in industrial, manufacturing, HVAC, and electrical installation applications.
The terminal supports wire sizes from 22 AWG to 16 AWG. Constructed from nickel-plated copper for conductivity and corrosion resistance. Uninsulated for high temperature operation up to 343°C. Measured dimensions: 16.38 mm length, 5.54 mm outer ring diameter, and 3.68 mm inner ring diameter.
Thickness of 0.79 mm for mechanical strength. Complies with RoHS environmental standards. Designed for use with solid and stranded wire conductors with crimp tooling. Applicable across industrial and electrical sectors requiring high reliability.
Package contents typically include individual Ring Terminals ready for application and assembly into electrical circuits. Ideal for replacing standard terminals where higher temperature resistance is necessary. Explore the range of TE Connectivity products on EnvMart to find compatible connectors and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this uninsulated ring terminal is 343°C (650°F).
This terminal supports wire sizes from 22 AWG to 16 AWG, accommodating a range of applications.
The terminal has an overall length of 16.38 mm, an outer ring diameter of 5.54 mm, an inner ring diameter of 3.68 mm, and a thickness of 0.79 mm.
It is constructed from nickel-plated copper, which provides excellent conductivity and corrosion resistance.
This model is uninsulated, making it suitable for high-temperature applications where standard insulated terminals cannot be used.
This terminal is designed to fit M3.5 stud sizes, ensuring a secure connection.
The terminal complies with RoHS environmental standards, ensuring safety and environmental compliance.
Yes, it is designed for use with both solid and stranded wire conductors, maximizing electrical contact area when crimped.
The contact plating of this terminal is nickel, which enhances its conductivity and resistance to corrosion.
This terminal is widely used in industrial, manufacturing, HVAC, and electrical installation applications that require high reliability.
The thickness of this ring terminal is 0.79 mm, providing mechanical strength for reliable connections.
The terminal is manufactured in India, reflecting its origin in quality production.
