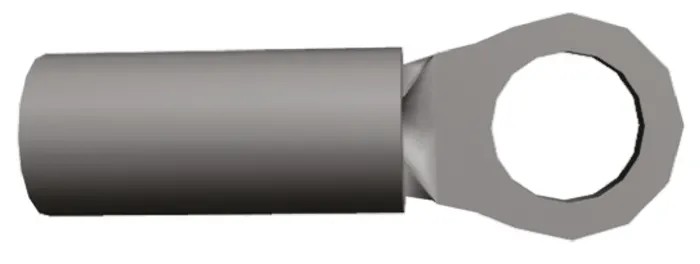

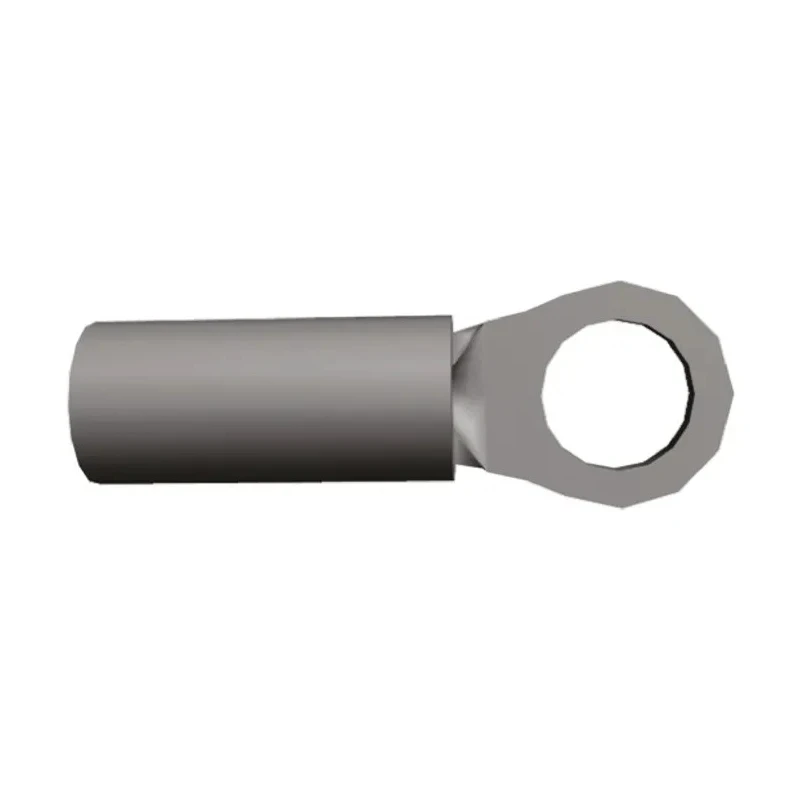

TE Connectivity DG STRATO-THERM Uninsulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Copper Nickel Plated 323151

TE Connectivity 323151 DG STRATO-THERM uninsulated ring terminal is engineered for demanding electrical applications requiring reliable high-temperature performance. Manufactured from copper with nickel plating, it provides excellent electrical conductivity and resistance to corrosion. Designed specifically for M3.5 stud sizes, the ring terminal accommodates wire sizes between 22 AWG and 16 AWG (0.26mm² to 1.65mm² cross-sectional area), making it versatile in various electrical wiring tasks.

This terminal is uninsulated, making it ideal for use in elevated temperature applications up to 343°C, where traditional insulated terminals may degrade. The outer ring diameter of 5.54mm and inner diameter of 3.68mm ensure a secure fit on mounting studs. Its robust construction with a thickness of 0.79mm and an overall length of 16.38mm provides mechanical strength and durability.

TE Connectivity’s DIAMOND GRIP STRATO-THERM series ring terminals are widely used in industrial, automotive, and electrical assembly manufacturing sectors, particularly where heat resistance and durable electrical connections are critical. The product supports termination of both solid and stranded conductors, with the crimping process optimizing electrical contact through serrations or dimples inside the barrel.

Compliant with RoHS directives, this terminal assures environmental compatibility and reduced hazardous substance content. Installation is facilitated with suitable hand crimping tools (stock number 162-3159 recommended).

Applications include industrial electrical panels, automotive wiring harnesses, HVAC systems, power supply assemblies, and other environments demanding high temperature reliability and strong electrical performance.

Please refer to the detailed technical documents and design resources available for precise working parameters. Package contents typically include single uninsulated ring terminals supplied in boxed quantities.

The terminal is made from copper with nickel plating for enhanced conductivity and corrosion resistance. Designed for use where operating temperatures require heat resistant connections. Fits M3.5 studs with accurate ring diameters for secure mounting.

Wire size compatibility ranges from 22 AWG to 16 AWG, covering common electrical wiring gauges. RoHS compliant for environmental safety standards. Explore EnvMart’s extensive range of power connectors and Ring Terminals for comprehensive solutions in electrical connectivity.
