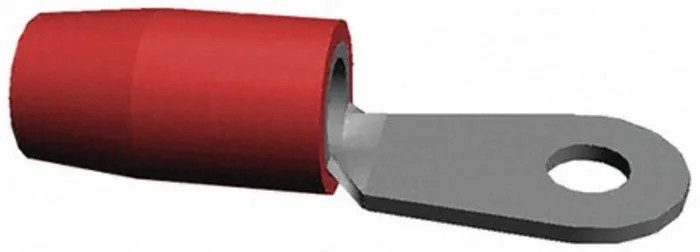

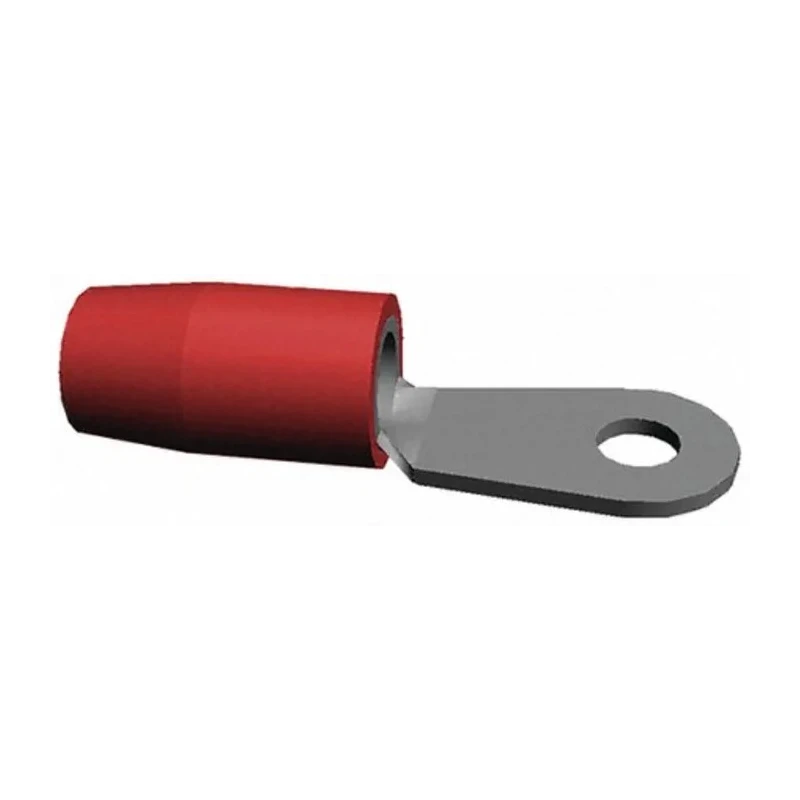

TE Connectivity PIDG Insulated Ring Terminal M2 Stud Size 22 AWG to 16 AWG Nylon Insulation Red 324158

TE Connectivity 324158 PIDG Insulated Ring Terminal is designed with precision-formed high conductivity copper body and barrel, optimized for reliable electrical connections in complex circuit environments. This insulated ring terminal features a red nylon insulation sleeve and fits M2 stud sizes, accommodating wire sizes from 22 AWG to 16 AWG (0.3 mm² to 1.3 mm²).

The barrel contains serrations to ensure maximum contact and tensile strength and is surrounded by a copper sleeve that enhances wire insulation support and prevents wire fraying. The color-coded nylon sleeve allows for quick wire size identification and tooling accuracy, while its funnelled wire entry ensures ease and speed of wire insertion during high-speed production.

These PIDG terminals are engineered for consistent and uniform crimps with the use of specialized tool dies, contributing to high manufacturing reliability and performance. Designed to withstand operating temperatures up to 105°C, these terminals are suited for a wide variety of industrial applications including instrumentation, control panels, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and household appliances.

The robust construction and materials meet or exceed the specifications of MIL-T-7928, Type II, Class 1 and 2 standards, offering durability and assurance in demanding electrical installations.

The product offers an excellent balance of mechanical strength, electrical conductivity, and environmental resistance. This Ring Terminal is a versatile solution for commercial, industrial, and manufacturing sectors requiring dependable wire termination technologies.

Constructed with high conductivity copper body for optimal electrical performance. Equipped with serrations inside the barrel for maximum contact and tensile strength after crimping. Features a copper sleeve surrounding the wire barrel to support insulation and prevent fraying.

Color-coded nylon sleeve aids wire size identification and tooling accuracy. Funnelled wire entry prevents turned-back wire strands for easier and faster insertion. Designed to provide uniform and reliable crimps using specialized tooling dies.

Suitable for a broad range of wiring applications including instruments, control systems, lighting, and power supplies. Meets or exceeds MIL-T-7928, Type II, Class 1 and 2 requirements in many cases. Operating temperature rating up to 105°C for demanding environments.
