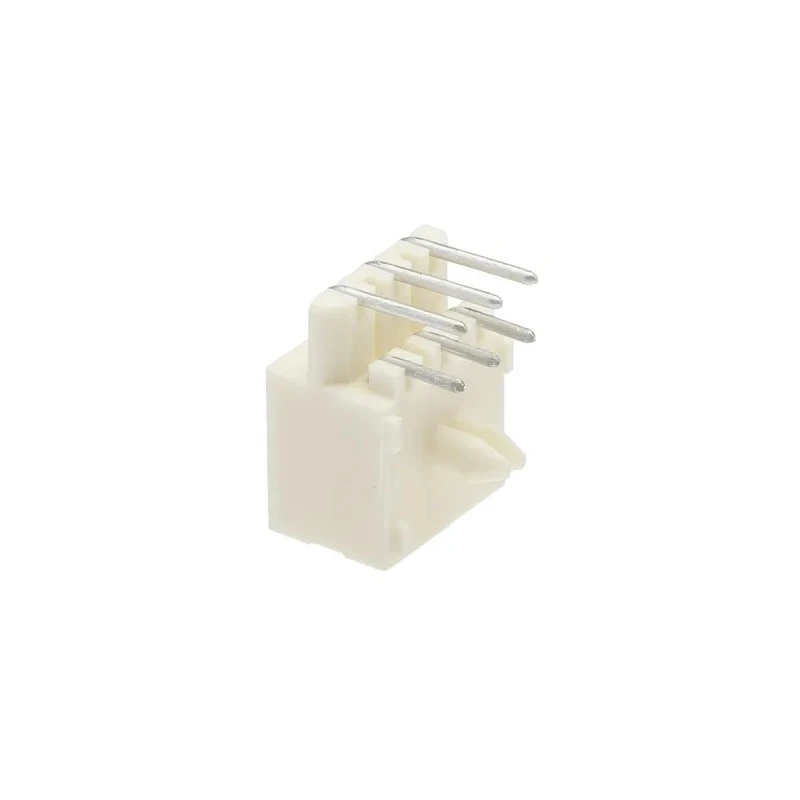

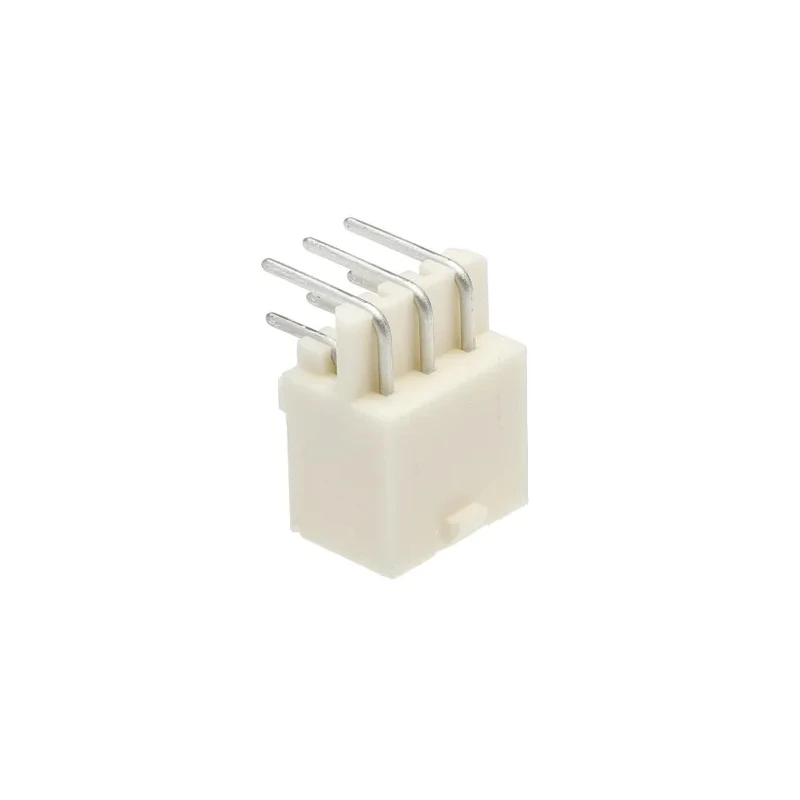

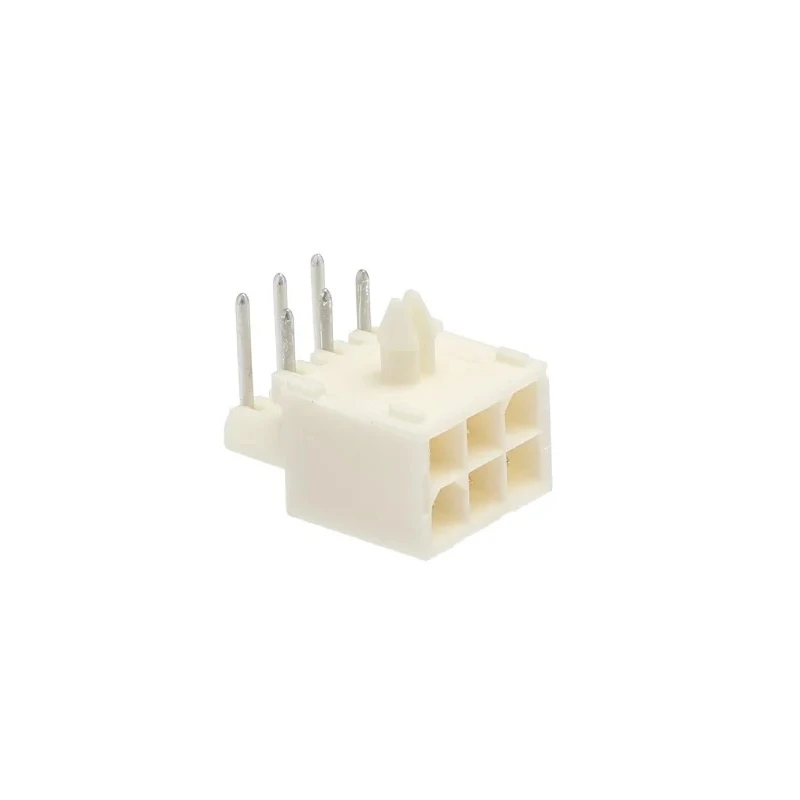

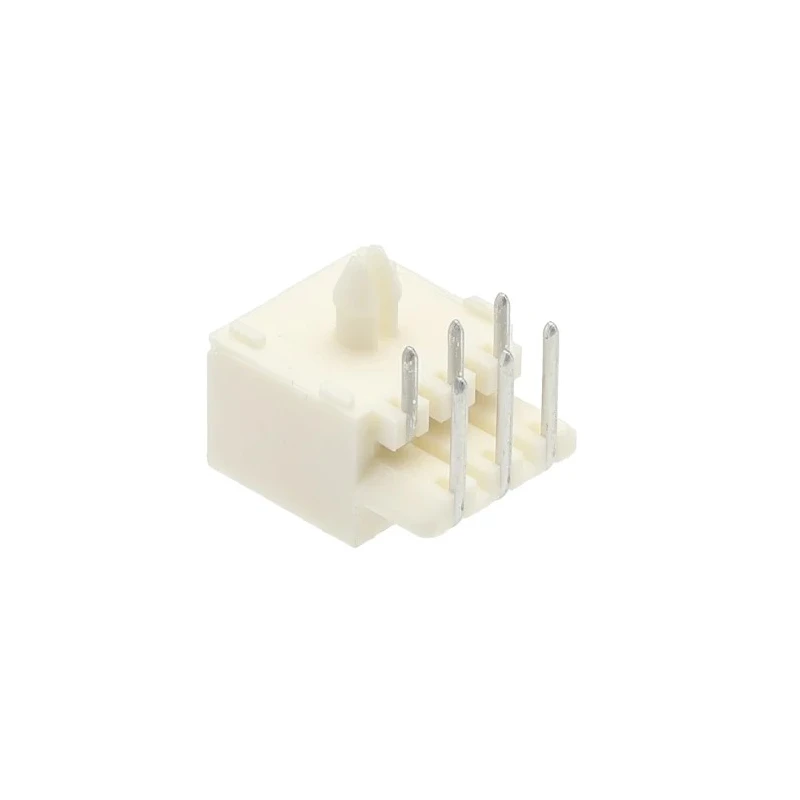

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-1
Brand: TE Connectivity
SKU: 217933



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
Orientation	Right Angle
Current	9.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Number of Rows	2
Pitch	4.14mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with high-quality nylon housing for durability and UL94V-0 fire resistance.
Features gold-plated brass contacts assuring excellent conductivity and corrosion resistance.
Designed with a positive locking latch mechanism for secure mating.
Supports a temperature range from -20°C to 85°C for varied operating environments.
Offers a shrouded design to prevent accidental shorting and secure connection.
Wire-to-board connector system suitable for robust PCB retention with board locks.
Through-hole mounting enhances mechanical stability on PCB assemblies.
Compact 4.14 mm pitch ensures compatibility with Mini-Universal MATE-N-LOK plug housings and socket contacts.

Product Description

TE Connectivity 1-770969-1 Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header features 6 male contacts arranged in 2 rows with a 4.14 mm pitch for wire-to-board applications. The connector system operates at up to 600V and 9.5A current, making it reliable for various electronic assemblies. Its nylon housing ensures safety compliance with UL94V-0 standards, offering mechanical durability and flame resistance.

The brass contacts are plated with gold for superior conductivity and resistance to corrosion, critical for maintaining reliable connections over long-term use. The right angle orientation and through-hole mount provide secure mechanical retention on printed circuit boards, combined with an integrated positive locking latch and board locks to prevent disconnections during operation.

This connector is suitable for industrial, commercial electronics, and manufacturing environments that require robust PCB interconnections. It can be paired with compatible Mini-Universal MATE-N-LOK plug housings and socket contacts for full system integration. The connector supports a broad temperature range from -20°C to 85°C, suitable for diverse operating conditions.

Constructed with fire-retardant nylon housing complying with safety standards. Gold-plated brass contacts ensure low resistance and long service life. Positive latch mechanism offers secure mating and prevents accidental disconnection.

Right angle through-hole design enhances PCB assembly stability. Designed for wire-to-board connection systems with PCB retention locks. Operates reliably between -20°C and 85°C for various applications. Supports up to 600V and 9.5A current for electrical performance.

Compatible with Mini-Universal MATE-N-LOK plug and socket housings.

This Mini-Universal MATE-N-LOK connector series from TE Connectivity provides a versatile and durable solution for electronic component assemblies in laboratory, manufacturing, industrial, and commercial electrical applications. Its detailed design and certifications ensure that it meets stringent requirements for safety and performance. Explore more PCB headers and connectors at EnvMart for your electronic assembly needs.
