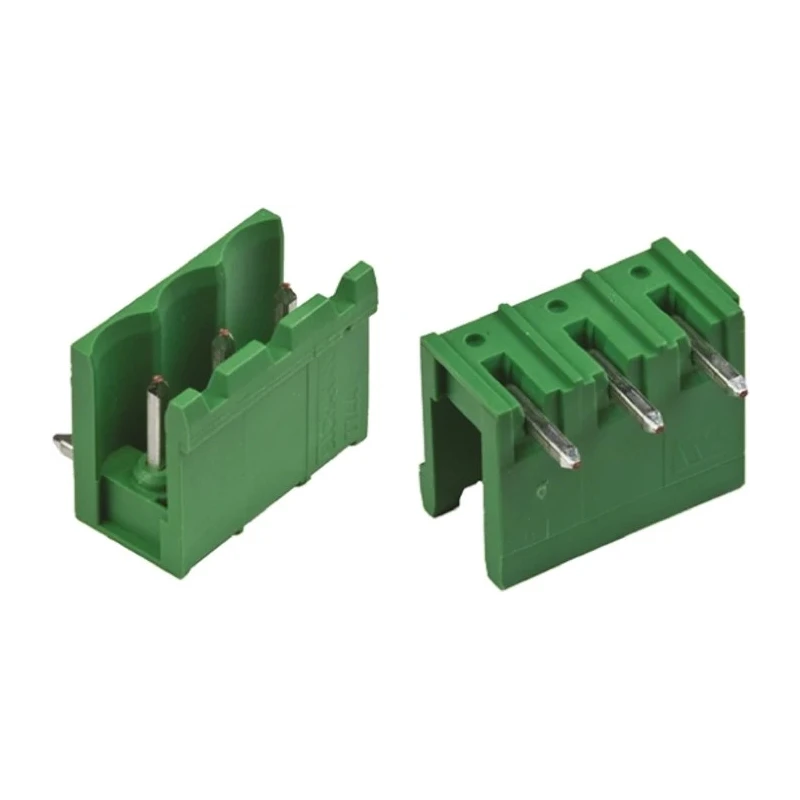

TE Connectivity Buchanan Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300V, 15A, Glass Filled 282814-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300V, 15A, Glass Filled 282814-3

Name: TE Connectivity Buchanan Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300V, 15A, Glass Filled 282814-3
Brand: TE Connectivity
SKU: 217867
Price: 1.52 USD
Availability: InStock



Category Pluggable Terminal Block Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	TE Connectivity
Colour	Green
Orientation	Right Angle
Current	15A
Model	282814-3
Housing Material	Glass Filled Polyamide
Series	Buchanan
Number of Rows	1
Pitch	5.08mm
Number of Contacts	3
Connector Gender	Female
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	3mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	30AWG
Wire Connection Method	Solder

Key Features

Operates at 300 volts and supports a current of 15 amps.
Constructed with green glass filled polyamide housing for durability.
Features a female connector orientation and solder wire connection method.
Supports wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
Single row configuration with right angle orientation for PCB mounting.
Mates with compatible plugs for versatile assembly.

Product Description

TE Connectivity 282814-3 is a Buchanan Series pluggable terminal block engineered for industrial and electronic applications requiring secure and efficient PCB connections. It features a 3-contact configuration with a 5.08 mm pitch and a single row layout, ideal for compact assembly and space-saving designs.

This terminal block supports electrical loads up to 15 amps with 300 volts rating, ensuring reliable performance in control panels, circuit boards, and power supply units. The housing is made from glass filled polyamide 6.6 GF, providing excellent mechanical strength, thermal stability, and resistance to industrial environments.

The connector gender is female with a right angle orientation to facilitate soldered wire connection methods, compatible with a range of wire sizes from fine 0.05 mm² (30 AWG) up to robust 3 mm² (12 AWG) conductors. Its green color coding assists in quick identification during assembly and maintenance.

Constructed with tin-plated phosphor bronze contacts, the terminal block offers corrosion resistance and long service life. It complies with standard UL 94V-0 for flammability, ensuring safety and compliance in electrical installations.

This product is widely used in industrial automation, electronic device assembly, manufacturing equipment, power distribution units, and HVAC control systems. It mates seamlessly with specified plugs to form secure two-part terminal block assemblies.

Operates safely at 300 volts and 15 amps load. Durable glass filled polyamide housing material. Right angle female connector with solder connection. Supports wire sizes 0.05mm² to 3mm² (30 AWG to 12 AWG). Single row, 3 contact design with 5.08 mm pitch.

This TE Connectivity Buchanan Series Pluggable Terminal Block model 282814-3 is a reliable component choice in electronics and industrial circuits. Explore more terminal block solutions and accessories in the Electronics Components category at EnvMart.
