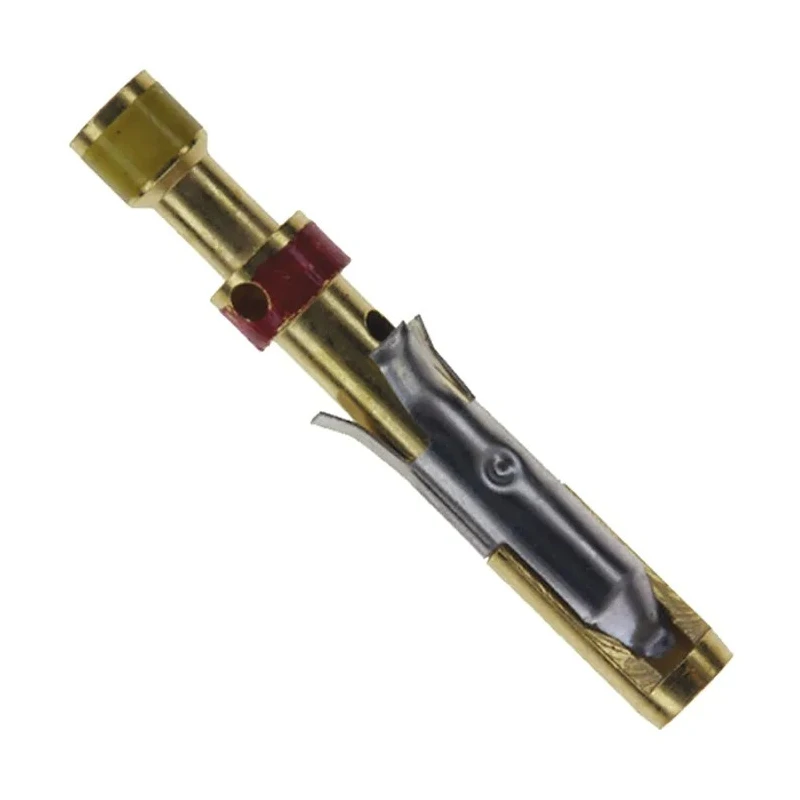

TE Connectivity Type II Series Female Crimp Terminal, Gold Plated Brass, 24 AWG Min, 20 AWG Max, 13A Current 201580-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 20.19mm |
| Model | 201580-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Type II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | G Series and M Series Connector Housings, CPC |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- The terminal is made of brass with gold plating to ensure reliable conductivity and corrosion resistance.
- It supports a current rating of 13 amperes for robust electrical performance.
- The crimp termination type ensures secure and durable wire connections.
- Operating temperature ranges from -55°C to 105°C making it suitable for diverse environments.
- Its compact length of 20.19mm aids in space-constrained applications.
- Compatible with CPC connector series for versatile wiring solutions.
- No additional standards or approvals are specified for this product.
Product Description
TE Connectivity 201580-1 type II series female crimp terminal is expertly engineered for electronic component and power connector applications. It is specifically designed to be used with G Series and M Series connector housings within the CPC range, making it ideal for industrial, manufacturing, and electronic assembly environments where secure and reliable electrical connections are critical.
Constructed from brass with gold plating, this crimp terminal offers excellent conductivity and resistance to corrosion, prolonging the lifespan of connections. The terminal supports wire cross-sections from 0.2mm² to 0.6mm², equivalent to 24 AWG to 20 AWG, providing flexibility for various wire gauges used in signal and power transmission.
Rated for a continuous current of 13 amperes and able to operate in a temperature range between -55°C and 105°C, the terminal is suitable for demanding environmental conditions, including temperature extremes encountered in industrial and commercial electrical systems.
The crimp termination ensures a strong mechanical and electrical bond between the wire and terminal, reducing the risk of connection failure. At 20.19mm in length, the compact form factor facilitates integration into assemblies with limited space.
Gold plated brass material provides reliable electrical performance and corrosion resistance. Supports wire sizes from 24 AWG (0.2mm²) to 20 AWG (0.6mm²) for versatile usage. Crimp type termination offers a secure and durable connection.
Operates effectively within -55°C to 105°C temperature range. 13 ampere current rating suits various electronic and power applications. Compatible with TE Connectivity's CPC range connector housings. Manufactured to TE Connectivity quality standards ensuring consistent performance.
This type II series female Crimp Terminal is suitable for electronic assembly, industrial control panels, automotive electronics, and electrical distribution systems where high reliability is essential. It complements a broad range of connector housings in the TE Connectivity portfolio to enable customized and efficient wiring solutions.
Explore the full range of electronic components and crimp contacts on EnvMart for comprehensive system building and component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal supports a current rating of 13 amperes, making it suitable for various electronic and power applications.
It is compatible with wire sizes ranging from 24 AWG (0.2mm²) to 20 AWG (0.6mm²).
The length of this crimp terminal is 20.19mm, which aids in space-constrained applications.
The terminal is made of brass with gold plating, ensuring reliable conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 105°C, suitable for demanding environments.
This model is designed for use with G Series and M Series connector housings within the CPC range.
It features a crimp termination type, ensuring a secure and durable connection between the wire and terminal.
It is suitable for electronic assembly, industrial control panels, automotive electronics, and electrical distribution systems.
This crimp terminal is female, designed to connect with corresponding male terminals.
The gold plating provides excellent conductivity and resistance to corrosion, enhancing the reliability of electrical connections.
The terminal is manufactured in India.
This terminal belongs to the Type II series by TE Connectivity.
