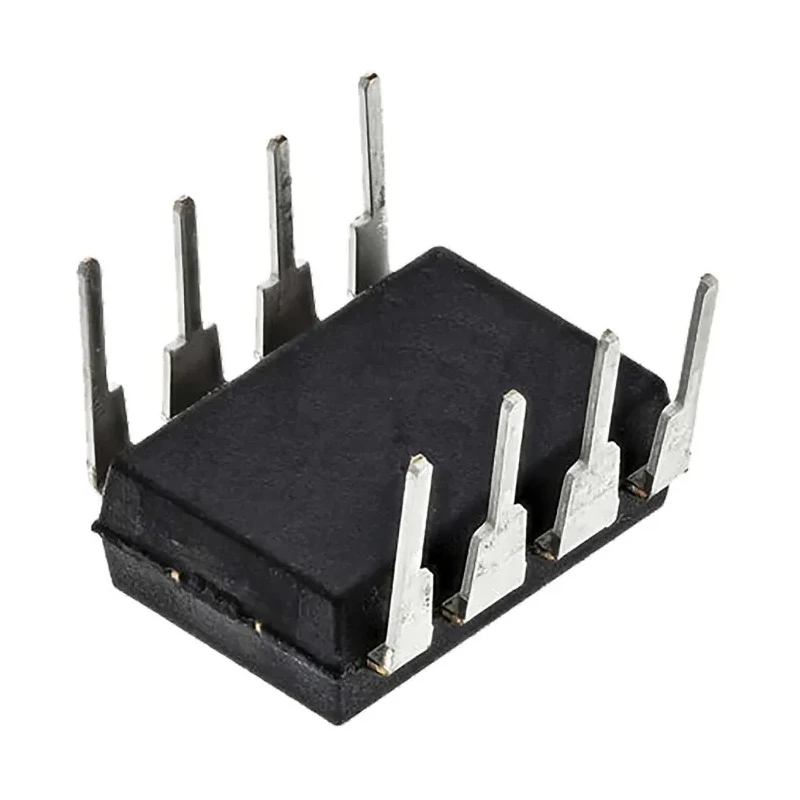

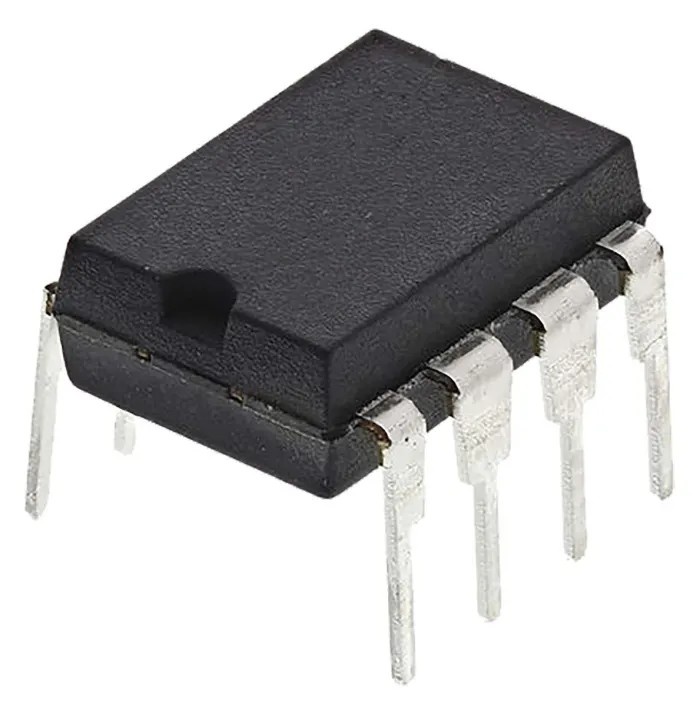

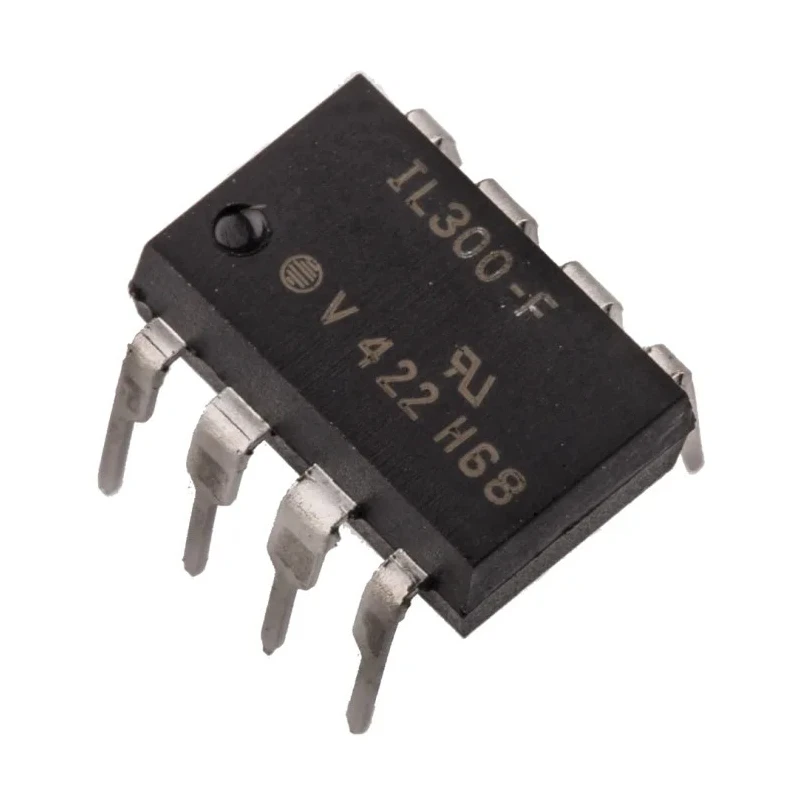

Vishay DC Input Optocoupler Through Hole 8-Pin PDIP IL300-EF

Vishay IL300-EF is a DC input optocoupler designed with a through hole mount style and 8-pin PDIP package, delivering dependable electrical isolation and signal transmission in electronic circuits.

It features a maximum forward voltage of 1.5 volts and supports a single channel with DC input current type. The typical rise and fall times of 1.75 microseconds ensure rapid and efficient switching performance.

This linear optocoupler provides a robust isolation voltage of 5300 volts AC, making it suitable for demanding industrial and commercial applications requiring high voltage isolation.

The device operates reliably across a broad temperature range from -55°C to 100°C, supporting usage in diverse environmental conditions. Supplied in tube packaging and housed in a PDIP package, it facilitates easy insertion into PCB through hole mounts for manufacturing efficiency.

This optocoupler supports one channel for signal transfer. Maximum input current rating is 60mA to safely handle electrical loads. It meets stringent standards such as UL, cUL, BSI, and VDE 0884-5, ensuring quality and compliance.

Ideal for industrial, commercial, and laboratory electronic design applications requiring precise isolation and signal transfer. Explore more Vishay Optocouplers and electronic components in the Electronics & Electricals category at EnvMart for reliable and high-quality solutions.
