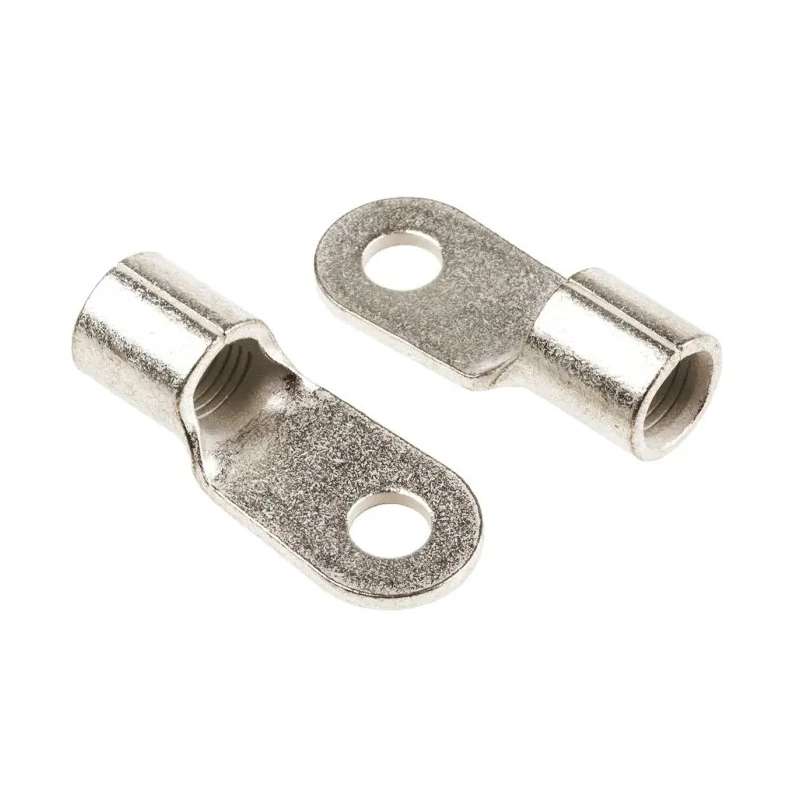

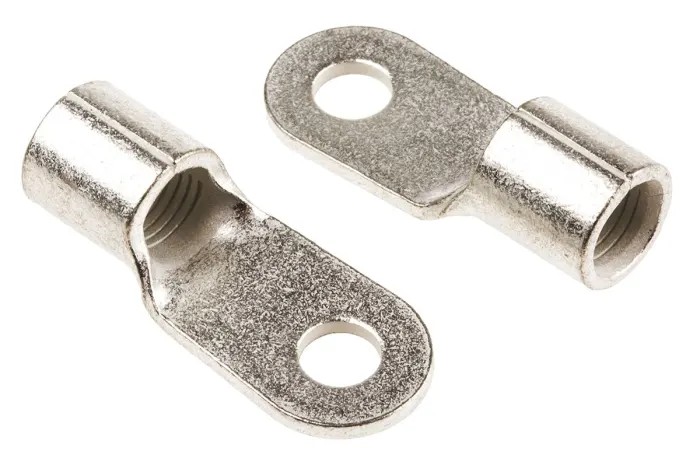

RS PRO Solistrand Uninsulated Crimp Ring Terminal M5 Stud Size 6 AWG Wire Size 130552

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Solistrand Uninsulated Crimp Ring Terminal M5 Stud Size 6 AWG Wire Size 130552

Name: RS PRO Solistrand Uninsulated Crimp Ring Terminal M5 Stud Size 6 AWG Wire Size 130552
Brand: RS PRO
SKU: 217638
Price: 2.12 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
THICKNESS	1.45mm
Model	130552
Insulation	Uninsulated
Overall Length	29.7mm
Contact Material	Copper
Series	Solistrand
Maximum Operating Temperature	170°C
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	10.5mm²
Maximum Wire Size mm²	16.8mm²
Minimum Wire Size AWG	6AWG
Outer Ring Diameter	11.9mm
Inner Ring Diameter	5.25mm
Stud Size	M5

Key Features

Constructed from fine grade high conductivity copper for optimal electrical performance.
Electro tin plating enhances corrosion resistance ensuring durability.
Uninsulated design suitable for varied industrial electrical applications.
Bell-shaped barrel mouth facilitates quick and easy wire insertion saving installation time.
Brazed seams provide increased barrel strength for harsh environment use.
Dimpled and serrated barrel increases tensile strength and improves electrical contact.
Maximum operating temperature rating of 170°C suitable for standard and demanding applications.
Ideal for use with 6 AWG wire and M5 stud size ensuring compatibility.

Product Description

TE Connectivity 130552 Solistrand uninsulated crimp Ring Terminal with M5 stud size and 6 AWG wire size provides a dependable solution for terminating solid and stranded wires in a wide array of industrial and commercial electrical installations.

Manufactured from fine grade high conductivity copper, this crimp terminal ensures optimal electrical performance. Electro tin plating safeguards the contact surfaces against corrosion, extending terminal life in challenging environments. Its uninsulated construction is designed for applications where insulation is either unnecessary or provided elsewhere in the system.

The robust construction includes brazed seams enhancing barrel strength and a bell-shaped mouth that allows effortless wire insertion, significantly reducing installation time. The barrel’s inner surface is serrated and dimpled, increasing tensile strength and maximizing contact area for superior electrical conductivity.

Rated for a maximum operating temperature of 170°C, this terminal fits 6 AWG wire sizes and M5 stud sizes, making it compatible with various system designs. This product is RoHS compliant, confirming its adherence to environmental safety standards.

Typical applications include materials handling equipment, motors, heavy machinery, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation control.

Fine grade copper construction for high conductivity. Corrosion-resistant electro tin plating. Uninsulated design for versatile use. Effortless wire insertion with bell-shaped barrel. Enhanced barrel strength due to brazed seams.

Increased contact area due to serrated barrel interior. 170°C maximum operating temperature rating. Designed for 6 AWG wire and M5 stud size. RoHS compliant for environmental safety. Applicable in industrial, commercial, and telecommunications sectors.
