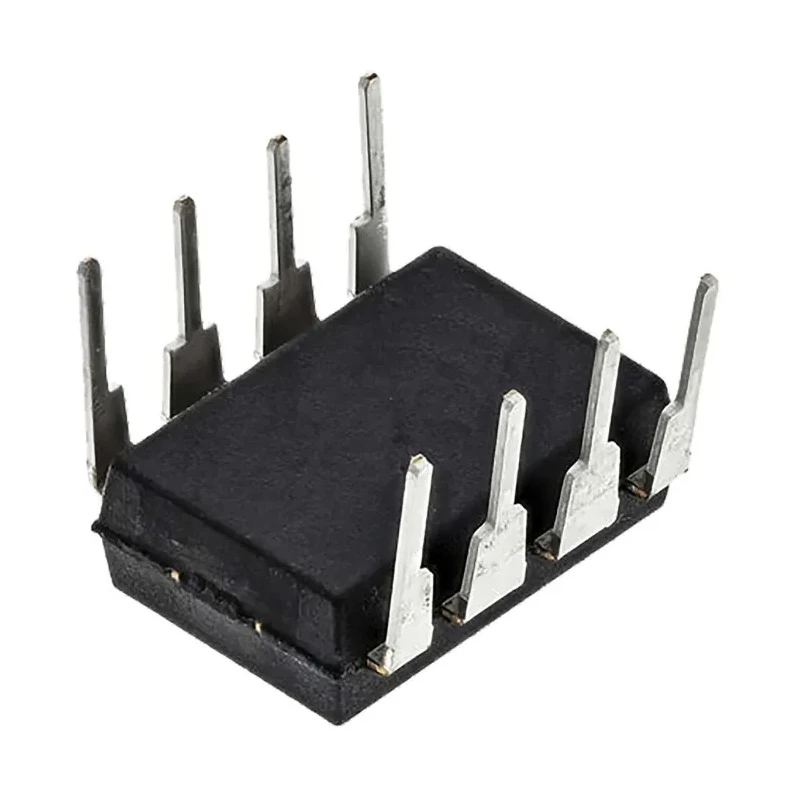

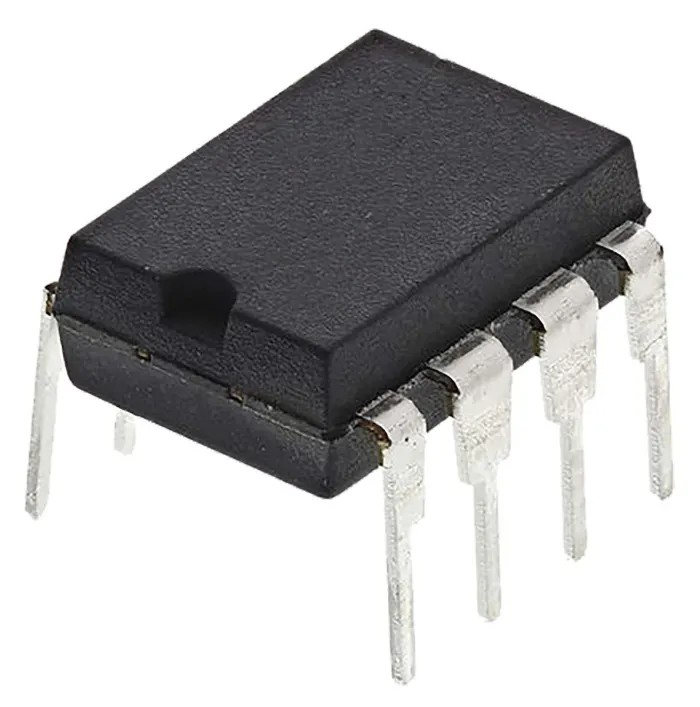

Vishay DC Input Optocoupler, Through Hole, 8-Pin PDIP IL300-DEFG

Vishay IL300-DEFG is a precision DC input optocoupler housed in an 8-pin PDIP package designed for through-hole mounting. This linear optocoupler features a single input channel with a maximum forward voltage of 1.5V and can handle an input current up to 60mA. It provides an isolation voltage rating of 5300V AC, making it suitable for high-voltage applications requiring signal isolation.

The device operates over a wide temperature range from -55°C to 100°C, ensuring reliability in harsh industrial and electronic environments. Featuring typical rise and fall times of 1.75 microseconds, the IL300-DEFG supports fast signal transfer critical for instrumentation and measurement applications.

This optocoupler is compliant with international standards including UL, cUL, BSI, and DIN EN 60747-5-5 (VDE 0884-5), meeting stringent safety and quality requirements. The product packaging in tape & reel format facilitates efficient automated insertion processes in manufacturing.

Key utilization areas include industrial automation, medical instrumentation, HVAC control, power supplies, and other electronic applications where galvanic isolation and signal integrity are paramount.

Supports DC input current type for effective signal transmission. Maximum forward voltage of 1.5 volts ensuring low power loss. Isolation voltage rated at 5300 volts AC for superior electrical isolation. Operating temperature range from -55°C to 100°C for versatile environments.

Typical rise and fall times of 1.75 microseconds for rapid switching. Package type is PDIP with 8 pins suitable for through-hole mounting. Single channel optocoupler for isolated signal transfer. Packaged in tape & reel format for automated assembly line efficiency.

UL, cUL, BSI, and DIN EN 60747-5-5 (VDE 0884-5) compliant for international safety standards.

Choose Vishay IL300-DEFG for high-precision industrial and electronic applications requiring reliable electrical isolation and fast DC signal response. Explore EnvMart categories for a wide selection of Optocouplers and electronic components.
