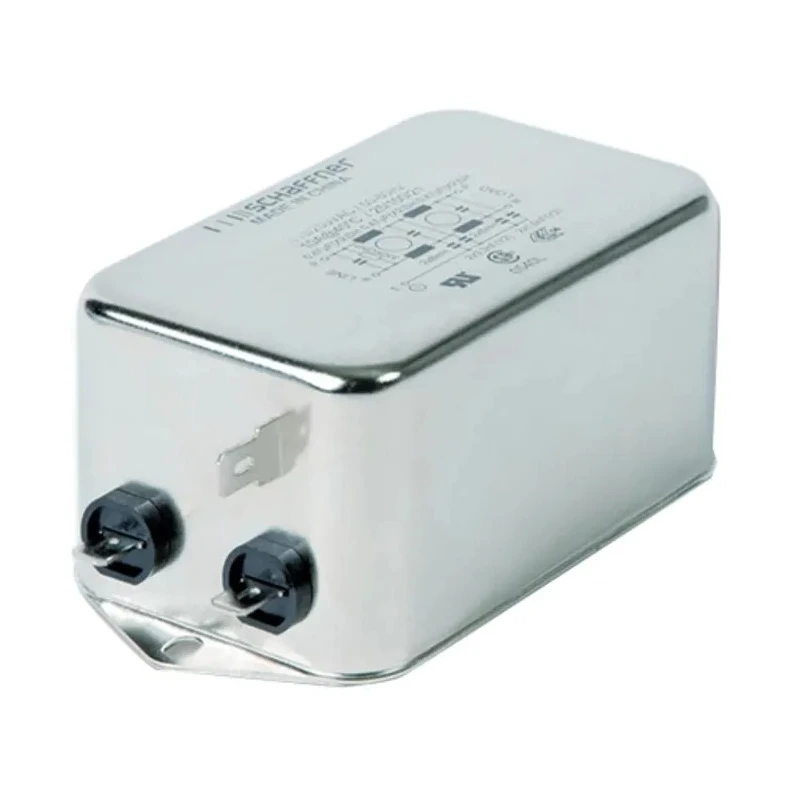

Schaffner Chassis Mount 1 Phase EMI Filter 16A 250V AC/DC 0Hz-400Hz Fast-On Termination FN2090

Schaffner FN2090 is a high-performance chassis mount EMI filter designed for single-phase electrical applications. Rated for a maximum current of 16A and voltage of 250V AC/DC, this filter operates effectively from 0Hz to 400Hz. It includes a two-stage circuit that ensures superior differential and common-mode noise attenuation, minimizing electromagnetic interference in sensitive equipment.

The device incorporates a capacitance of 10nF and an inductance of 4mH, balancing filtering characteristics with minimal insertion loss. Its fast-on termination aids quick installation onto chassis systems, making it ideal for industrial, medical, consumer goods, and electronic data processing environments.

With a wide operating temperature range from -25°C to 100°C, the FN2090 series promises reliable performance under diverse environmental conditions. The compact form factor dimensions are 57.5mm (length) by 113.5mm (depth) by 45.4mm (height), facilitating integration into constrained spaces.

Additional key technical parameters include a leakage current of 1.02mA and resistance rated at 220kΩ, meeting demanding filter specifications without compromising efficiency.

Typical use cases include equipment filtration in building automation, machinery, medical instrumentation, office automation, and consumer electronics, where stringent EMI reduction is essential to comply with regulatory standards and maintain operational integrity.

Designed for easy chassis mounting with fast-on connectors. Two-stage filter for superior EMI attenuation. Robust electrical ratings suitable for industrial and commercial applications. Compact and durable design ensures installation flexibility.

Supports frequency operation from DC (0 Hz) to 400 Hz. Ensures compliance in noisy electrical environments. Widely used in electronic, medical, and communication devices. Explore a broad range of EMI Filters and related electrical components to optimize your design and maintenance projects in the Electronics & Electricals category on EnvMart.
