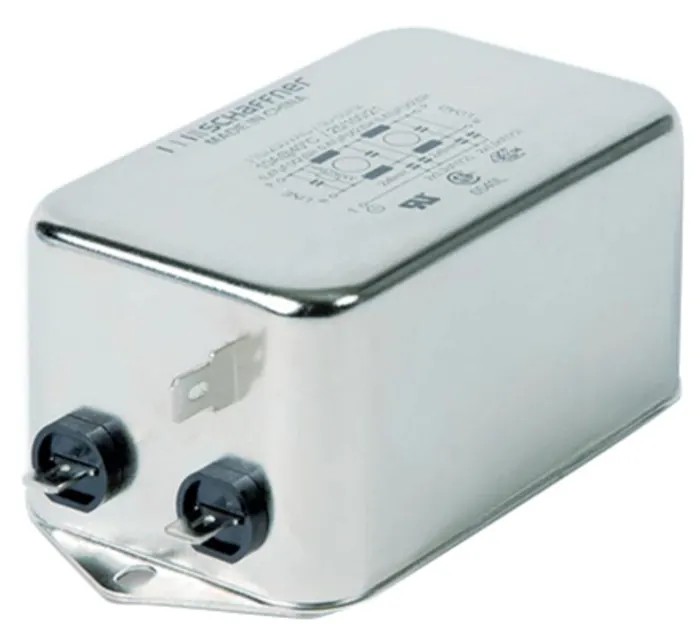

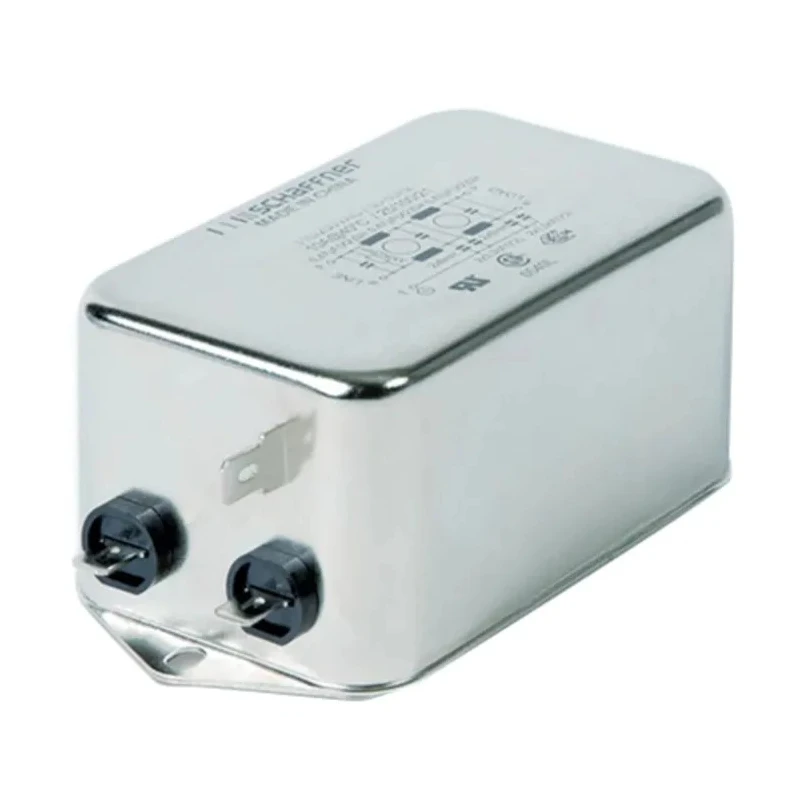

Schaffner Power Line EMI Filter 3A 250V ac/dc 0Hz-400Hz Chassis Mount Fast-On 1 Phase FN2090
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 30.3mm |
| Length | 54mm |
| Model | FN2090 |
| Depth | 85mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 0, 400Hz |
| Series | FN2090 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 470kΩ |
| Capacitance | 330nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 14mH |
| Termination Style | Fast-On |
Key Features
- Supports maximum current of 3 Amperes and voltage of 250V ac/dc.
- Operating frequency range from 0 Hz to 400 Hz enhances performance in diverse applications.
- Features fast-on termination style for quick and secure connections.
- Compact dimensions of 54mm length, 85mm depth, and 30.3mm height.
- Constructed to operate within a temperature range of -25°C to 100°C.
- Provides excellent noise attenuation with 14mH inductance and 330nF capacitance.
- Leakage current rated at 500μA ensuring safety compliance.
- Designed for integration in electronic equipment requiring EMI suppression.
Product Description
Schaffner FN2090 is a highly reliable EMI Filter designed for power line applications, providing a maximum current rating of 3A and operating voltage up to 250V ac/dc. This product operates effectively within frequency ranges from 0 to 400 Hz, making it suitable for suppression of electromagnetic interference in sensitive electronic equipment.
This chassis mount filter includes a fast-on termination style, facilitating quick installation and connectivity in industrial and commercial environments. The compact size of 54mm in length, 85mm depth, and 30.3mm height ensures that it fits into limited spaces without compromising performance.
Key electrical characteristics include a two-stage filter design with inductance of 14mH and capacitance of 330nF, which deliver robust noise attenuation for conductive disturbances. Leakage current is minimized at 500μA, supporting compliance with electrical safety standards.
Operating temperatures range from -25°C to 100°C, enabling operation under varied environmental conditions. The resistance of 470kΩ contributes to the device's overall stability and durability.
Typical applications include electrical and electronic equipment, consumer goods, household appliances, building automation systems, machinery, medical instruments, communications equipment, and office automation. This makes the FN2090 filter an essential component in industrial, manufacturing, laboratory, and commercial settings requiring effective EMI suppression.
Supports maximum current of 3 Amperes. Operates at 250V ac/dc voltage rating. Two-stage chassis mount filter for 1-phase applications. Fast-On termination for reliable connection. Wide operating frequency range from 0 Hz to 400 Hz.
Compact dimensions suitable for limited spaces. Leakage current of 500μA for safety compliance. High inductance and capacitance for effective noise attenuation. Suitable for diverse industrial and electronic applications.
Explore more EMI Filters and power line filter solutions on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN2090 EMI filter supports a maximum current rating of 3 Amperes.
This model operates at a maximum voltage of 250V ac/dc.
It operates effectively within a frequency range from 0 Hz to 400 Hz.
The dimensions are 54mm in length, 85mm in depth, and 30.3mm in height.
The FN2090 features a fast-on termination style for quick and secure connections.
It has an inductance of 14mH and a capacitance of 330nF, providing effective noise attenuation.
The leakage current is rated at 500μA, ensuring safety compliance.
It is designed to operate within a temperature range of -25°C to 100°C.
This unit has a two-stage filter design.
It is suitable for various applications including electrical and electronic equipment, consumer goods, and medical instruments.
The country of origin for this model is Thailand.
The resistance of this model is rated at 470kΩ.
