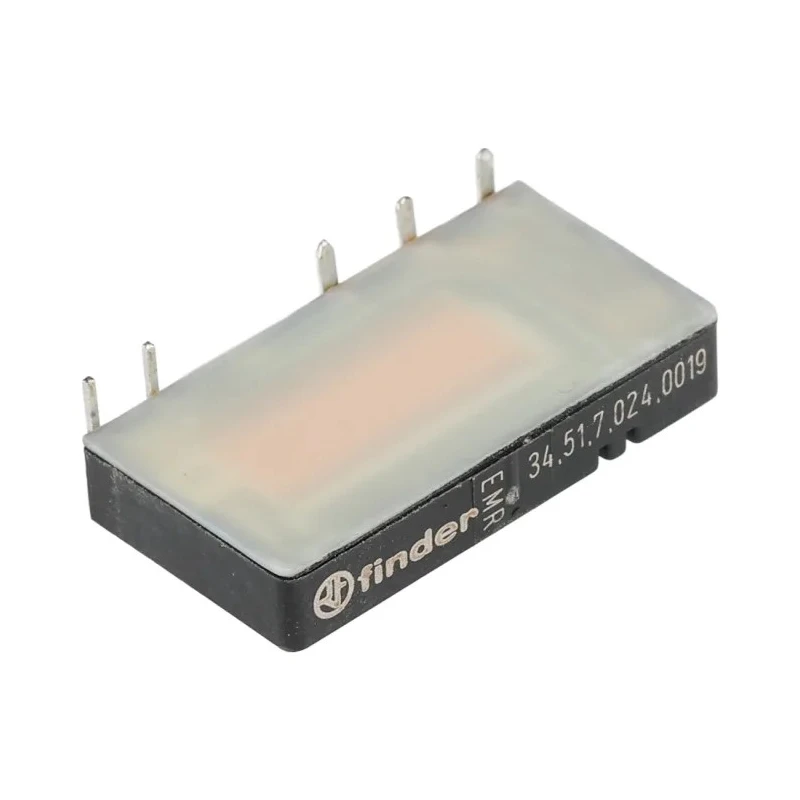

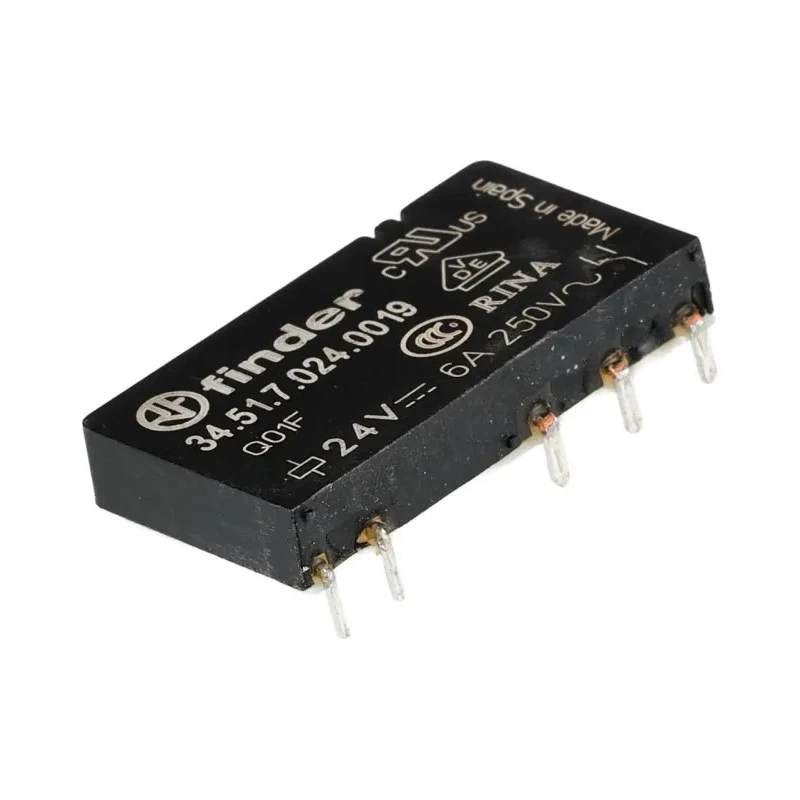

Finder PCB Power Relay 24V DC Coil 6A Switching Current SPDT 34.51.7.024.0019

Finder 34.51.7.024.0019 is a high-quality PCB Power Relay featuring a 24V DC coil voltage and capable of switching currents up to 6A. Designed primarily for PCB mounting, this relay provides efficient electro-mechanical switching for automation, electrical, and control applications.

The relay comes equipped with an SPDT (Single Pole Double Throw) contact configuration, providing versatility in circuit switching needs. The compact dimensions of 28mm length, 5mm width, and 15mm height allow for straightforward integration into printed circuit boards. Its through hole terminal design assures robust mechanical stability and reliable electrical contact.

The relay’s coil is designed for low power consumption at just 170mW, contributing to energy-efficient system designs. The silver alloy contacts ensure extended durability and reduce electrical wear over long operational cycles. This relay supports switching voltages up to 400V AC and 60V DC allowing use in a broad range of voltage environments.

Operational temperature ranges from -40°C to +85°C, enabling use in diverse industrial settings including bottling and packaging machinery, timers, lighting control systems, labelling machines, burners, boilers, furnaces, and programmable controllers for automated processes. It is suitable for industrial, manufacturing, commercial, and HVAC applications where reliable switching is critical.

SPDT contact configuration for versatile switching applications. 6A switching current capacity for robust operation. Compact PCB-mount design with through hole terminals. Low coil power consumption of 170mW enhances energy efficiency.

Silver alloy contacts for enhanced lifespan and reliability. Wide operating temperature range from -40°C to +85°C. High switching voltages supported: up to 400V AC and 60V DC. Explore the wide range of Power Relays and electrical components available on EnvMart to support your industrial and automation needs.
