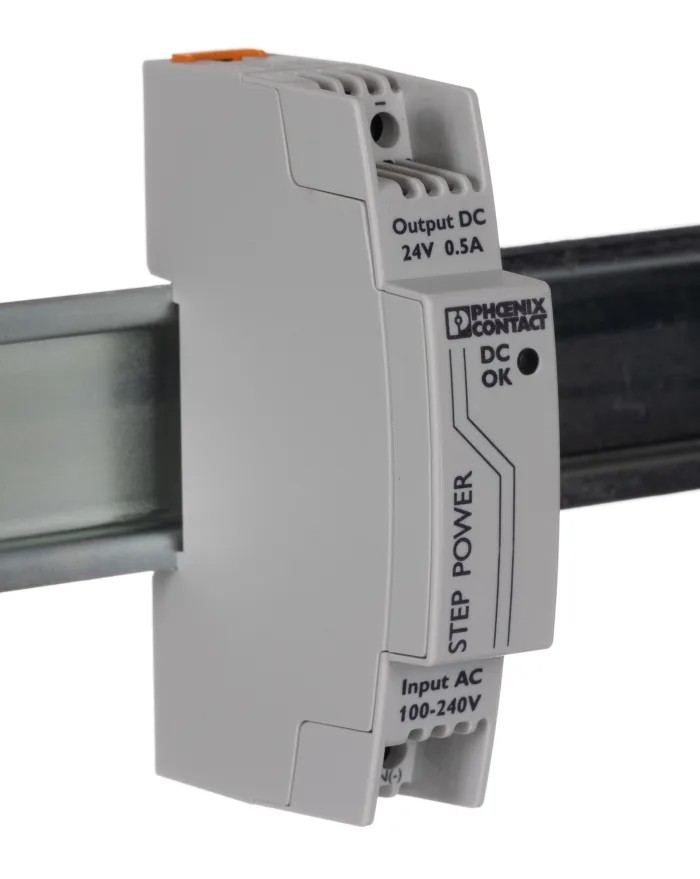

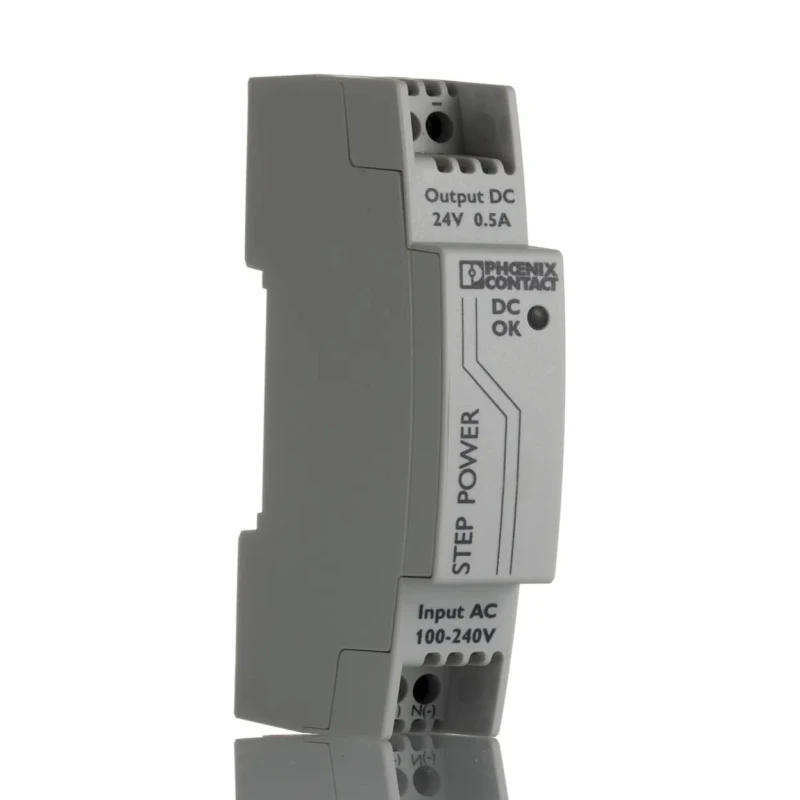

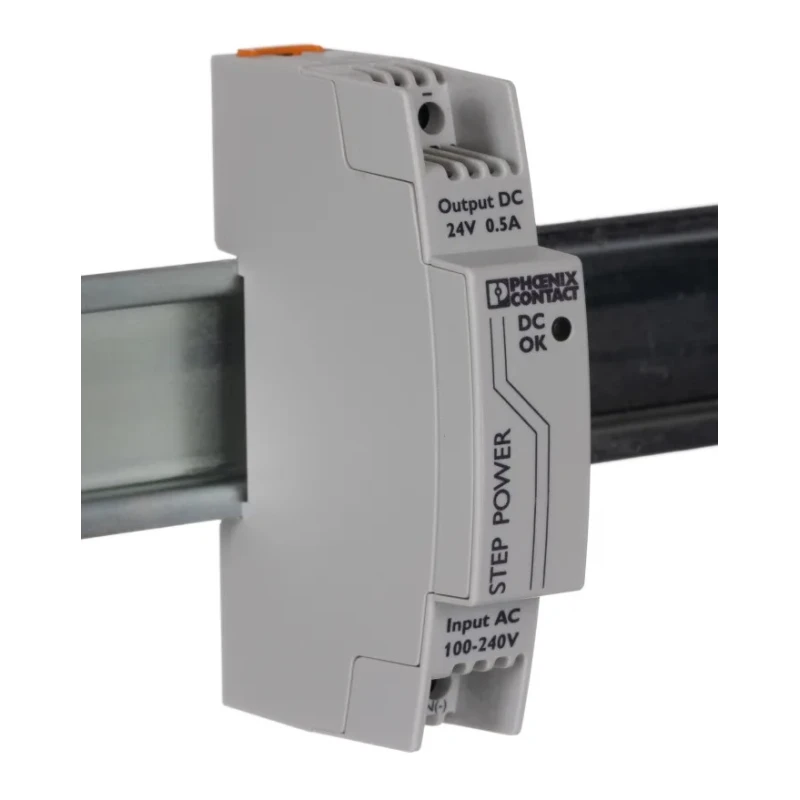

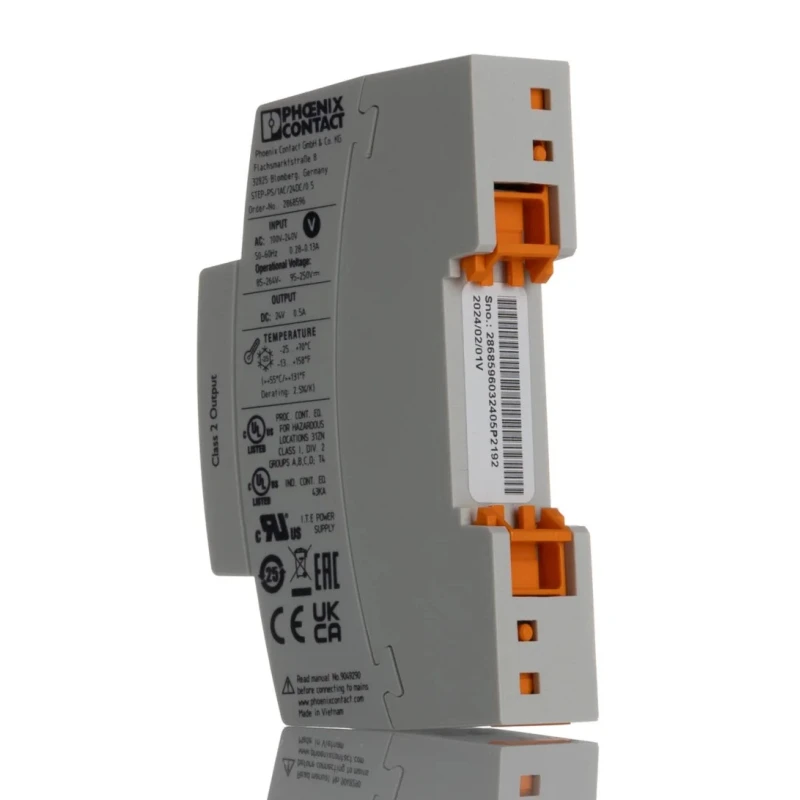

Phoenix Contact STEP POWER Switched Mode DIN Rail Power Supply 264V AC Input 24V DC, 500 mA Output, 12W 2868596
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Phoenix Contact |
| Power | 12W |
| Efficiency | 84% |
| Height | 90mm |
| Model | 2868596 |
| Depth | 90mm |
| IP Rating | IP20 |
| Width | 18mm |
| Series | STEP POWER |
| Output Current | 500mA |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | EN 50121-4 |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
| Conformance with EMC Directive 2014/30/EU and EN 61000-6-2 | 2005 means you can expect minimal disruption from EMI |
Key Features
- Designed for rail mounting with compact size at 90mm height, 18mm width, and 90mm depth.
- Wide AC input voltage range from 85V to 264V ensures compatibility with various power grids.
- High efficiency of 84% reduces power loss and heat generation during operation.
- Output accuracy of ±1% supported for stable and precise voltage delivery.
- IP20 rated enclosure for safe indoor mounting environments.
- Operating temperature range from -25°C to 70°C meets diverse industrial requirements.
- Compliance with EN 50121-4 certifies suitability for rail applications and EMC directives.
- Built-in protection against surges, shock, and vibration for industrial reliability.
Product Description
Phoenix Contact 2868596 STEP POWER Switched Mode DIN Rail Power Supply offers a reliable 12W output at 24V DC and 500 mA current, designed specifically for industrial rail mounting applications. This power supply accommodates a wide AC input voltage from 85V to 264V, making it suitable for worldwide use. Featuring high efficiency at 84%, it minimizes heat generation and energy loss.
The compact module measures 90mm in height, 18mm in width, and 90mm in depth, making installation feasible in tight panel spaces. Its IP20 rating protects it from accidental contact and solid object ingress in controlled environments. The device operates efficiently within temperatures ranging from -25°C to 70°C, fitting various industrial conditions.
The output voltage maintains a tight accuracy of ±1%, ensuring stable and precise power delivery vital for sensitive equipment and automation systems. It includes insulation voltage rating of 4 kV AC compliant with DIN VDE 0100-410 and EN 50178 standards, adding surge protection and electrical safety.
The power supply is shock and vibration resistant according to IEC 60068-2, designed to withstand harsh conditions near moving machinery. Its compliance with EMC Directive 2014/30/EU and EN 61000-6-2:2005 guarantees minimal electromagnetic interference, enhancing device reliability in complex industrial environments.
Certified for rail usage under EN 50121-4, this power supply is ideal for transport and automation sectors requiring ruggedized, dependable power sources. The single output design delivers a consistent DC supply, suitable for control panels, industrial automation, and electronic equipment.
Designed for rail mounting with compact size at 90mm height, 18mm width, and 90mm depth. Wide AC input voltage range from 85V to 264V ensures compatibility with various power grids. High efficiency of 84% reduces power loss and heat generation during operation.
Output accuracy of ±1% supported for stable and precise voltage delivery. IP20 rated enclosure for safe indoor mounting environments. Operating temperature range from -25°C to 70°C meets diverse industrial requirements. Compliance with EN 50121-4 certifies suitability for rail applications and EMC directives.
Built-in protection against surges, shock, and vibration for industrial reliability. Single output channel providing consistent DC power for automation and control systems.
Available for use in industrial automation, railway signaling systems, control panels, and manufacturing equipment. Explore more power supplies suitable for your applications at EnvMart’s Electronics & Electricals categories.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a consistent output of 24V DC at 500 mA current, delivering a total power of 12W.
It features a high efficiency rating of 84%, which helps to minimize power loss and heat generation during operation.
The unit measures 90mm in height, 18mm in width, and 90mm in depth, making it suitable for installation in tight spaces.
It accommodates a wide AC input voltage range from 85V to 264V, ensuring compatibility with various power grids.
It has an IP20 rated enclosure, providing protection against accidental contact and solid object ingress in controlled environments.
It complies with EN 50121-4 for rail applications and meets the EMC Directive 2014/30/EU and EN 61000-6-2:2005 for minimal electromagnetic interference.
This model features a single output channel, providing a consistent DC supply for various applications.
It includes built-in protection against surges, shock, and vibration, enhancing reliability in industrial environments.
The insulation voltage rating is 4 kV AC, compliant with DIN VDE 0100-410 and EN 50178 standards, ensuring electrical safety.
It is suitable for industrial automation, railway signaling systems, control panels, and manufacturing equipment.
