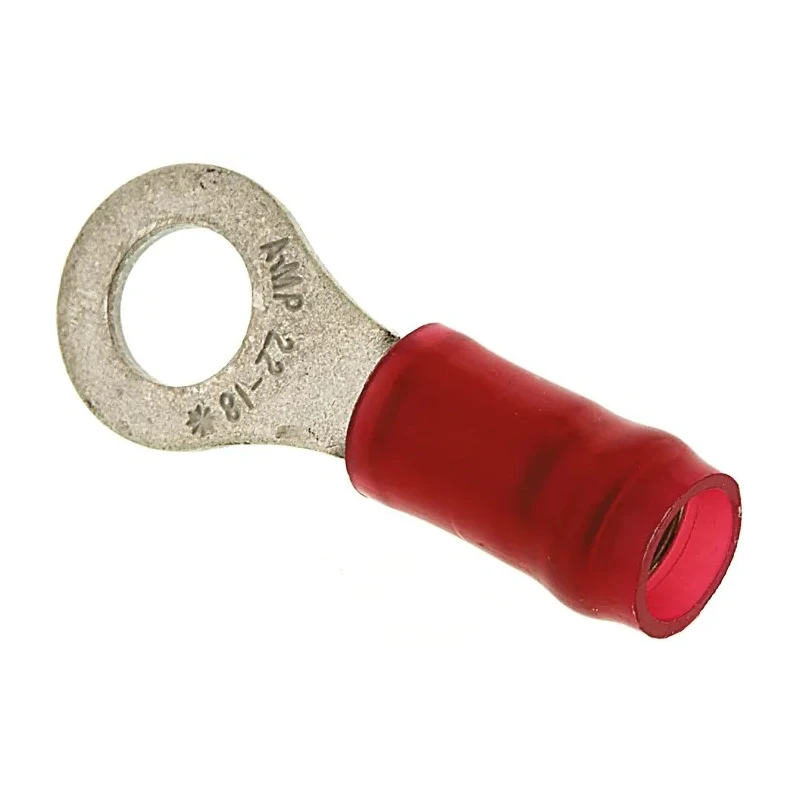

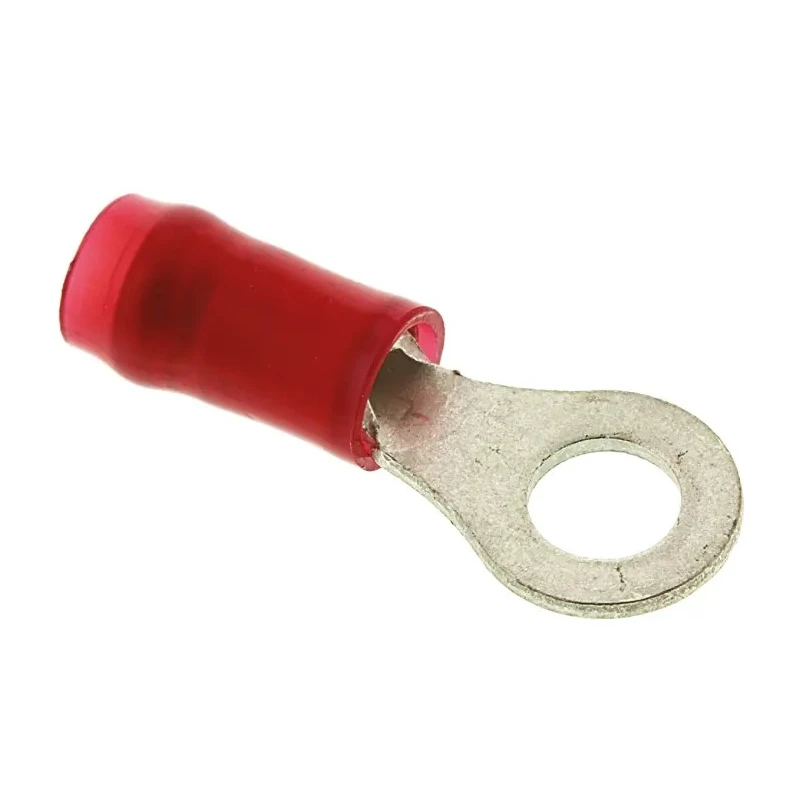

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG 16 AWG Wire Size Red 31890

TE Connectivity 31890 PIDG Insulated Ring Terminal is engineered for uniform reliability in demanding circuit environments, featuring a high conductivity copper body with tin plating for enhanced electrical and mechanical performance. This M4 stud size terminal accepts wires from 22 AWG to 16 AWG and includes a nylon outer sleeve colored red for quick wire size identification.

The terminal's wire barrel incorporates serrations to ensure maximum contact and tensile strength after crimping while a copper sleeve inside enhances insulation support and prevents wire strand fraying. Its funnelled entry design facilitates fast and reliable wire insertion during high-speed production.

PIDG ring terminals from TE Connectivity are constructed for robust, consistent crimps, utilizing specialized dies that optimize contact integrity. Their range of sizes and configurations make them ideal for a broad spectrum of industrial, laboratory, automotive, aerospace, HVAC, manufacturing, and power distribution applications.

Constructed from high conductivity copper for optimal electrical performance. Nylon insulation sleeve offers enhanced durability and wire size identification. Features serrations in the wire barrel to maximize contact and tensile strength after crimping.

Copper sleeve inside barrel supports improved wire insulation and prevents fraying. Designed with funnelled wire entry for easy and fast wire insertion. Suitable for use in instruments, lighting, power supplies, panel boxes, and aerospace applications.

Meets or exceeds MIL-T-7928 Type II Class 1 and 2 standards for high reliability. Red color coding corresponds to wire sizes between 22 AWG and 16 AWG. Rated for maximum operating temperature up to 105°C. Provides uniform and dependable crimps when used with specialized tooling dies.

This PIDG Insulated Ring Terminal 31890, made in the United States, is a trusted component for electrical connection solutions requiring dependable, high-quality performance. Explore the Electronics & Electricals category on EnvMart for more TE Connectivity power connectors and wiring accessories.
