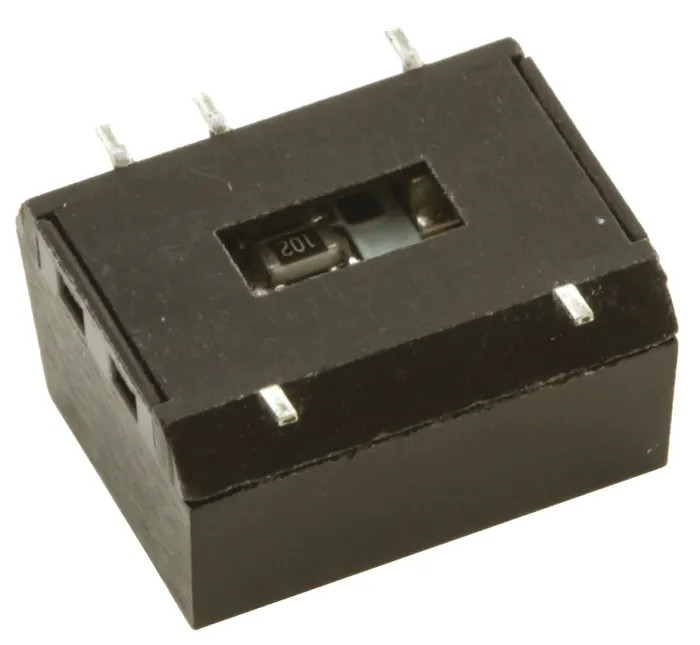

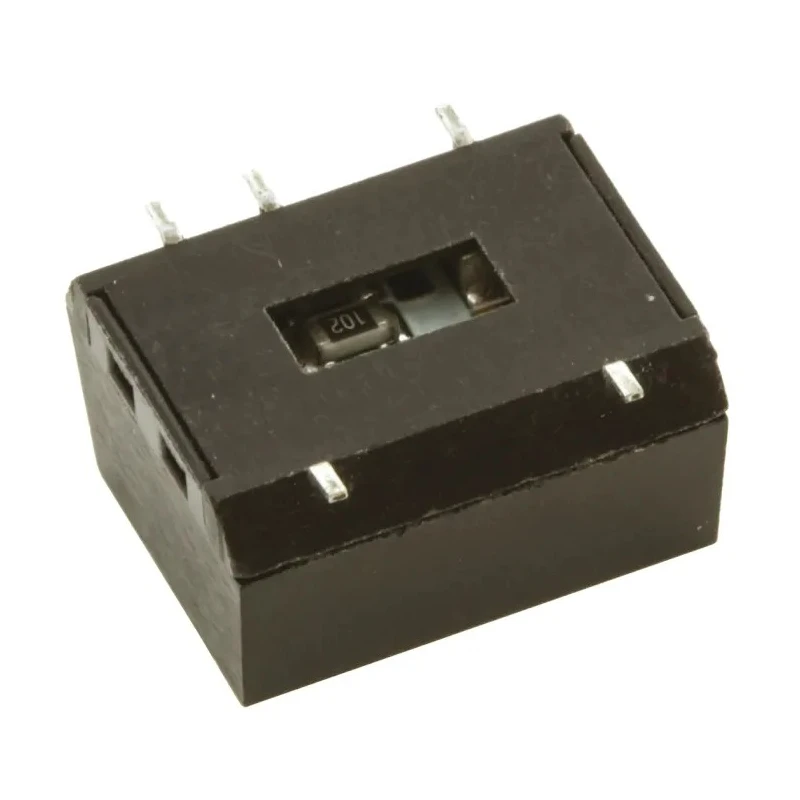

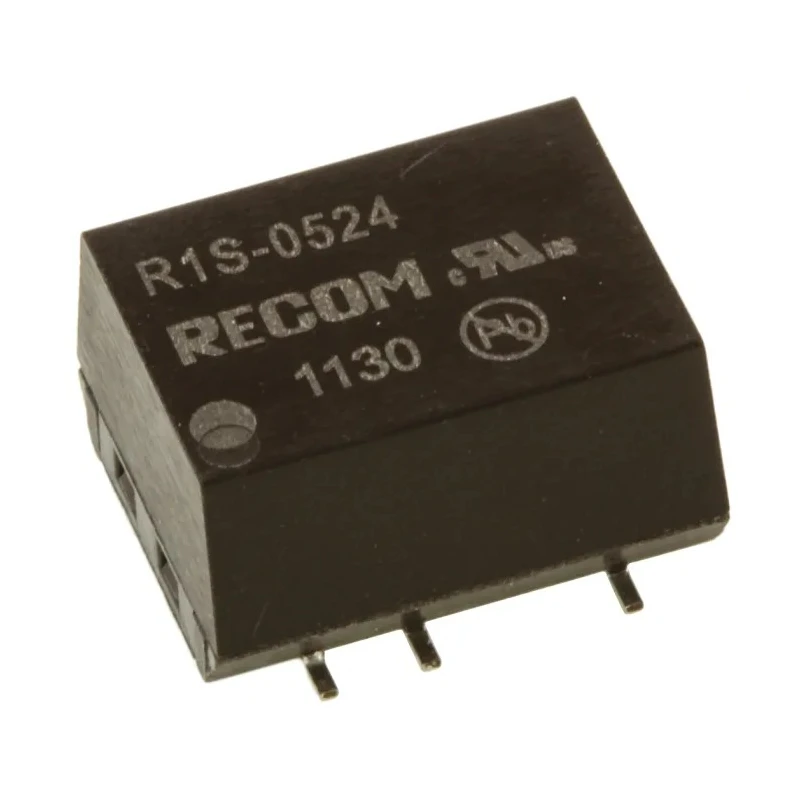

Recom DC/DC Converter 24V DC 42 mA 5V DC Input 4.5V Input 1 W Surface Mount 8-Pin R1S-0524
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R1S DC/DC Converter, 24V dc/ 42 mA, 5V dc In |
| Brand | Recom |
| Efficiency | 84% |
| Length | 12.75mm |
| Model | R1S-0524 |
| Depth | 6.7mm |
| Mount Type | Surface |
| Series | R1S |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 4275000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 42mA |
| Isolation Voltage | 1kV dc |
Key Features
- High efficiency up to 84% ensures reliable power conversion.
- Operates reliably between temperatures of -40°C to 100°C.
- Provides 1 kV DC isolation voltage for enhanced safety.
- Compact dimensions with 12.75mm length and 6.7mm depth suit PCB mounting.
- MTBF of 4,275,000 hours indicates excellent long-term reliability.
- Unregulated isolated DC-DC converter suitable for diverse industrial applications.
- Surface mount package type supports automated assembly processes.
- Operates within an input voltage range of 4.5V to 5V DC.
Product Description
The Recom R1S-0524 is a high-quality DC/DC converter designed for industrial and electronic component applications requiring isolated and efficient power conversion. It features a 24V DC output voltage delivering 42 mA current, with an input voltage range of 4.5V to 5V DC, making it suitable for precise voltage regulation tasks.
This 1W surface mount converter employs a robust 8-pin package, compact dimensions (12.75 mm length and 6.7 mm depth), and delivers efficient power conversion with up to 84% efficiency, ensuring minimal energy loss and heat generation. Its un-potted, open frame design supports maximum power output even at elevated temperatures up to 100°C ambient, providing dependable operation under demanding environmental conditions.
The R1S series offers 1 kV DC isolation voltage enhancing operational safety, along with built-in short circuit protection for system reliability. It boasts a high MTBF of 4,275,000 hours according to MIL-HDBK 217F at 25°C, assuring long operational life. While optimized for industrial PCB mounting, it finds uses in telecommunications, instrumentation, and power supply systems requiring stable isolated outputs.
High efficiency up to 84% minimizes power wastage. Wide operating temperature range from -40°C to 100°C suits harsh environments. 1 kV DC isolation voltage provides electrical safety. Compact form factor enables easy PCB mounting.
MTBF rating indicates excellent reliability and long lifespan. Surface mount package supports automated electronics manufacturing. Unregulated isolated output ensures clean power supply in electronic circuits. Supports industrial, laboratory, telecommunications, and control system applications.
Complies with UL60950-1 safety standards and certifications.
This Recom product is made in Taiwan, Province Of China, ensuring premium manufacturing quality. Suitable for engineers and designers needing reliable and efficient DC/DC conversion modules. Explore more in the DC/DC Converter category at EnvMart for related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1W.
It operates within an input voltage range of 4.5V to 5V DC.
This unit provides a 24V DC output voltage with a current of 42 mA.
It features an efficiency rating of up to 84%.
The compact dimensions are 12.75 mm in length and 6.7 mm in depth.
It operates reliably between temperatures of -40°C to 100°C.
It provides a 1 kV DC isolation voltage for enhanced safety.
The MTBF is rated at 4,275,000 hours, indicating excellent long-term reliability.
This model has one output.
It uses a surface mount package type, which supports automated assembly processes.
It is suitable for industrial, laboratory, telecommunications, and control system applications.
This product is made in Taiwan, Province Of China.
