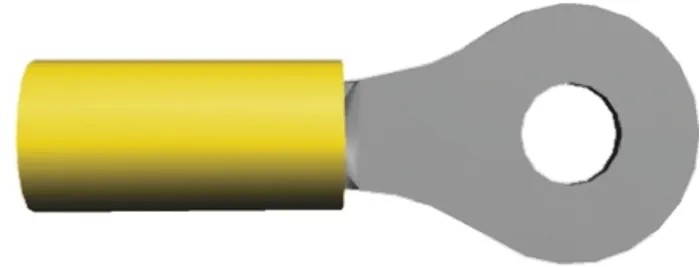

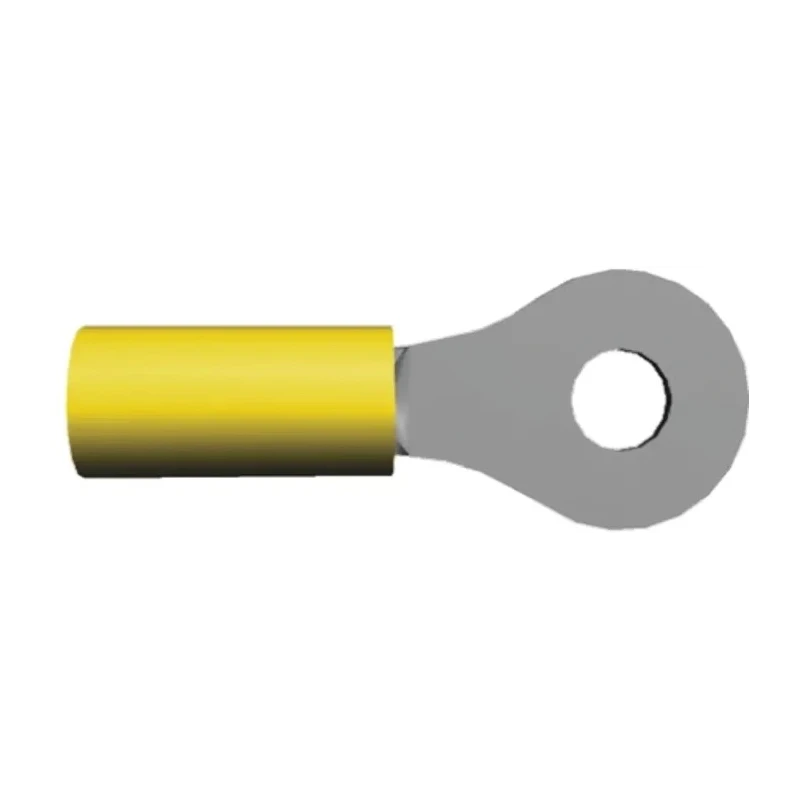

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size, 12 AWG to 10 AWG Wire Size, Yellow, Model 130203

TE Connectivity 130203 PIDG Insulated Ring Terminal M5 stud size is expertly engineered for high reliability electrical connections in industrial and commercial applications. This insulated ring terminal supports wire sizes from 12 AWG to 10 AWG and is color coded yellow for quick sizing identification.

The terminal is crafted from high conductivity copper with a tin plating that resists corrosion and enhances long-term performance. Inside the barrel, serrations ensure a secure crimp providing maximum contact and tensile strength with each connection. The copper sleeve provides improved support and protection to the wire insulation, minimizing damage and fraying during installation or operation.

Designed with a funnelled entry to ease wire insertion, the PIDG ring terminal allows fast, uniform crimps compatible with specialised tool dies. Its nylon sleeve withstands operating temperatures up to 105°C, making it suitable for demanding electrical environments.

This ring terminal is ideal for a wide range of industrial uses including instrumentation and control systems, lighting equipment, power supply units, panel boxes, motors, aerospace electronics, transportation machinery, and appliance assemblies. With precise dimensions including a 13.5mm outer ring diameter, 5.25mm inner ring diameter, 33mm overall length, and 1mm thickness, it delivers robust and dependable connections in tough conditions.

Constructed with copper body and tin plating to resist corrosion. PIDG design for uniform and reliable crimps ensuring secure electrical contact. Color coded yellow insulated nylon sleeve for clear wire size identification.

Suitable for wire sizes from 12 AWG (2.6mm²) to 10 AWG (6.6mm²). Compatible with M5 stud applications. Maximum operating temperature rating of 105°C. Applications across instrumentation, lighting, power supplies, aerospace, and transportation sectors.

Compliant with industry standards meeting or exceeding MIL-T-7928, Type II, Class 1 and 2 where applicable. Manufactured in Hungary to stringent quality controls. Explore the full range of TE Connectivity power connectors and Ring Terminals at EnvMart for reliable industrial electrical components.
