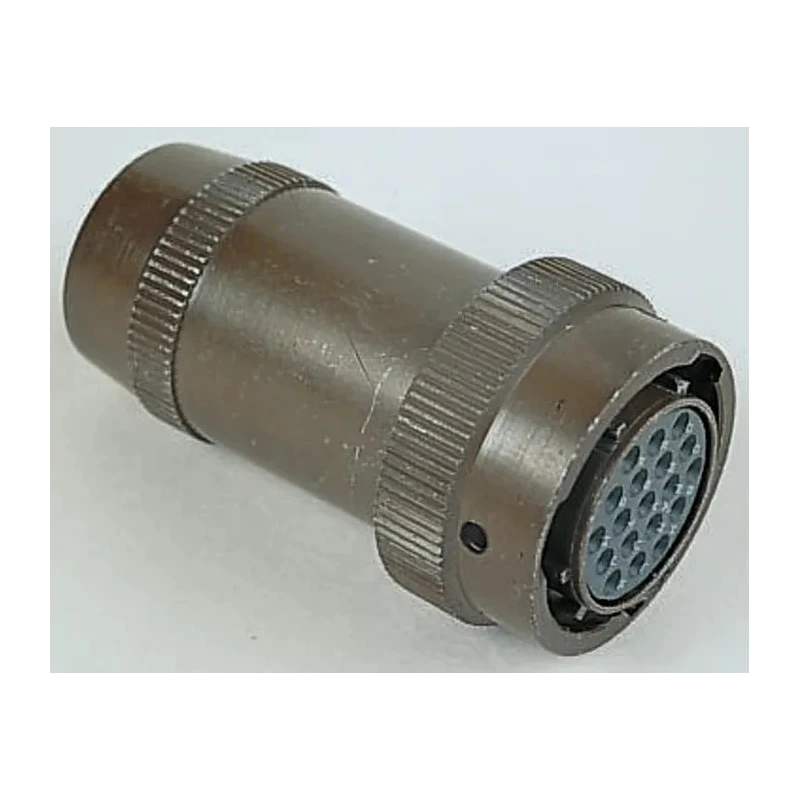

Souriau Sunbank by Eaton MIL Spec Circular Connector 26 Way Copper Alloy Straight Cable Male 500V 7.5A 85106J1626S50

The Souriau Sunbank by Eaton 85106J1626S50 is a premium 26 way MIL Spec Circular Connector designed for industrial, military, and aerospace applications requiring robustness and reliable electrical connections.

Constructed with a copper alloy body and gold-plated contacts, this connector ensures excellent electrical performance and resistance to corrosion. It supports a continuous current of 7.5 amps and withstands voltages up to 500 volts, making it suitable for demanding electronic and electrical systems.

Conforming to military standard MIL-DTL-26482, this connector features a bayonet mating type and olive drab cadmium plating on the shell for enhanced environmental protection. It also carries an IP65 rating, ensuring protection against dust ingress and low-pressure water jets, ideal for harsh operational conditions.

The connector operates reliably across a broad temperature range from -55°C to 125°C and is designed with solder termination compatible with 24 to 18 AWG wiring. Its straight orientation and cable mount type facilitate straightforward installation in complex wiring harnesses.

Manufactured in France, it complies with recognized standards including NFC 93422 and FBI, underscoring its quality and suitability in stringent industrial fields such as measurement, instrumentation, transport, machine-tools, and industrial automation.

Constructed from copper alloy with gold-plated contacts for durability and optimal conductivity. Rated for 7.5 amperes current and 500 volts maximum operating voltage. Features an IP65 ingress protection rating suitable for harsh environments.

Meets MIL-DTL-26482 military standards with bayonet mating type and olive drab cadmium shell plating. Operates reliably between -55°C to 125°C temperature range. Designed for solder termination of 24 to 18 AWG cables with straight orientation and cable mounting.

26 contacts provide multi-connection capability in compact shell size 16. Manufactured in France with compliance to NFC 93422 and FBI standards.

This connector is widely used in industrial, laboratory, aerospace, military, and transportation electronics where robust and secure circular connectors are critical. For more options and technical information, explore the Mil Spec Circular Connectors category at EnvMart.
