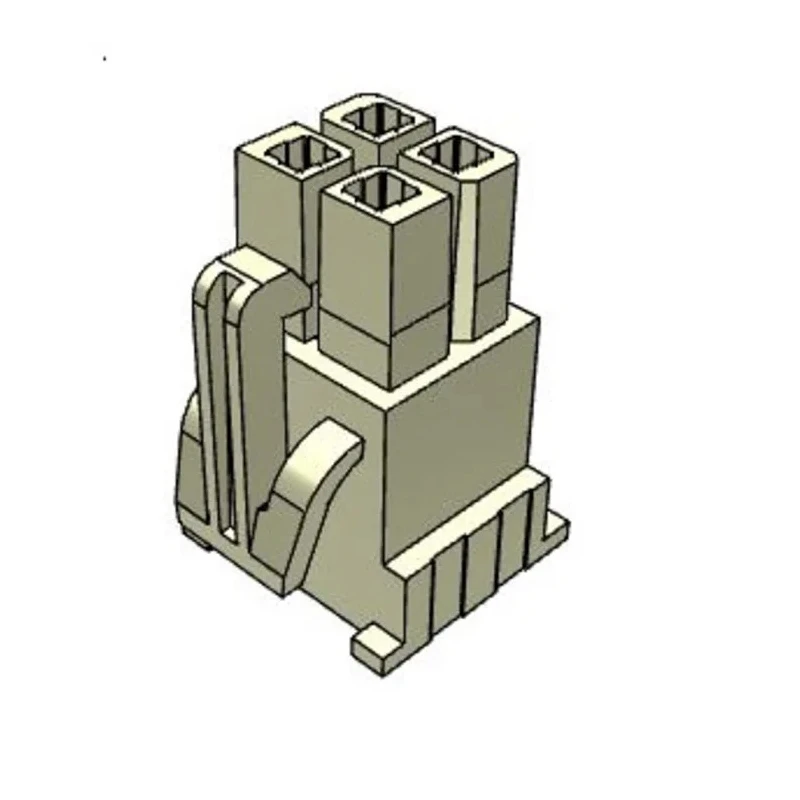

Samtec IPBD Female Crimp Connector Housing 4.19 mm Pitch 4 Way 2 Row Straight IPBD-02-D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Length | 9.3mm |
| Model | IPBD-02-D |
| Width | 12.36mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | IPBD |
| Number of Rows | 2 |
| Pitch | 4.19mm |
| For Use With | FFC Connectors, IDC Connectors, IPBS Connectors, IPBT Connectors |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- Compatible with 16 to 24 AWG PVC or Teflon® cable for reliable electrical connections.
- Polarized design supports single or double row systems for secure mating.
- Constructed from durable polybutylene terephthalate for high mechanical stability.
- Features plastic latches for secure locking and easy assembly.
- Compact dimensions with a length of 9.3 mm and width of 12.36 mm.
- Designed as a discrete wire socket housing suitable for FFC, IDC, IPBS, and IPBT connectors.
- Originates from China, ensuring consistent manufacturing quality standards.
- Straight orientation simplifies cable routing in electronic assemblies.
Product Description
Samtec IPBD-02-D is a female crimp connector housing featuring a 4.19 mm pitch, 4 way, 2 row straight configuration optimized for cable mounting applications in electronic and electrical systems.
Manufactured from polybutylene terephthalate, this Connector Housing provides robust mechanical strength and excellent electrical insulation properties suitable for industrial, electronic manufacturing, and telecommunications use cases.
The housing accommodates 16 to 24 AWG PVC or Teflon® cables, supporting a polarized design with single or double row systems to ensure precise mating and reliable connectivity. Its compact size with a length of 9.3 mm and width of 12.36 mm allows integration in space-constrained PCB assemblies.
Plastic latches integrated into the design facilitate secure locking and effortless assembly or disassembly during maintenance or replacement procedures.
This product is designed for use with FFC connectors, IDC connectors, IPBS connectors, and IPBT connectors, enhancing its versatility across various electronic component configurations.
Originating from China, the IPBD-02-D adheres to consistent quality manufacturing practices to meet industrial standards. Compatible with 16 to 24 AWG PVC or Teflon® cables. Polarized, single or double row system for secure mating.
Polybutylene terephthalate housing material offers durability. Plastic latches ensure firm connector engagement. Compact dimensions support space-efficient design. Supports a variety of connector interfaces including FFC and IDC.
Ideal for electronics, telecommunications, and industrial applications. Explore a wide selection of Samtec connectors in the Electronics & Electricals category on EnvMart for reliable and professionally certified industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the IPBD-02-D connector housing is 4.19 mm.
This model is compatible with 16 to 24 AWG PVC or Teflon® cables.
The IPBD-02-D housing features 4 contacts.
The housing is constructed from polybutylene terephthalate, which provides high mechanical stability and excellent electrical insulation properties.
The dimensions of this connector housing are 9.3 mm in length and 12.36 mm in width.
It is designed for use with FFC connectors, IDC connectors, IPBS connectors, and IPBT connectors.
The orientation of this connector housing is straight, which simplifies cable routing in electronic assemblies.
Yes, it features plastic latches that provide secure locking and facilitate easy assembly and disassembly.
The connector housing originates from China, ensuring consistent manufacturing quality standards.
This connector housing has 2 rows.
It supports cable mounting applications.
The connector housing belongs to the IPBD series.
