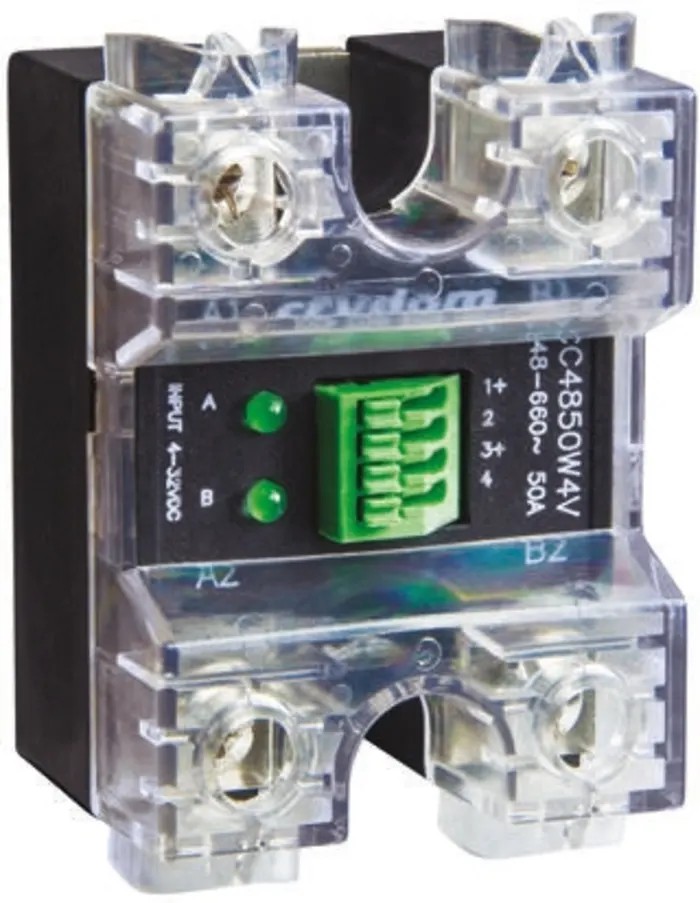

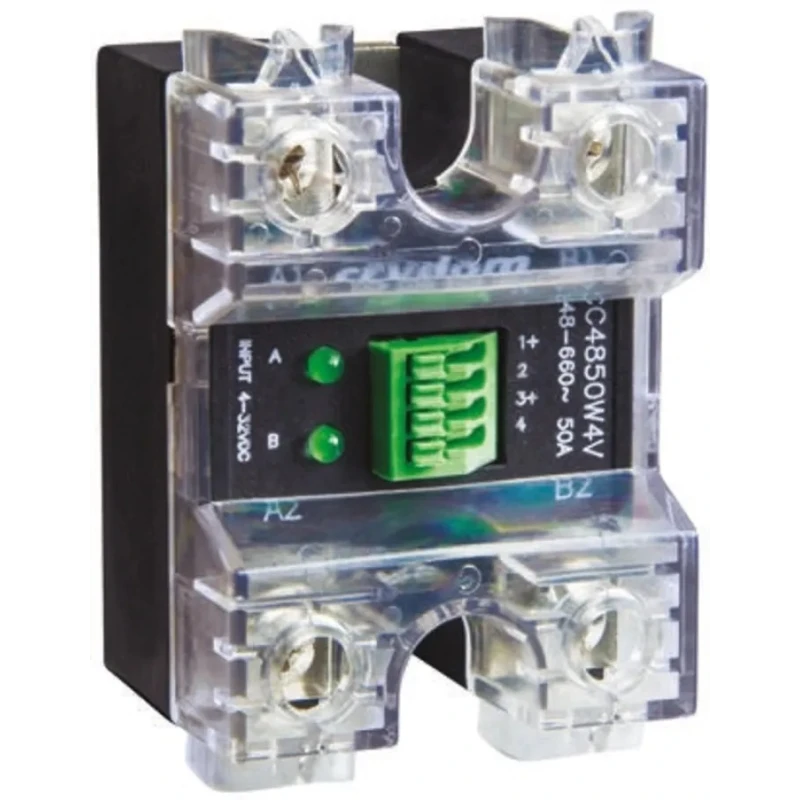

Crydom Evolution Series Solid State Relay, Panel Mount, 50A Load, 600V AC Load, 32V Control CC4850W4V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 36.2mm |
| Length | 58.4mm |
| Model | CC4850W4V |
| IP Rating | IP20 |
| Width | 45.72mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Evolution |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS, CE, cLR US, TUV |
| Maximum Load Voltage | 600V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mA |
Key Features
- Features a panel mount design suitable for secure installation.
- Max load current rating of 50 amperes ensures high power handling.
- Supports maximum load voltage of 600V AC with minimum load voltage at 48V AC.
- Operates with a control voltage range from 4V DC minimum to 32V maximum.
- Utilizes SCR output type with SPST-NO contact configuration for reliable switching.
- Provides zero voltage turn-on switching to reduce electrical noise and stress.
- Rated IP20 for protection and offers screw terminal connections for secure wiring.
- Operating temperature range from -40°C to +80°C for harsh environments.
Product Description
The Crydom CC4850W4V Evolution Series Solid State Relay is designed for reliable, efficient control in industrial automation and electrical systems. It supports a maximum load current of 50 amperes with a maximum load voltage rating of 600V AC, making it ideal for high power AC load switching applications where durability and performance are critical.
This panel mount relay features a screw terminal connection type for secure and easy wiring installation. Its SPST-NO (Single Pole Single Throw - Normally Open) contact configuration enables simple on/off control through zero voltage turn-on switching technology which minimizes electrical noise and extends device lifespan.
The control voltage range from 4V DC to 32V allows flexible control input options. The relay is equipped with an SCR output type capable of handling AC loads effectively while the IP20 rating offers basic protection against solid objects in safe indoor environments.
The device withstands wide temperature operation from -40° to 80°C, suitable for demanding industrial and HVAC contexts. Its compact physical dimensions (58.4mm x 45.72mm x 36.2mm) facilitate easy integration into control panels and electrical enclosures.
This relay also carries certifications including RoHS, CE, cLR US, and TUV standards, ensuring compliance with safety and environmental requirements. Panel mount design for easy and secure installation. 50A maximum load current rating for substantial power capacity.
600V AC maximum load voltage supports heavy-duty AC loads. Zero voltage turn-on switching reduces electrical disturbances. Screw terminals ensure reliable connection and ease of wiring. Wide operating temperature range from -40°C to 80°C suits various environments.
Compact size enhances space savings in control panels. Certified RoHS, CE, cLR US, and TUV compliant for safety.
This Crydom solid state relay is widely used in electrical automation, industrial machinery control, HVAC systems, and manufacturing process control due to its robustness and ease of use. It offers a durable solution for switching AC loads efficiently while maintaining long service life and operational stability.
Explore more products in the Solid State Relay category on EnvMart for a comprehensive range of high-quality industrial relays.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current rating of this solid state relay is 50 amperes.
This model supports a maximum load voltage of 600V AC.
It operates with a control voltage range from 4V DC minimum to 32V maximum.
The contact configuration of this relay is SPST-NO (Single Pole Single Throw - Normally Open).
This relay utilizes zero voltage turn-on switching, which reduces electrical noise and stress.
The dimensions of this model are 58.4mm in length, 45.72mm in width, and 36.2mm in height.
The operating temperature range for this relay is from -40°C to 80°C.
It features screw terminal connections for secure wiring.
This relay is certified with RoHS, CE, cLR US, and TUV standards.
It is commonly used in electrical automation, industrial machinery control, HVAC systems, and manufacturing process control.
The IP rating of this relay is IP20, providing basic protection against solid objects.
This model utilizes an SCR output type for effective handling of AC loads.
