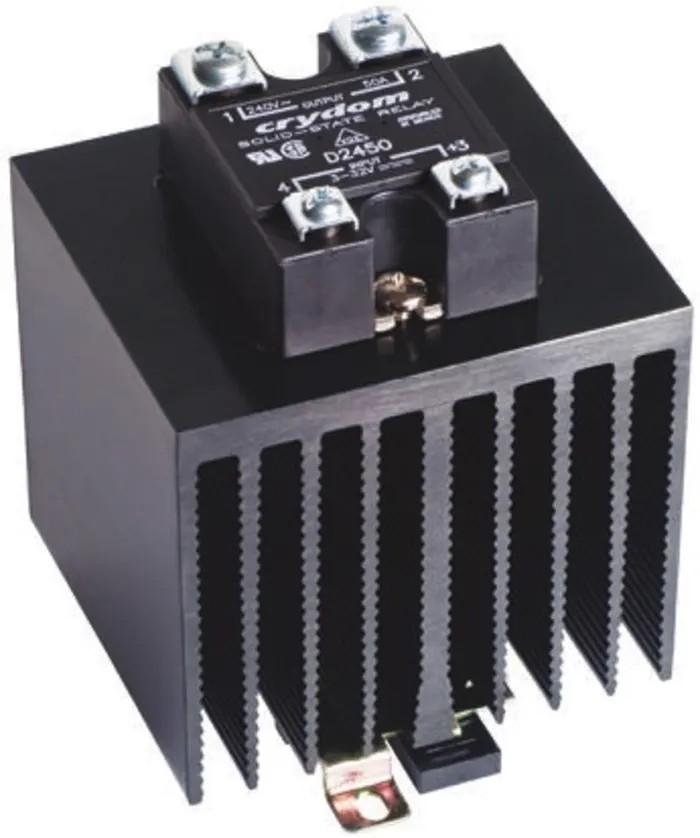

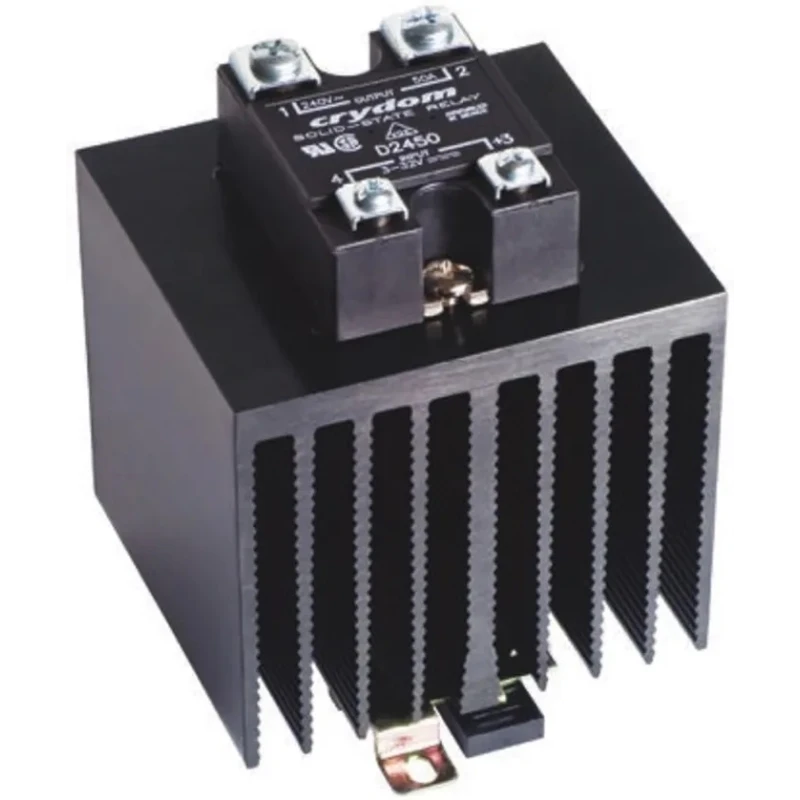

Crydom Solid State Relay, 45 A Load, DIN Rail Mount, 280 V AC Load, 3-32 V DC Control HS122DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 113.4mm |
| Length | 97mm |
| Model | HS122DR |
| Width | 90mm |
| Mount Type | DIN Rail |
| Output type | AC |
| Series | HS122DR |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST-NO |
| Capacitance | 8pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 45A |
| Standards/Approvals | TUV, CE, UL, CSA, RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mA |
Key Features
- Supports maximum load voltage of 280 V AC for heavy-duty applications.
- Control voltage range from 3 V DC minimum to 32 V DC maximum ensures flexible control.
- Zero cross switching function reduces electrical noise during operation.
- Durable DIN rail mounting with screw terminals provides secure installation.
- Operates reliably between -20°C and 80°C for varied industrial environments.
- Compact dimensions with 97 mm length, 90 mm width, and 113.4 mm height for easy integration.
- Certified with TUV, CE, UL, CSA, and RoHS standards for compliance and safety.
- Low off-state leakage current of 10 mA minimizes energy loss.
Product Description
Crydom HS122DR solid state relay is designed for industrial automation and electrical control applications, providing a maximum load current of 45 A with AC output. This DIN rail mountable relay features a control voltage input range from 3 V DC to 32 V DC, facilitating easy integration into various control systems.
Its zero cross switching configuration minimizes electrical interference, prolonging device and system longevity under demanding conditions. Measuring 97 mm in length, 90 mm in width, and 113.4 mm in height, the compact design enables efficient panel mounting and space saving.
Equipped with screw terminal connections, installation is secure and maintenance-friendly. Certified by major international standards including TUV, CE, UL, CSA, and RoHS, it ensures reliability and environmental compliance.
Additional features include a low off state leakage current of 10 mA and an 8 pF capacitance, making it suitable for precise electronic control circuits. Supports up to 45 A load current and 280 V AC maximum load voltage.
Designed for DIN rail mounting with thermal pad and heatsink. Zero cross switching function reduces electrical noise. Wide operating temperature range from -20°C to 80°C. SPST-NO contact configuration with screw terminals.
Conforms to multiple safety and environmental standards. Efficient heat dissipation with built-in heatsink for continuous operation. Compact size allows easy installation in industrial control panels. Low off-state leakage current minimizes power consumption.
Suitable for industrial, automation, electrical, and manufacturing control systems.
This solid state relay is ideal for a wide range of industrial automation and electrical control applications where reliable switching of high AC loads is required. The DIN rail mount facilitates convenient installation in control cabinets, making it an excellent choice for manufacturing, HVAC, process control, and other commercial uses.
Explore more Crydom Solid State Relays and electrical components in our Electronics & Electricals category on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom HS122DR solid state relay can handle a maximum load current of 45 A.
This model has a control voltage input range from 3 V DC to 32 V DC.
The maximum load voltage supported by this relay is 280 V AC.
It is designed for DIN rail mounting, which allows for secure installation in control cabinets.
The HS122DR operates reliably between -20°C and 80°C.
The contact configuration of this model is SPST-NO (Single Pole, Single Throw - Normally Open).
The off-state leakage current for this relay is 10 mA, which helps minimize energy loss.
This solid state relay is certified with TUV, CE, UL, CSA, and RoHS standards.
The dimensions are 97 mm in length, 90 mm in width, and 113.4 mm in height.
It features a zero cross switching function, which reduces electrical noise during operation.
The HS122DR is equipped with screw terminals for secure connections.
The capacitance of the HS122DR is 8 pF, making it suitable for precise electronic control circuits.
