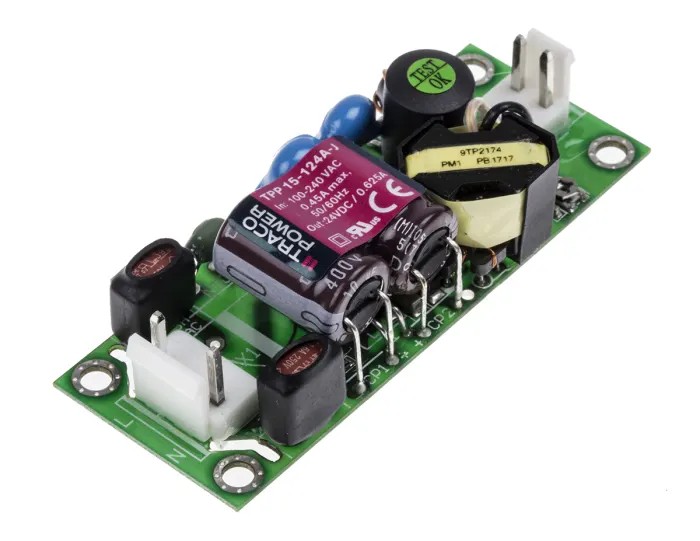

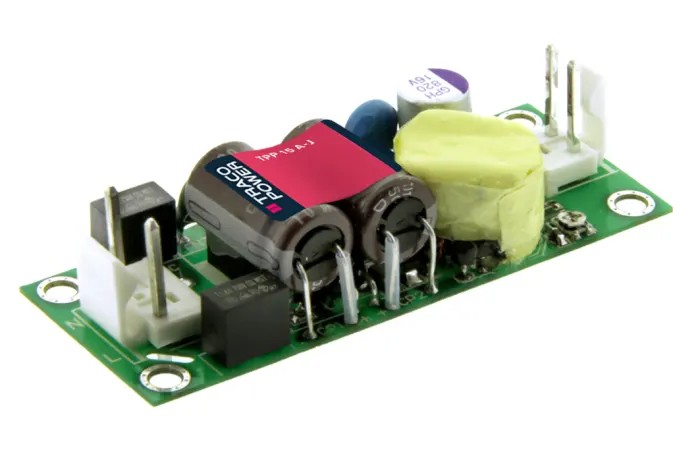

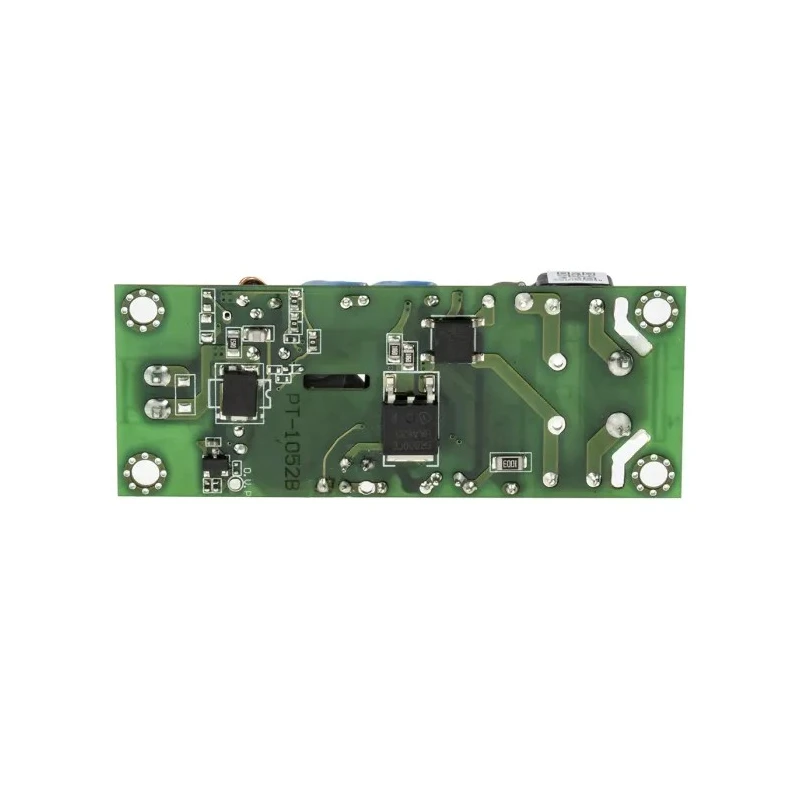

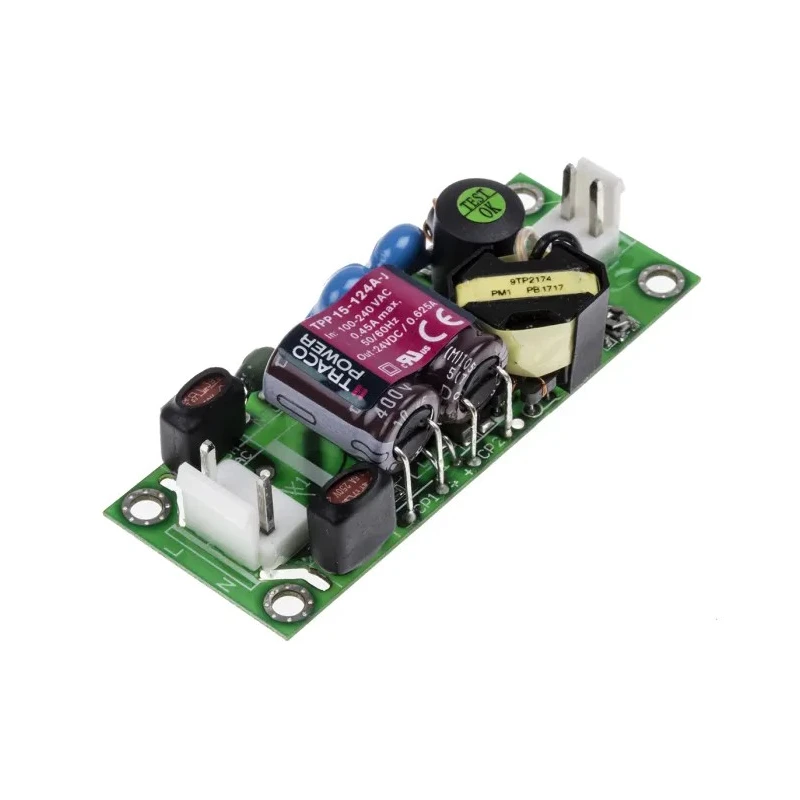

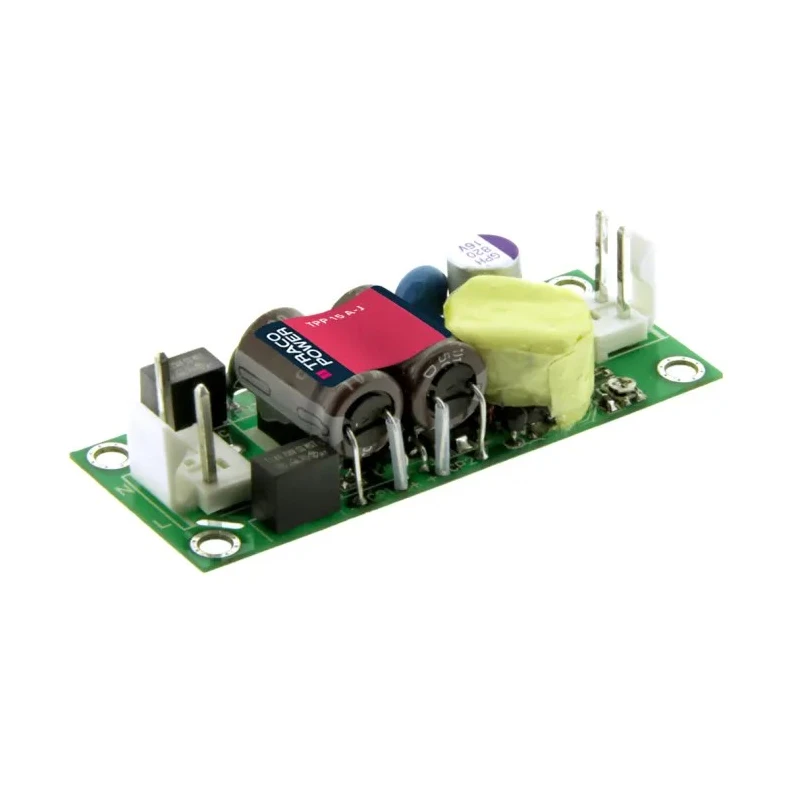

TRACOPOWER Switching Power Supply 24V 15W Chassis Mount 85°C Efficiency 88% TPP 15-124A-J
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 15W |
| Efficiency | 88% |
| Length | 66.2mm |
| Model | TPP 15-124A-J |
| Depth | 15.7mm |
| Gross Weight | 19g |
| Width | 25.4mm |
| Mount Type | Chassis |
| Series | TPP 15A-J |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 24V |
| SMPS Output Current | 620mA |
| Minimum Input Voltage | 85V ac |
| Energy Efficiency Level | III |
Key Features
- Features a maximum output voltage of 24 volts and power rating of 15 watts.
- Single output channel with an output current of 620mA.
- Operating temperature range from -40°C to 85°C ensures reliability in harsh environments.
- Compact dimensions at 66.2mm length, 25.4mm width, and 15.7mm depth.
- High energy efficiency of 88% and meets energy efficiency level III standards.
- Safety certified to UL 62368-1, IEC 60601-1, and IEC 62368-1 medical safety standards.
- Minimum input voltage of 85VAC and maximum input voltage of 264VAC.
- Reinforced double I/O isolation providing safe operation with low leakage current.
Product Description
TRACOPOWER TPP 15-124A-J is a highly reliable switching power supply designed for precise 24V output and a power capacity of 15W. It features a chassis mount design with compact dimensions of 66.2mm length, 25.4mm width, and 15.7mm depth, making it ideal for constrained installation spaces in industrial and medical equipment.
Certified to the latest medical safety standards IEC/EN/ES 60601-1 3rd edition, it offers reinforced double Input/Output isolation (2xMOPP), ensuring safe operation and very low earth leakage currents below 75 µA. This makes it suitable for BF (Body Floating) rated applications, critical in medical environments.
Operating reliably across a wide temperature range from -40°C up to 85°C, the power supply delivers a consistent output current of 620mA with excellent energy efficiency of up to 88%, compliant with Energy Efficiency Level III. The power supply supports a broad input voltage range from 85V to 264V AC, adapting to various electrical infrastructures.
The TPP 15-124A-J is engineered for industrial, laboratory, medical, and HVAC applications requiring high reliability, compact form, and stringent safety compliance. Its series design optimizes thermal performance and output stability in demanding environments.
Maximum output voltage: 24V. Single output with 620mA current rating. Compact dimensions: 66.2×25.4×15.7mm (L×W×D). Energy efficiency level III with 88% efficiency. Operating temperature: -40°C to 85°C. Reinforced double I/O isolation compliant with IEC 60601-1 3rd edition.
Input voltage range from 85V AC to 264V AC. Weight: 19g suitable for lightweight assemblies.
TRACOPOWER switching power supplies like the TPP 15-124A-J provide dependable DC power solutions for power supplies & transformers categories. This product is an excellent choice in power supply systems for industrial, medical, laboratory, and HVAC equipment applications.
Search EnvMart Power Supplies for more high-quality Switching Power Supplies and industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 24 volts.
It has a power rating of 15 watts.
The operating temperature range is from -40°C to 85°C.
The dimensions are 66.2mm in length, 25.4mm in width, and 15.7mm in depth.
The minimum input voltage is 85VAC, and the maximum input voltage is 264VAC.
It achieves an energy efficiency of 88% and complies with Energy Efficiency Level III standards.
It is safety certified to UL 62368-1, IEC 60601-1, and IEC 62368-1 medical safety standards.
This power supply is suitable for industrial, laboratory, medical, and HVAC applications requiring high reliability and safety compliance.
The weight of the TPP 15-124A-J is 19 grams.
It features reinforced double I/O isolation, ensuring safe operation with low leakage current.
This model is designed for chassis mounting.
