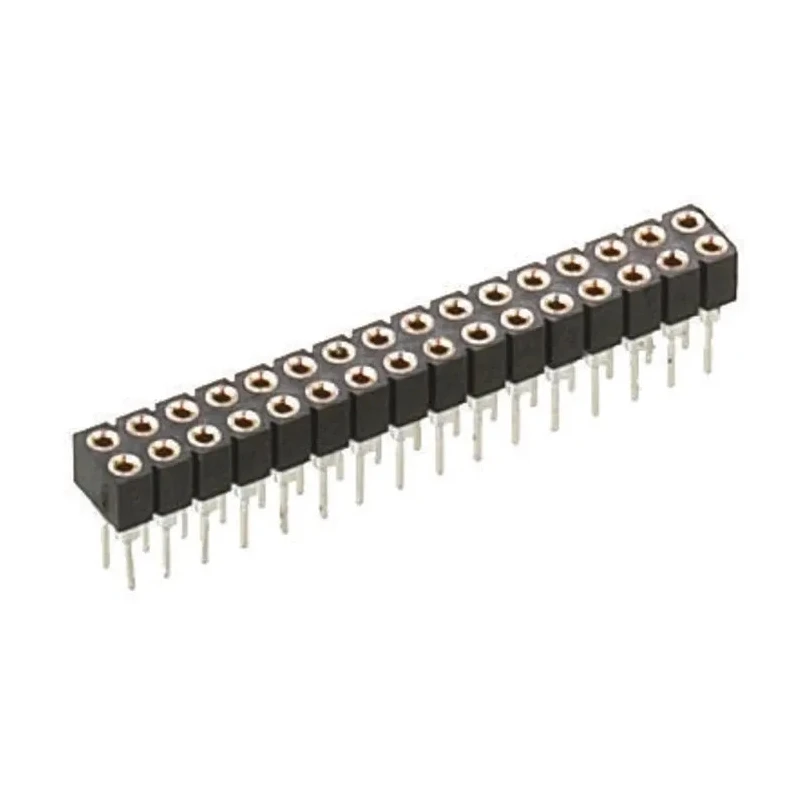

Preci-Dip 833 Series Straight Surface PCB Socket 20-Contact 2 Row 2 mm Pitch Solder 833-87-020-10-001101

Preci-Dip 833-87-020-10-001101 is a specialized PCB socket designed for straight surface mount applications. This 20-contact, 2-row socket has a precise 2 mm pitch spacing and is made for board-to-board interfacing, featuring solder termination for secure mounting.

The housing is made from durable Black Glass Filled Polyester, ensuring mechanical stability and heat resistance. The contacts are female, made of Beryllium Copper Alloy, and are gold flash plated for excellent electrical performance and corrosion resistance. The socket supports a current rating of 12A and can operate up to 150V withstanding temperatures up to 125°C.

Manufactured in Switzerland, this component adheres to high industrial standards though not specifically certified. It features tin-plated brass sleeves combined with gold flash plated beryllium copper 4-finger contact clips, offering reliable electrical connections. The through-hole headers have a pin length of 3.2 mm and accommodate mating pins from 0.4 to 0.66 mm in diameter, or 0.5 mm square pins.

This PCB socket is ideal for electronics manufacturing, assembly lines, and repair where dependable board-to-board connectivity is essential. Its design supports efficient soldering and robust mechanical stability to maintain long-term performance.

Ideal use cases include industrial electronics, telecommunications equipment, instrumentation, and embedded systems circuit boards requiring high-quality connector solutions with compact pitch and multiple contacts.

Constructed with Black Glass Filled Polyester housing for durability. Features Beryllium Copper Alloy female contacts with Gold Flash plating for excellent conductivity. Rated for 12A current and 150V operating voltage. Supports maximum operating temperature of 125 degrees Celsius.

Designed for surface mount with solder termination ensuring secure installation. Board-to-board connector system with a contact pitch of 2 mm. Swiss-made with high-quality materials ensuring industrial-grade performance.

Suitable for various electronics applications requiring reliable PCB connections. Browse more quality PCB Sockets and connectors for your electronic fabrication needs at EnvMart.
