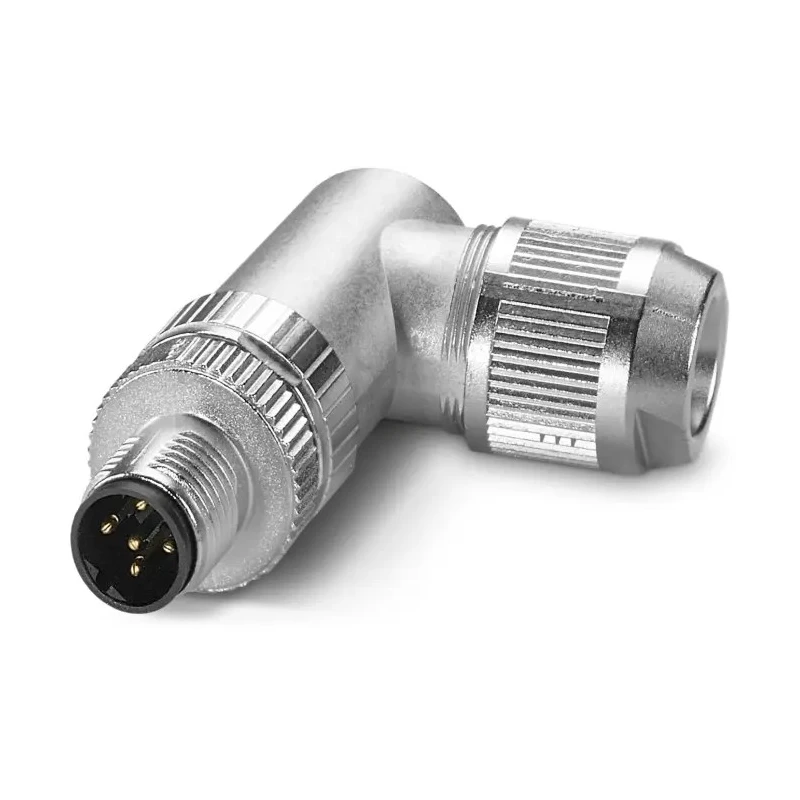

Phoenix Contact Circular Connector, 5 Contacts, Cable M12 Connector, Socket, Male, IP65 IP67, SACC Series 1424663
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 48, 60V |
| Brand | Phoenix Contact |
| Orientation | Right Angle |
| Current | 4A |
| Model | 1424663 |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Copper |
| Series | SACC |
| Termination Type | Push-in |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Nickel over Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 13 |
| Mating Type | B Coded |
| Connector Size | M12 |
| Plug/Socket | Socket |
| Coding | B |
| Flexible | connectors for on-site assembly |
| Phoenix ContactBrand | Phoenix Contact |
Key Features
- The connector provides a current rating of 4A for reliable performance.
- Offers a high degree of protection with IP65 and IP67 ratings for safe use in the field.
- Equipped with a push-in termination type for tool-free and quick wiring.
- Constructed using zinc housing material with nickel over gold plating on copper contacts.
- Designed with right angle orientation and B-coded mating type for secure connections.
- Capable of operating between -40°C and 85°C for durability in harsh environments.
- Features SPEEDCON fast locking system to save installation time.
- Supports external cable diameters from 4 mm to 8 mm, enabling versatile connectivity.
Product Description
Phoenix Contact 1424663 Circular Connector is a 5-contact, cable mount industrial connector optimized for use in demanding electrical and automation applications. This M12 connector, socket, male type provides a current capacity of 4A and operates safely across a voltage range of 48 to 60V.
Featuring an IP65 and IP67 rated housing made of zinc die-cast with nickel plating, it ensures a high degree of protection against dust and moisture, suitable for harsh environments. The connector supports operation from a minimum temperature of -40°C to a maximum of 85°C.
Its push-in termination technology allows quick and easy tool-free wiring installation. The B-coding and right-angle orientation support reliable mating and ensure compatibility with designated counterpart connectors in automation and industrial control systems.
The connector includes a robust SPEEDCON fast locking system for quick assembly and disassembly, offering flexibility for on-site installation and maintenance. The external cable diameter compatibility ranges from 4 mm to 8 mm, enhancing application versatility.
The connector provides a 5-contact pole format with nickel over gold plating for corrosion resistance and optimal conductivity. Zinc housing material offers durability and mechanical strength. Push-in connection technology simplifies wiring and reduces installation time.
High ingress protection ensures suitability for use in industrial, manufacturing, and automation sectors. B-coded mating design prevents misconnections and enhances safety. Flexible on-site assembly without special tools supports maintenance efficiency.
Operating temperature range supports outdoor and indoor industrial applications.
This Phoenix Contact circular connector is ideal for industrial, laboratory, manufacturing, and automation use cases requiring robust electrical connections with reliable performance and durability under demanding conditions. It is part of the trusted SACC Series, manufactured in Germany to exacting quality standards.
Explore additional Phoenix Contact industrial connectors and components for your automation and connectivity needs on EnvMart.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector provides a current rating of 4A for reliable performance.
It operates safely across a voltage range of 48 to 60V.
This model has IP65 and IP67 ratings, ensuring a high degree of protection against dust and moisture.
It can operate in temperatures ranging from -40°C to 85°C.
It features a push-in termination type, allowing for quick and tool-free wiring.
The connector is designed with a right angle orientation for secure connections.
The housing is made of zinc, and the contacts are copper with nickel over gold plating for corrosion resistance.
This circular connector features a 5-contact pole format.
The shell size for this model is 13.
It is ideal for use in industrial, laboratory, manufacturing, and automation applications requiring robust electrical connections.
It is designed with a B-coded mating type to prevent misconnections.
This model is manufactured in Germany to exacting quality standards.
