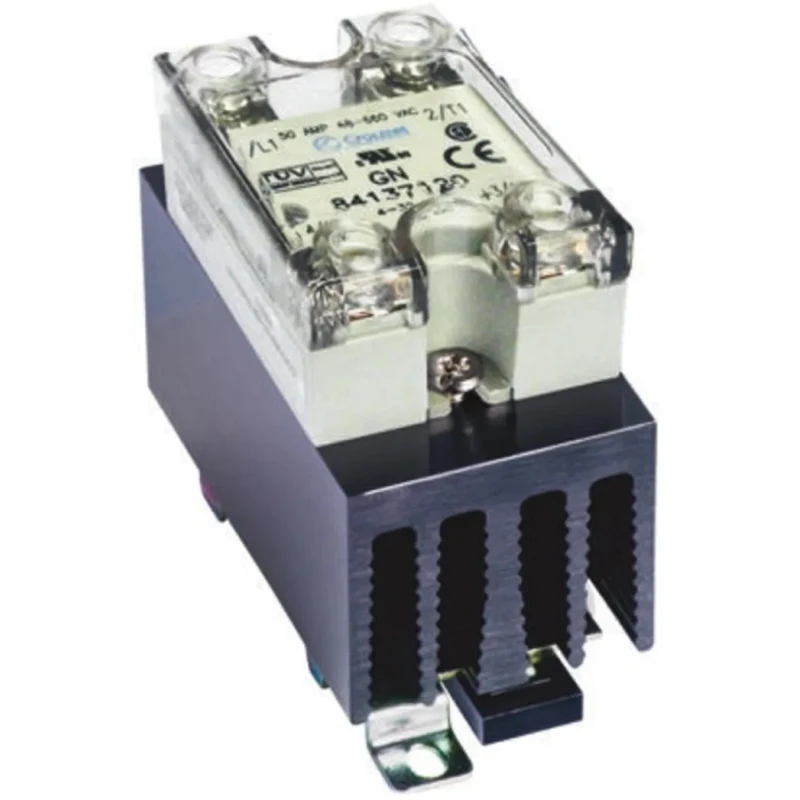

Crydom Solid State Relay, DIN Rail Mount, 25 A Load, 280 Vrms, 3-32 V dc Control HS301DR

Crydom HS301DR Solid State Relay is a single channel, DIN rail mounted relay designed for industrial automation and control applications requiring reliable AC load switching. It supports a maximum load current of 25 A and operates at load voltages up to 280 Vrms, controlled by a DC input voltage between 3 V and 32 V. The relay utilizes zero cross switching technology to minimize electromagnetic interference and prolong device life.

Constructed with a screw terminal for secure wiring and SPST-NO contact configuration, the HS301DR series ensures compatibility with various control circuits. The relay functions effectively across an operating temperature range of -20°C to 80°C and integrates a thermal pad with a DIN rail heatsink for efficient cooling during prolonged operation.

Its compact form factor, measuring 79.2 mm in height, 81 mm in width, and 45 mm in length, allows it to fit neatly in electrical panels while maintaining reliable performance. Off-state leakage current is low at 0.1mArms, reducing power consumption when the relay is inactive. The capacitance of 8 pF supports stable switching performance.

The product meets international certifications including UL, TUV, RoHS, CSA, and CE, making it suitable for use in a wide range of industrial, manufacturing, and HVAC control systems. Its durable design and precise control parameters enable it to maintain safety and efficiency in demanding environments.

Supports maximum load current of 25 amperes for efficient power handling. Operates with a load voltage up to 280 Vrms ensuring wide application use. Control voltage range from 3 V dc to 32 V dc for flexible input control.

Equipped with screw terminal type and SPST-NO contact configuration. Features zero cross switching to reduce electrical noise and prolong relay life. Designed to withstand temperatures from -20°C to 80°C for robust environments.

Compact dimensions of 79.2 mm height, 81 mm width, and 45 mm length optimize panel space. Thermal pad and DIN rail heatsink allow effective thermal management. Off state leakage current is minimal at 0.1mArms to reduce power loss.

Conforms to UL, TUV, RoHS, CSA, and CE standards ensuring compliance and safety.

This Crydom HS301DR Solid State Relay is ideal for industrial, automation, electrical, and HVAC applications requiring quick, silent, and reliable switching of AC loads. Browse our Electronics & Electricals category for more high-quality relay solutions.
