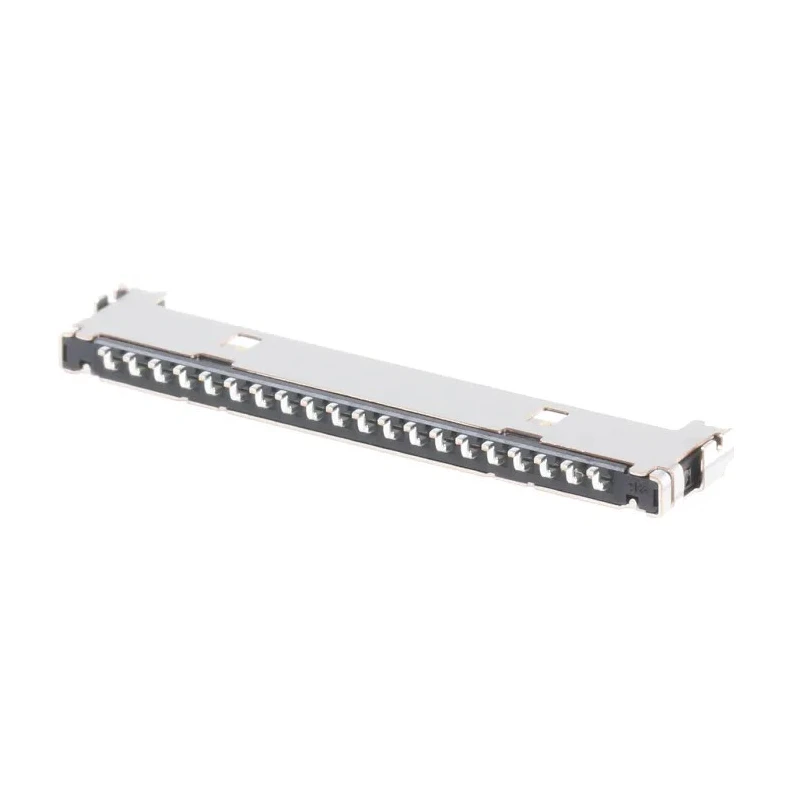

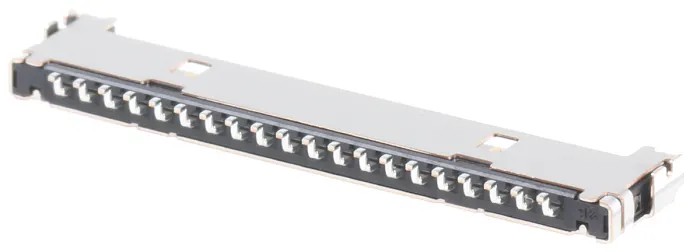

Hirose DF19 Series Right Angle Surface PCB Socket 20-Contact 1 Row 1 mm Pitch Solder

Hirose DF19G-20P-1H(52) is a right angle surface mount PCB socket designed for electronic applications requiring reliable and compact connectors. With 20 contacts arranged in a single row at a 1 mm pitch, this socket facilitates efficient cable-to-board, wire-to-board, and FPC-to-board connections. It is perfect for industrial, manufacturing, electronic components assembly, and other high precision environments.

The socket features a robust polyamide housing that ensures mechanical strength and durability under various operating conditions. Its bronze contact material, plated with gold, provides excellent electrical conductivity and corrosion resistance. Rated for 12A current and 100V voltage, it supports diverse electrical loads.

Operating temperature ranges from -35°C minimum to 85°C maximum, making it suitable for a broad spectrum of environments. The socket’s right angle orientation saves PCB space and supports top-board mounting with uniform external dimensions.

The connector complies with Glow wire safety standard IEC60695-2-11, reinforcing its safe use in electronic assemblies. Manufactured in Japan, it reflects high-quality engineering and manufacturing standards expected in advanced electronics and industrial settings.

Right angle PCB socket with 20 contacts and 1 mm pitch. Surface mount for cable, wire, and FPC to board connections. Polyamide housing for mechanical strength. Bronze contacts plated with gold ensure conductivity. Supports 12A current and 100V voltage.

Operating temperature -35°C to 85°C. Glow wire compliant IEC60695-2-11 for safety. Manufactured in Japan assuring quality. Uniform external dimensions for consistent mounting. Series DF19 for standardization in PCB connectors.

This connector is ideal for industrial, electronic manufacturing, and assembly applications requiring reliable right angle PCB Sockets. Explore more Hirose connectors and high-quality PCB components at EnvMart.
