Vishay DC Input Phototransistor Output Surface Mount Optocoupler VO615A-8X017T

Free Delivery in India | Lowest Global Shipping Charges

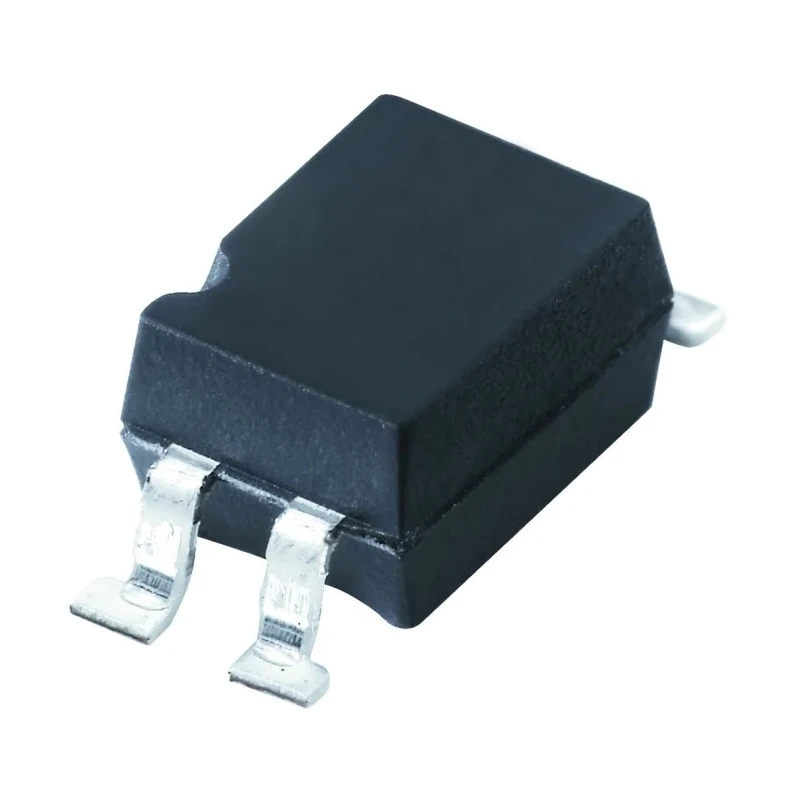

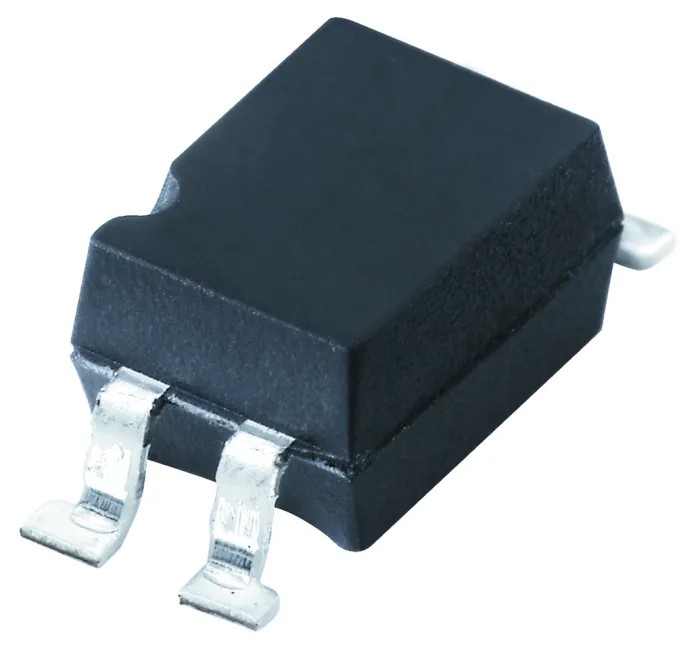

Vishay DC Input Phototransistor Output Surface Mount Optocoupler VO615A-8X017T

Name: Vishay DC Input Phototransistor Output Surface Mount Optocoupler VO615A-8X017T
Brand: Vishay
SKU: 214167
Price: 0.35 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VO615A-8X017T
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	VO
Maximum Operating Temperature	110°C
Package Type	Surface Mount
Minimum Operating Temperature	-55°C
Maximum input current	60mA
Number Of Channels	1
Standards/Approvals	UL, EN
Maximum Forward Voltage	1.6V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	260%
Typical Fall Time	4.7μs
Minimum Current Transfer Ratio	130%

Key Features

Designed for electrical isolation with a maximum isolation voltage of 5 kVrms.
Supports a maximum forward voltage of 1.6 V and maximum input current of 60 mA.
Typical rise time of 3 microseconds and fall time of 4.7 microseconds for fast signal response.
Operates reliably within a temperature range of -55°C to 110°C.
Ensures current transfer ratio between 130% minimum and 260% maximum.
Complies with UL and EN standards for safety and performance.
Single channel 4-pin surface mount package suitable for compact electronic designs.
Commonly applied in AC adapters, switch mode power supplies, industrial controls, telecom systems, smart meters, and solar equipment.

Product Description

Vishay VO615A-8X017T is a DC input optocoupler designed with a phototransistor output in a compact 4-pin surface mount package. This device provides electrical isolation up to 5 kVrms, protecting equipment users from electrical shocks and safeguarding microprocessors from voltage spikes in industrial, commercial, and telecommunications applications.

Featuring a maximum forward voltage of 1.6 V and maximum input current of 60 mA, the VO615A-8X017T ensures efficient signal transmission with a typical rise time of 3 microseconds and fall time of 4.7 microseconds. It operates reliably across a wide temperature range from -55°C to 110°C, making it suitable for demanding environments.

This optocoupler has a current transfer ratio ranging from a minimum of 130% to a maximum of 260%, delivering consistent performance. It is packaged in tape & reel format for automated assembly and mass production convenience.

Applications of this optocoupler include isolation in AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, power over internet, and solar installations.

Designed for electrical isolation with a maximum isolation voltage of 5 kVrms. Supports a maximum forward voltage of 1.6 V and maximum input current of 60 mA. Typical rise time of 3 microseconds and fall time of 4.7 microseconds for fast signal response.

Operates reliably within a temperature range of -55°C to 110°C. Ensures current transfer ratio between 130% minimum and 260% maximum. Complies with UL and EN standards for safety and performance. Single channel 4-pin surface mount package suitable for compact electronic designs.

Packaged in tape & reel for automated manufacturing processes.

This Vishay Optocoupler is ideal for applications requiring robust electrical isolation and precise optoelectronic switching in industrial, laboratory, telecommunications, HVAC, manufacturing, and renewable energy systems.
