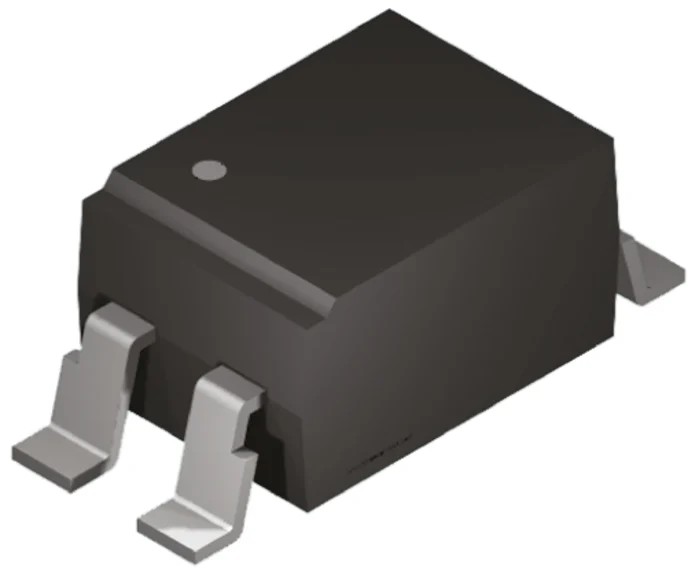

Vishay DC Input Optocoupler Surface Mount 4-Pin PDIP VO615A-4X019T

Free Delivery in India | Lowest Global Shipping Charges

Vishay DC Input Optocoupler Surface Mount 4-Pin PDIP VO615A-4X019T

Name: Vishay DC Input Optocoupler Surface Mount 4-Pin PDIP VO615A-4X019T
Brand: Vishay
SKU: 214166
Price: 0.33 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VO615A-4X019T
Packaging	Tape & Reel
Mount Type	Surface
Output type	Phototransistor
Series	VO
Maximum Operating Temperature	110°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Maximum input current	60mA
Number Of Channels	1
Standards/Approvals	UL, EN
Maximum Forward Voltage	1.6V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	320%
Typical Fall Time	4.7μs
Minimum Current Transfer Ratio	160%

Key Features

Offers high voltage isolation up to 5000 Vrms for safety and performance.
Features a typical rise time of 3 microseconds and fall time of 4.7 microseconds.
Operates over a wide temperature range from -55°C to 110°C.
Supports a maximum input current of 60 mA with a maximum forward voltage of 1.6 V.
Provides high current transfer ratios from 160% minimum to 320% maximum.
Comes packaged in tape and reel for automated insertion.
Has a 4-pin PDIP package type supporting a single channel phototransistor output.
Meets UL and EN standards for enhanced reliability.

Product Description

Vishay VO615A-4X019T DC Input Optocoupler is a high reliability semiconductor device featuring a phototransistor output in a compact 4-pin PDIP surface mount package. It provides effective electrical isolation up to 5000 Vrms, protecting microprocessor systems and equipment users from voltage spikes and electrical shocks.

Designed for industrial and commercial applications, it is ideal for isolation in AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, and power management in internet and solar devices.

The optocoupler operates with a maximum input current of 60 mA and a maximum forward voltage of 1.6 V, ensuring optimal signal transmission with minimal power loss. It supports a wide ambient temperature range from -55°C to 110°C for reliable operation in demanding environments.

With high current transfer ratio ranging between 160% minimum and 320% maximum, the VO615A-4X019T ensures strong output signal fidelity. The typical rise and fall times of 3 μs and 4.7 μs respectively provide fast switching capabilities suitable for modern electronic systems.

The product conforms to UL and EN standards, guaranteeing compliance with global safety and quality norms. The 4-pin PDIP package in tape and reel format is suitable for automated manufacturing processes, improving production efficiency.

High voltage isolation of 5000 Vrms enhances electrical safety and signal integrity. Wide operating temperature range supports harsh industrial and commercial use cases. Fast switching times suitable for digital and control applications.

Packaging supports modern assembly line automation. Compatible with a wide range of applications including industrial controls and telecom. Robust design meets international safety standards.

This Vishay optocoupler is an essential component for electrical isolation in electronic designs, ensuring system protection and reliable data transmission. Explore more optoelectronic components and Optocouplers on EnvMart to enhance your electronics projects and industrial applications.
