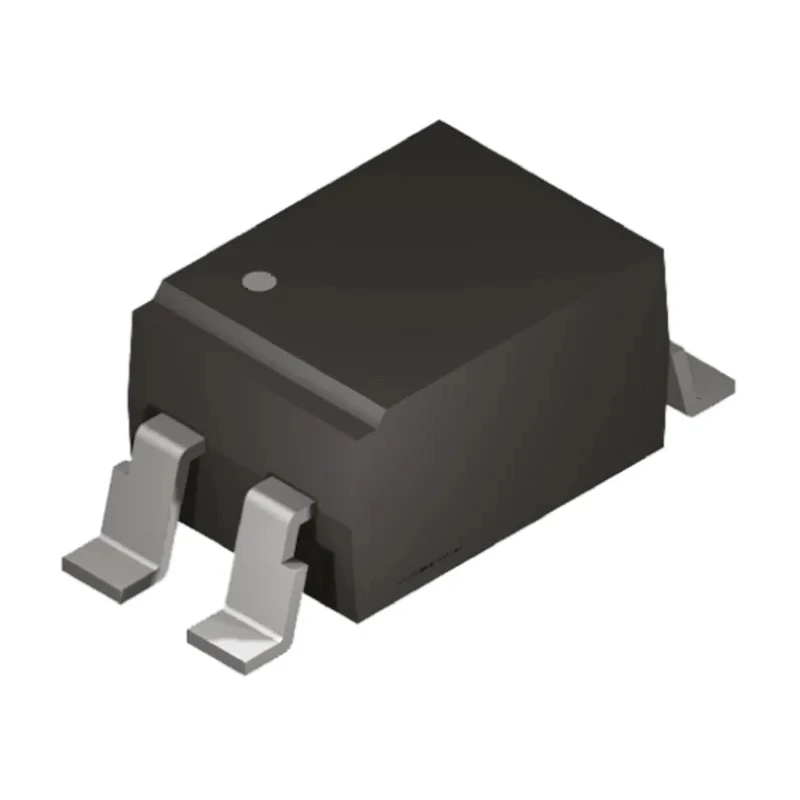

Vishay DC Input Surface Mount Phototransistor Output Optocoupler 4-Pin SOP TCLT1000

Vishay TCLT1000 is a DC input optocoupler featuring a phototransistor output within a compact surface mount 4-pin SOP package. Designed for industrial and electronic applications, this device provides excellent electrical isolation with an isolation voltage of 5000 V AC. Its construction enables reliable signal transmission between circuits while preventing high voltages from affecting low-voltage components.

With a maximum forward voltage of 1.6 V and a maximum input current rating of 60 mA, the TCLT1000 supports a wide range of operating conditions. Its thermal rating from -55°C to 100°C ensures performance stability in harsh environments. Typical rise and fall times of 3 μs and 4.7 μs enable efficient switching speeds suitable for fast electronic circuits.

The device operates with a single channel and includes four pins in an SOP (Small Outline Package) form factor, facilitating surface mounting on printed circuit boards. The current transfer ratio ranges between 0.5% minimum and 6% maximum, providing clear signal coupling characteristics.

It complies with recognized safety and quality standards including UL and EN certifications. The TCLT series offers a dependable solution for optical isolation in power supplies, industrial controls, and signal processing applications.

This product is ideal for use in electronic devices requiring secure isolation, such as computers, communication equipment, and measurement instruments. The robust temperature range and high isolation voltage rating allow deployment in demanding factory automation and instrumentation environments.

This optocoupler uses a DC input with a phototransistor output for signal transmission. The device supports a maximum forward voltage of 1.6 volts. It features a single channel and four pins in a surface mount SOP package.

The product offers an isolation voltage of 5000 volts AC for robust electrical separation. The maximum input current rating is 60 mA, suitable for industrial and electronic applications. Operation temperature ranges from minus 55 degrees Celsius to 100 degrees Celsius ensuring wide usability.

Typical rise and fall times are 3 microseconds and 4.7 microseconds respectively, allowing for fast switching. The maximum current transfer ratio is 6% and minimum is 0.5%. This product complies with UL and EN standards ensuring safety and quality.

It belongs to the TCLT series and is not designed to automotive standards. Browse Vishay brand electronics components and Optocouplers at EnvMart for industrial and commercial applications.
