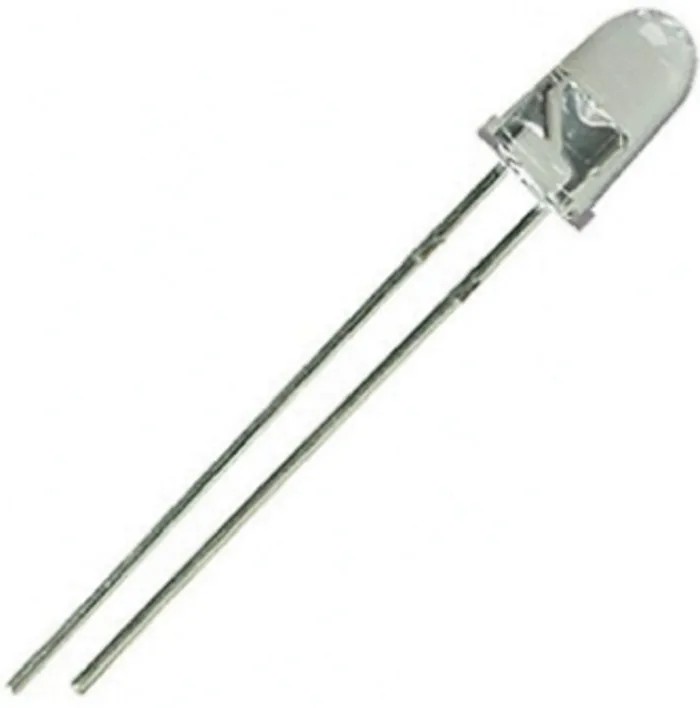

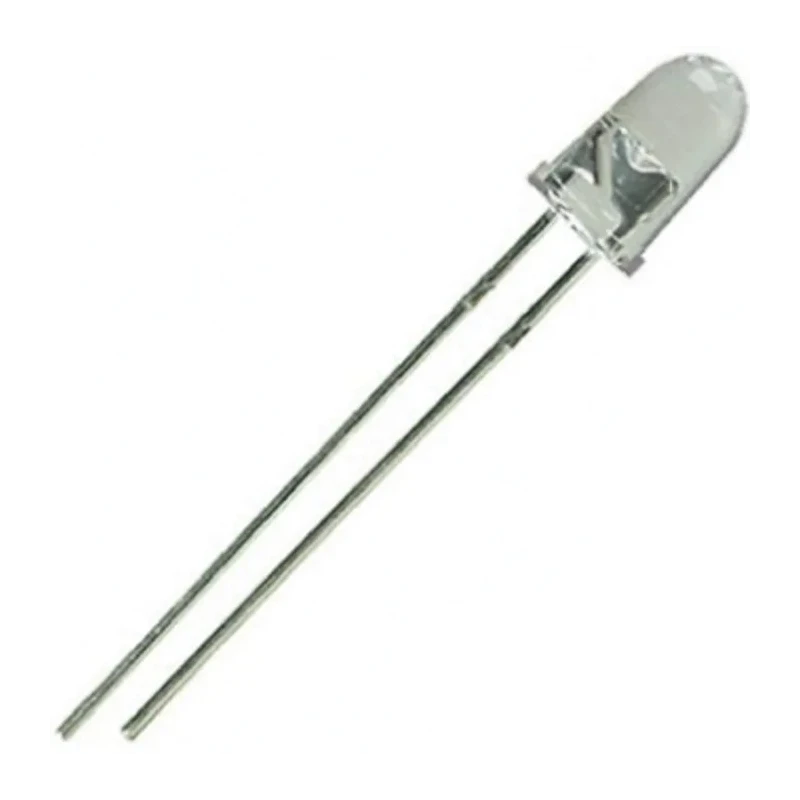

Vishay 830 nm Infrared LED 5 mm T-1 3/4 Through Hole Package TSHG8200
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | TSHG8200 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | TSHG8200 |
| Number Of Leds | 1 |
| Package Type | 5 mm (T-1 3/4) |
| Standards/Approvals | JEDEC JS709A, RoHS 2002/95/EC, WEEE 2002/96/EC |
| Number of Pins | 2 |
| Lens Shape | Round |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 830nm |
| Radiant Flux | 50mW |
| LED Material | GaAlAs |
| Angle of half intensity | 20° |
| Radiant Intensity | 180mW/sr |
| SFH 4547 ams OSRAM 950 nm IR LED 5 mm (T-1 3/4) Through Hole packageBrand | ams OSRAM |
Key Features
- Peak wavelength of 830 nm for precise infrared emission.
- Standard 5 mm (T-1 3/4) round lens through-hole package.
- Radiant flux rated at 50 mW and radiant intensity of 180 mW/sr.
- Low forward voltage ensuring energy efficient operation.
- Designed with GaAlAs LED material for high reliability and performance.
- Narrow angle of half intensity at 20 degrees for focused IR output.
- Single LED with two pins for straightforward PCB mounting.
- Compliant with JEDEC JS709A, RoHS 2002/95/EC and WEEE 2002/96/EC standards.
Product Description
Vishay TSHG8200 is a high-performance 830 nm infrared LED housed in a 5 mm T-1 3/4 through-hole package. This device features GaAlAs LED technology providing strong radiant power and high-speed output for specialized infrared applications.
The clear, untinted plastic package and round lens enable effective IR light focusing with a half-intensity angle of 20 degrees. It offers a radiant flux of 50 mW and radiant intensity of 180 mW/sr, designed to operate at a maximum supply voltage of 5 V while maintaining low forward voltage and high reliability.
The TSHG8200 IR LED is suitable for industrial and commercial applications including CMOS camera systems, high-speed infrared data transmission, and smoke-automatic fire detection. Its through-hole mount type and standard 5 mm package facilitate easy integration into electronic devices and circuit boards.
Compliant with JEDEC JS709A, RoHS 2002/95/EC, and WEEE 2002/96/EC standards, this LED ensures environmental and safety regulation adherence while delivering efficient IR emission performance.
Peak wavelength: 830 nm for focused IR output. 5 mm (T-1 3/4) clear plastic through-hole package. Radiant flux: 50 mW and radiant intensity: 180 mW/sr. GaAlAs LED material with high reliability and low forward voltage. Narrow 20° half intensity angle for directional infrared emission.
Single LED, two pin configuration for simple mounting. JEDEC JS709A, RoHS, and WEEE compliant. Ideal for CMOS cameras, IR data transmission, and fire detection systems. Explore more Vishay IR LED devices and related electronic components at EnvMart for industrial, laboratory, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the TSHG8200 infrared LED is 830 nm, which allows for precise infrared emission.
This model has a radiant flux rated at 50 mW, providing effective infrared output for various applications.
The radiant intensity of this LED is 180 mW/sr, which helps in focusing the infrared light effectively.
The maximum supply voltage for the TSHG8200 is 5 V, ensuring compatibility with standard electronic circuits.
This infrared LED features a through-hole mount type, facilitating easy integration into circuit boards.
The TSHG8200 is housed in a standard 5 mm (T-1 3/4) round lens package.
This model has two pins, which simplifies the mounting process on PCBs.
The TSHG8200 is constructed using GaAlAs LED material, which contributes to its high reliability and performance.
The angle of half intensity for the TSHG8200 is 20 degrees, allowing for focused infrared output.
This infrared LED is compliant with JEDEC JS709A, RoHS 2002/95/EC, and WEEE 2002/96/EC standards, ensuring adherence to safety and environmental regulations.
This infrared LED is suitable for applications such as CMOS camera systems, high-speed infrared data transmission, and smoke-automatic fire detection.
