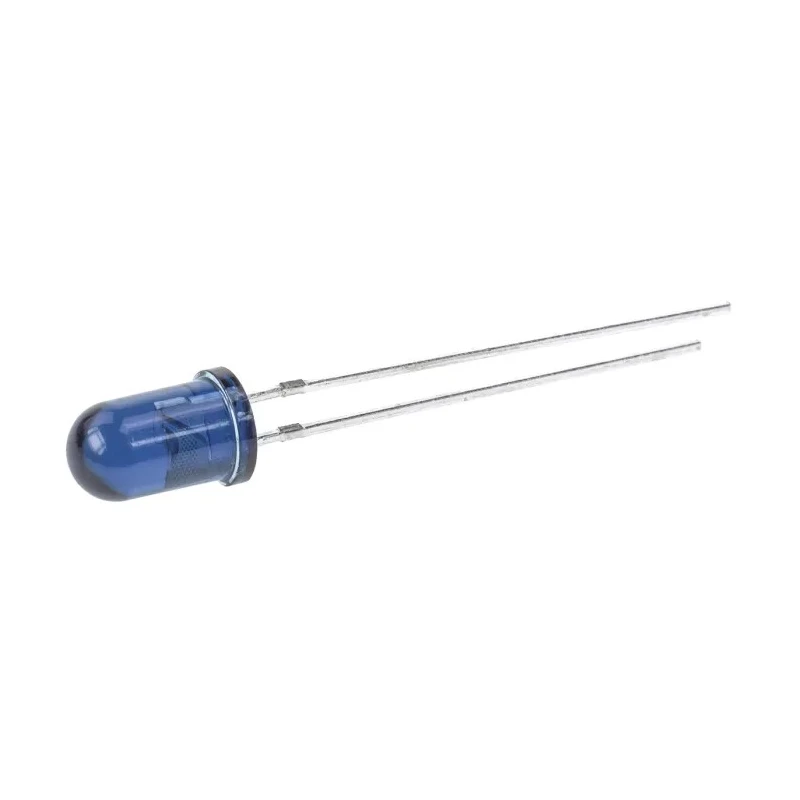

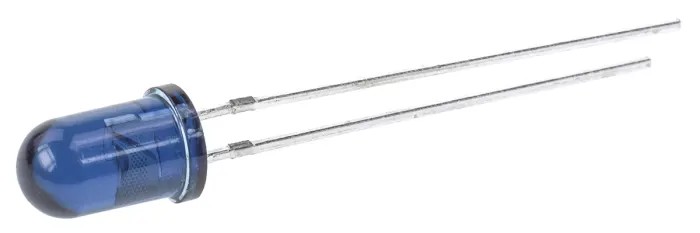

Vishay High Power 940 nm Infrared LED 5 mm Through Hole Package TSAL6100

Free Delivery in India | Lowest Global Shipping Charges

Vishay High Power 940 nm Infrared LED 5 mm Through Hole Package TSAL6100

Name: Vishay High Power 940 nm Infrared LED 5 mm Through Hole Package TSAL6100
Brand: Vishay
SKU: 214075
Price: 0.2 USD
Availability: InStock



Category IR LED Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Model	TSAL6100
Packaging	Bulk
Mount Type	Through Hole
Number Of Leds	1
Package Type	5 mm
Package Form	T-1¾
Standards/Approvals	JEDEC
Number of Pins	2
Lens Shape	Round
Peak Wavelength	940nm
Radiant Flux	40mW
LED Material	GaAlAs
Angle of half intensity	20°
Radiant Intensity	170mW/sr
SFH 4547 ams OSRAM 950 nm IR LED 5 mm (T-1 3/4) Through Hole packageBrand	ams OSRAM

Key Features

The LED emits infrared light at a peak wavelength of 940 nm suitable for remote control units.
High radiant flux of 40 mW ensures strong infrared signal transmission.
Featuring a narrow 20° angle of half intensity for focused IR delivery.
Constructed with GaAlAs material, it offers excellent spectral matching with silicon photodetectors.
Designed with a round lens and 5 mm T-1¾ leaded package for easy through-hole mounting.
Complies with JEDEC standards ensuring quality and reliability.
Capable of high pulse current operation supporting demanding electronics.
Ideal for use in free air transmission systems, smoke detectors, and optical counters.

Product Description

Vishay TSAL6100 infrared LED is a robust optoelectronic component engineered for industrial and consumer electronics requiring reliable infrared emission. This 5 mm through-hole LED emits at a peak wavelength of 940 nm with a radiant flux of 40 mW, delivering high radiant intensity measured at 170 mW/sr. Packaged in a standard T-1¾ leaded form factor with a round lens, the LED facilitates easy integration into PCB designs with through-hole mounting.

Manufactured to meet JEDEC standards, the TSAL6100 offers high reliability and spectral compatibility with silicon photodetectors, making it an excellent choice for infrared remote controls, optical counters, card readers, and free air transmission systems. Its narrow beam angle of 20° concentrates the infrared light, maximizing signal strength over longer distances and improving detection sensitivity.

The LED material is GaAlAs (Gallium Aluminum Arsenide), supporting excellent performance at the specified wavelength and power levels. The device also supports high pulse current operation, enabling use in applications demanding intermittent high intensity without degradation.

Applications for the TSAL6100 include industrial automation sensors, consumer electronics remote controls, security systems, and environmental monitoring devices. Its bulk packaging is suitable for volume assembly environments.

The LED emits at a peak wavelength of 940 nm suitable for infrared applications. Compact 5 mm through-hole package with round lens for easy mounting. High radiant flux of 40 mW and radiant intensity of 170 mW/sr. Narrow 20° half intensity angle for focused IR emission.

GaAlAs LED material for optimal infrared performance. JEDEC standard compliant ensuring quality and durability. Supports high pulse current operation for demanding electronic uses. Ideal for remote controls, smoke detectors, optical counters, and card readers.
