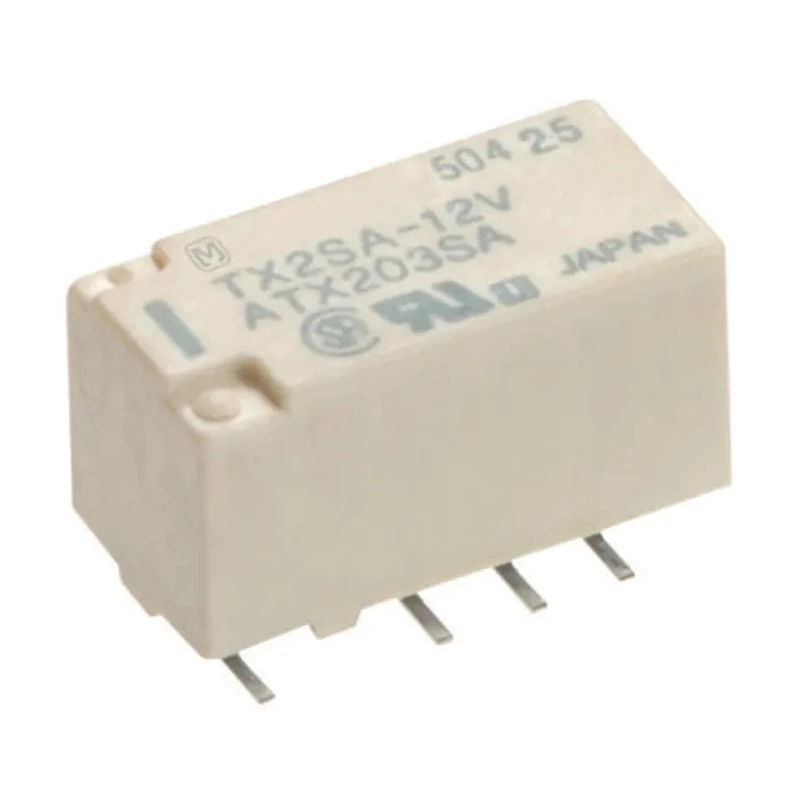

Panasonic Surface Signal Relay 12V DC Coil 2A DPDT TX2SA-12V

Panasonic TX2SA-12V Surface Signal Relay is a high-quality relay designed for surface mount PCB applications, featuring a 12V DC coil and a double-pole double-throw (DPDT) contact configuration. This relay offers a 2A switching current capacity and supports switching voltages of up to 220V AC and 220V DC, making it suitable for a broad range of electrical control and automation uses.

The relay is constructed with gold plated contacts to minimize contact resistance and ensure long-term reliability. Its coil consumes only 140 milliwatts of power, enhancing energy efficiency in circuit designs.

Designed with sealed construction, the relay can endure automatic washing processes without damage. It also offers high vibration and shock resistance, enabling reliable performance in rugged industrial environments and critical applications such as telecommunications, medical equipment, measurement systems, and security devices.

The device operates over a wide temperature range from -40°C to 85°C, making it adaptable to various climates and industrial workloads. Its compact dimensions (15 mm length, 8.2 mm height, and 7.4 mm width) optimize PCB space usage while maintaining robust performance.

The coil resistance is precisely 1020 ohms, ensuring consistent operation, and the surface mount terminal type facilitates modern assembly processes. Manufactured in Japan, the TX2SA-12V meets RoHS environmental standards and is approved to UL and CSA certifications, attesting to its quality and safety compliance.

This Panasonic surface signal relay is excellent for applications requiring reliable switching with low power consumption and durable construction. Set includes 1 unit of Panasonic Surface Signal Relay TX2SA-12V. Explore more quality relays and electrical components in the Electronics & Electricals > Relays & Contactors > Signal Relay category at EnvMart.

The relay is designed for surface mount applications with a compact form factor. It supports switching voltages up to 220V AC and 220V DC. The coil power consumption is low at 140mW for efficient operation. Gold plated contact material ensures high reliability and low contact resistance.

Operating temperature range of -40°C to 85°C allows use in diverse environments. Constructed with sealed design for durability and automatic washing capability. High vibration and shock resistance suitable for demanding industrial and telecommunications applications.

Ideal for use in security, medical equipment, measurement devices, and telecommunication systems. Manufactured in Japan, meeting RoHS compliance standards.
