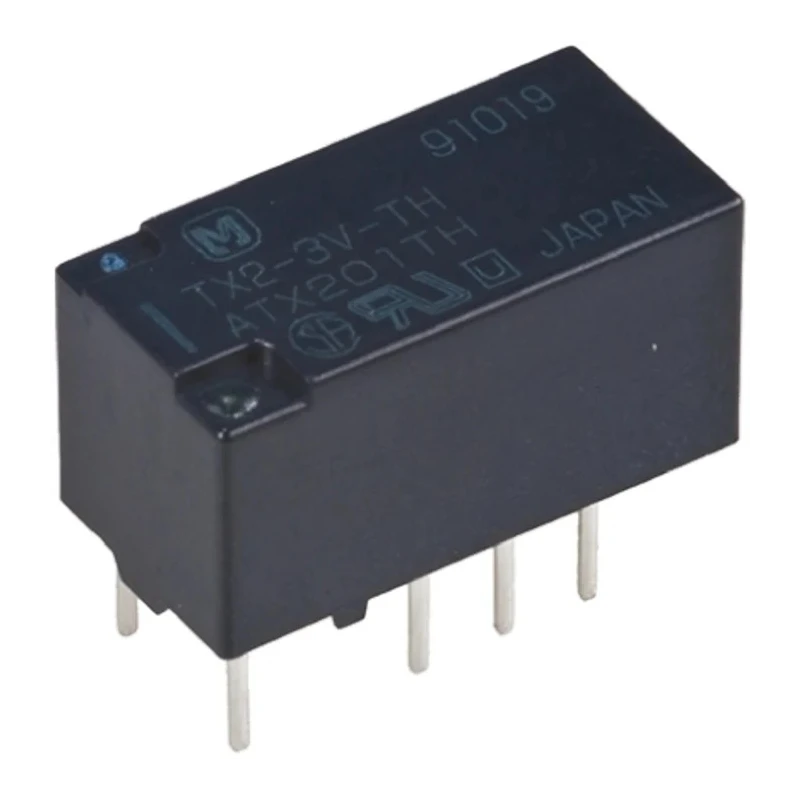

Panasonic PCB Signal Relay 3V DC Coil 2A DPDT Through Hole TX2-L2-3V-TH
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-L2-3V-TH |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TX-TH |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 64.3Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
| UL recognised, | CSA,:BSI |
Key Features
- Operates with a low coil power consumption of 140mW ensuring energy efficiency.
- High contact capacity of 2A at 30V DC with gold-plated contacts for enhanced conductivity and durability.
- Supports up to 7.5A inrush current allowing for high surge resistance.
- Compact dimensions with a length of 15mm and height of 8.2mm suitable for dense circuit boards.
- Wide operating temperature range from -40°C to 85°C for reliable industrial performance.
- Through hole terminal type for secure and robust PCB connections.
- Complies with RoHS standards ensuring environmental safety and compliance.
- Suitable for high capacity control functions including air conditioning control systems.
Product Description
Panasonic TX2-L2-3V-TH PCB Signal Relay is designed for effective signal switching in PCB applications, featuring a 3V DC coil voltage and DPDT contact configuration. Its low coil power of 140mW provides energy-efficient operation while supporting a switching current of 2A and switching power of 60W, matching the requirements of demanding industrial control systems.
The relay’s sealed construction offers excellent resistance against shock and vibration, making it ideal for use in robust environments such as manufacturing, HVAC control, and automation. The gold-plated contacts minimize contact resistance (100mΩ) and ensure long-lasting reliable electrical connections.
Compact with dimensions of 15mm in length, 7.4mm width, and 8.2mm height, the TX2-L2-3V-TH relay is suitable for dense PCB layouts. The through-hole mounting type ensures stable installation and soldering integrity.
This Panasonic PCB relay supports a high inrush current of 7.5A, allowing it to handle surge conditions common in air conditioning and industrial automation. Being RoHS compliant, it conforms to environmental regulations and sustainability standards.
Typical applications include signal switching for industrial automation, home appliances, HVAC control panels, and general-purpose PCB signal conditioning. Operates at 3V DC coil voltage with low power consumption of 140mW.
Double Pole Double Throw (DPDT) contact configuration provides flexible switching options. Gold plated contacts reduce resistance and enhance durability and reliability. High surge resistance with 7.5A inrush current capability.
Compact form factor and through-hole mount for easy PCB integration. Wide operating temperature range (-40°C to 85°C) supports varied environments. Meets RoHS compliance for environmental safety and regulations. Ideal for Signal Relay use in automation, HVAC, and industrial control applications.
Explore the complete range of Panasonic relays and other signal conditioning products at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TX2-L2-3V-TH relay operates at a coil voltage of 3V DC.
This model supports a maximum switching current of 2A.
The relay has dimensions of 15mm in length, 7.4mm in width, and 8.2mm in height.
It features a Double Pole Double Throw (DPDT) contact configuration.
The relay has a low coil power consumption of 140mW.
It supports a high inrush current of up to 7.5A, allowing for effective surge resistance.
The contacts of this relay are made of gold-plated material, which enhances conductivity and durability.
The relay operates within a wide temperature range of -40°C to 85°C.
This model uses a through-hole mounting type for secure PCB connections.
It complies with RoHS standards, ensuring environmental safety and compliance.
The contact resistance is rated at 100mΩ, providing reliable electrical connections.
It is suitable for applications in industrial automation, HVAC control systems, and signal switching for home appliances.
