Panasonic PCB Signal Relay 24V DC Coil 1A DPDT AGQ20024

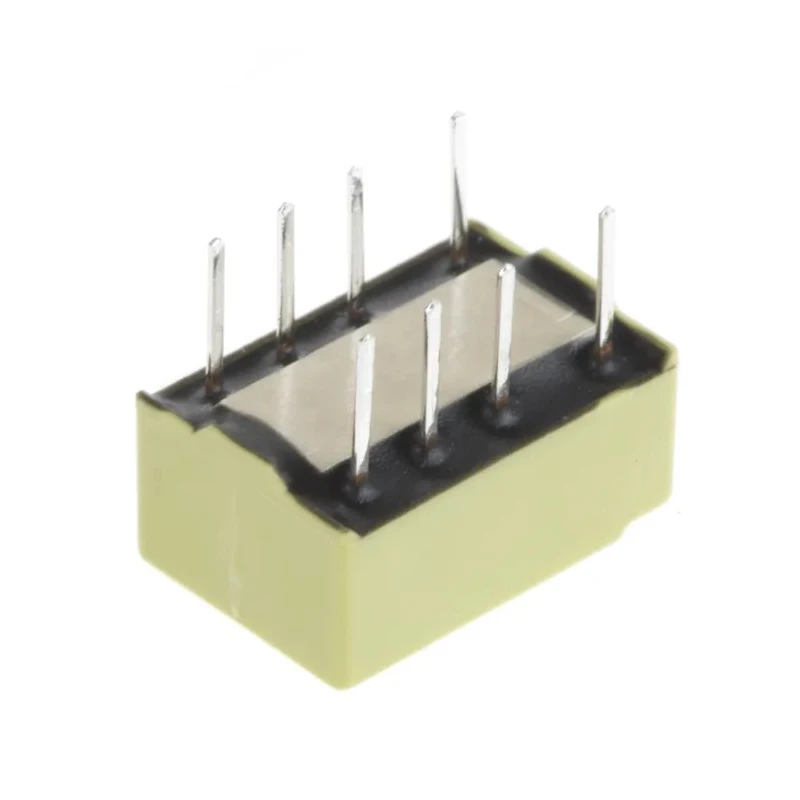

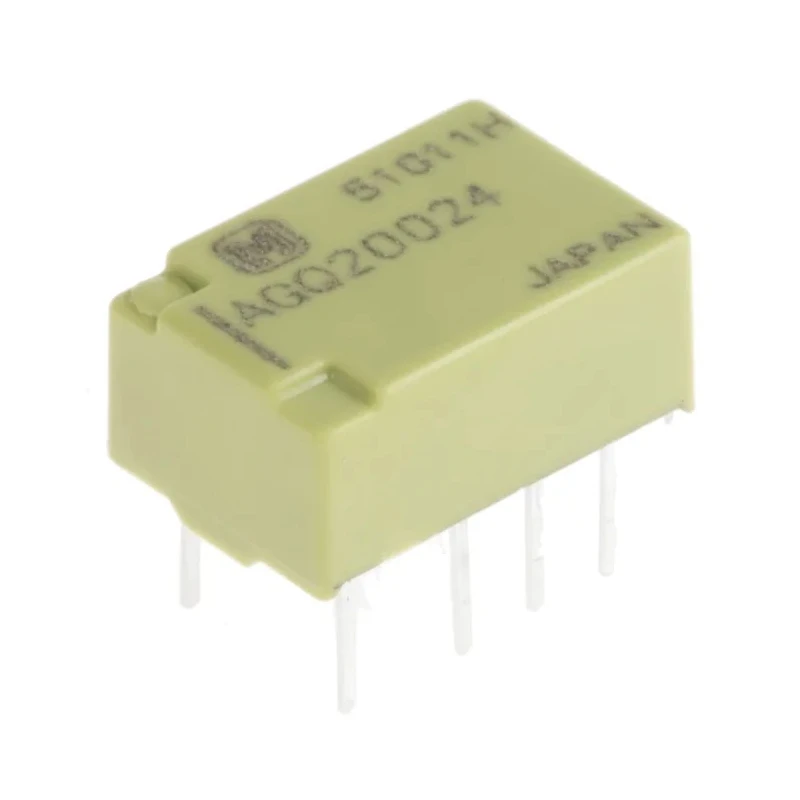

Panasonic AGQ20024 PCB Signal Relay is a high-performance miniature relay designed with a 24V DC coil for precise and reliable switching applications. This DPDT (double pole double throw) relay supports switching currents of up to 1 ampere with AC voltage rating of 125V and DC voltage rating up to 110V, making it ideal for complex electrical signal routing.

The relay features gold plated silver aluminium contacts, which enhance conductivity and reduce wear, ensuring long operational life. Its small physical size with dimensions of 10.9mm length, 7.2mm width, and 5.2mm height allows use in high density printed circuit boards where space is critical.

Designed for PCB terminal mounting, this relay ensures secure connections on circuit boards and offers low coil power consumption rated at 230mW with a coil resistance of 2500 ohms, promoting energy efficiency.

Operational temperature range from -40°C to 85°C allows it to perform reliably in various industrial, laboratory, and commercial electronics applications including transmission, telephony, measuring, and audio-visual equipment. Additionally, it meets RoHS environmental standards underscoring its compliance with hazardous material regulations.

Manufactured in Japan, this Panasonic Signal Relay offers assured quality and durability. It is an excellent choice for engineers and technicians looking for precise control and compact form factor relays for their PCB designs.

Miniature relay with 24V DC coil voltage for efficient operation. Double pole double throw (DPDT) contact configuration supports complex switching. Supports switching currents up to 1A with 125V AC and 110V DC voltages. Gold plated silver aluminium contacts ensure reliable conductivity and durability.

Compact dimensions of 10.9mm length, 7.2mm width, and 5.2mm height. PCB terminal mounting type suitable for easy integration onto printed circuit boards. Operates safely between -40°C and 85°C ambient temperatures. Coil resistance rated at 2500Ω and coil power consumption of 230mW.

Complies with RoHS standards ensuring environmental safety. Manufactured in Japan ensuring high quality production standards.

This relay is ideal for electronics manufacturing, telecommunications devices, instrumentation, and audio-visual equipment where precise signal control and compact size are paramount. Browse more Panasonic relays and signal conditioning products at EnvMart for reliable components in your projects.
