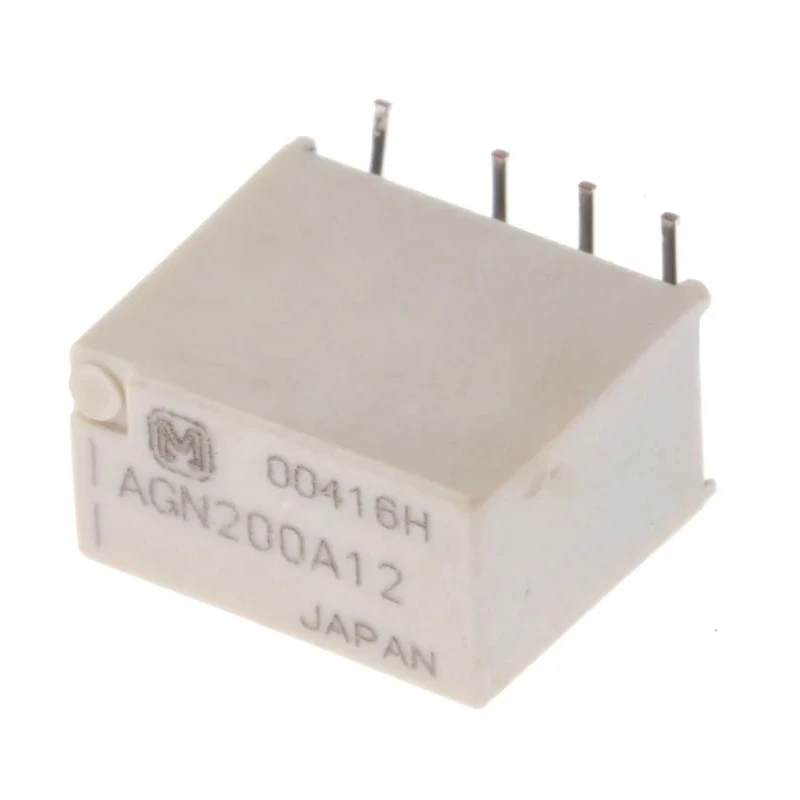

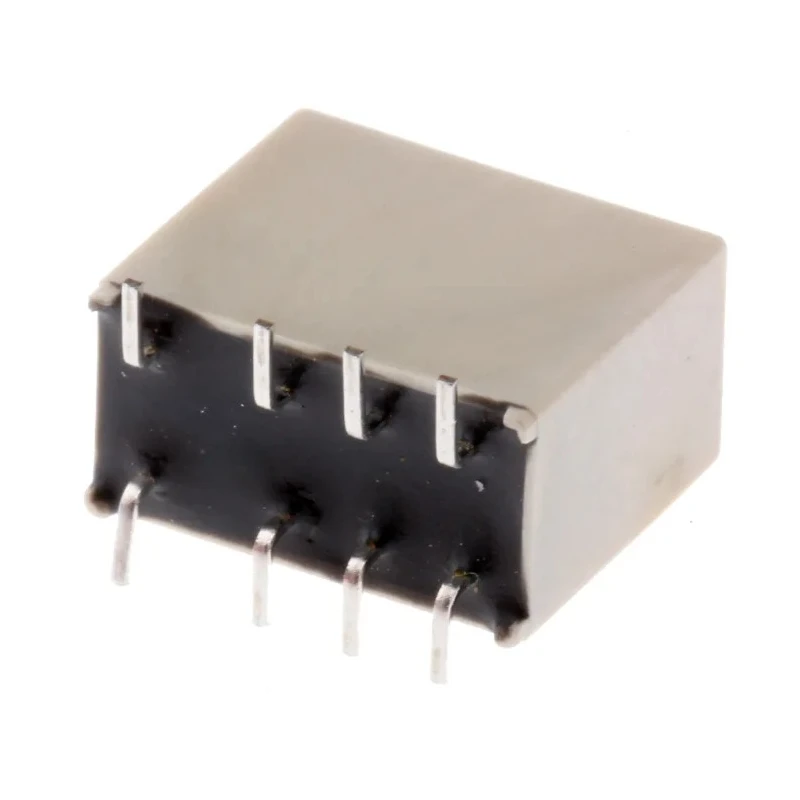

Panasonic Surface Mount DPDT Signal Relay, 12V DC Coil Voltage, 1A Switching Current AGN200A12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9mm |
| Length | 10.9mm |
| Model | AGN200A12 |
| Width | 5.7mm |
| Mount Type | Surface |
| Contact Material | Gold Plated Silver Aluminium |
| Series | FTR-B3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
Key Features
- Twin crossbar contacts provide high contact reliability.
- Compact slim body dimensions of 9x5.7x10.9 mm for PCB surface mounting.
- Gold plated silver aluminium contact materials enhance durability and conductivity.
- Sealed construction allows for automatic washing and protects against contaminants.
- High surge resistance and excellent vibration and shock resistance ensure robust operation.
- Operates within temperature range from -40°C to 85°C.
- Suitable for telecommunications, audio-visual equipment, and measurement instruments.
- PCB terminal type mount offers easy and secure installation on circuit boards.
Product Description
Panasonic AGN200A12 is a compact surface mount DPDT (Double Pole Double Throw) signal relay featuring a 12V DC coil voltage and a switching current of 1A, designed for efficient and reliable low-power switching applications.
This ultra-small relay has a slim body measuring 9 mm in height, 5.7 mm in width, and 10.9 mm in length, optimized for PCB surface mounting with a terminal type suitable for printed circuit boards.
Its twin crossbar contact system ensures high contact reliability and the contact materials of gold-plated silver aluminium provide durability and excellent electrical conductivity. The sealed construction allows automatic washing, protecting the relay's internal components from dust and moisture.
Characteristic features include high surge resistance, and robust performance against vibration and shock, making the AGN200A12 suitable for demanding industrial environments. This relay operates reliably within a wide temperature range of -40°C to 85°C and supports switching voltages up to 125V AC and 110V DC.
Typical applications encompass telecommunications equipment, audio-visual devices, and measurement instruments where compact and precise signal switching is critical. Twin crossbar contacts provide high contact reliability.
Compact slim body dimensions of 9x5.7x10.9 mm for PCB surface mounting. Gold plated silver aluminium contact materials enhance durability and conductivity. Sealed construction allows for automatic washing and protects against contaminants.
High surge resistance and excellent vibration and shock resistance ensure robust operation. Operates within temperature range from -40°C to 85°C. Suitable for telecommunications, audio-visual equipment, and measurement instruments.
PCB terminal type mount offers easy and secure installation on circuit boards. Low coil power consumption rated at 140 mW with coil resistance of 1028Ω. Complies with RoHS standards for environmental safety. Set your projects for success with Panasonic's trusted relay technology, engineered for industrial and commercial electronics.
Explore the full range of Signal Relays on EnvMart to find complementary parts and accessories from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
This model has compact dimensions of 9 mm in height, 5.7 mm in width, and 10.9 mm in length, making it suitable for surface mounting on PCBs.
The relay can switch voltages up to 125V AC and 110V DC, making it suitable for various low-power applications.
It operates with a coil voltage of 12V DC and has a low coil power consumption rated at 140 mW.
The contact materials consist of gold-plated silver aluminium, which enhances both durability and electrical conductivity.
This relay operates reliably within a temperature range of -40°C to 85°C, allowing it to function in various environmental conditions.
It features a PCB terminal type mount, which allows for easy and secure installation on printed circuit boards.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
This relay is suitable for telecommunications equipment, audio-visual devices, and measurement instruments where compact and precise signal switching is essential.
The coil resistance of this model is 1028Ω, which is important for determining the relay's power requirements.
It includes twin crossbar contacts for high contact reliability, a sealed construction to protect against contaminants, and high surge resistance for robust operation.
The weight of this relay is not specified in the provided data. Please refer to the manufacturer for more detailed specifications.
