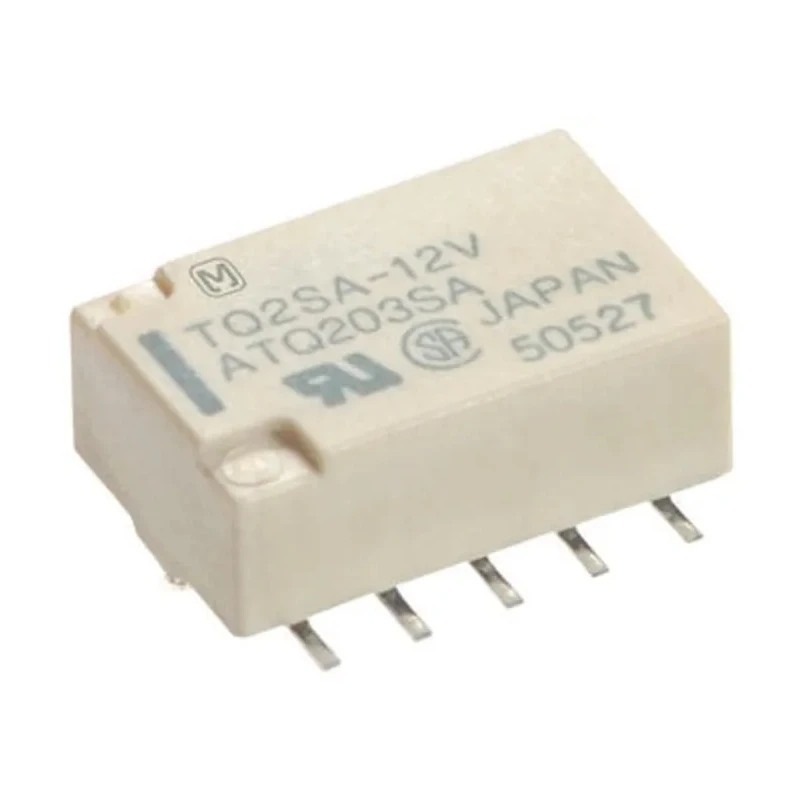

Panasonic Surface Signal Relay 12V DC Coil 2A DPDT TQ2SA-L2-12V

Panasonic TQ2SA-L2-12V surface Signal Relay is a compact, low-profile, and high-performance relay designed for a variety of industrial and commercial applications requiring reliable electronic switching. Featuring a 12V DC coil voltage with a nominal coil power of 140mW, this relay offers efficient operation and low power consumption.

This relay is equipped with a Double Pole Double Throw (DPDT) contact configuration, allowing flexible circuit design and switching multiple outputs simultaneously. The 2A switching current capacity and high switching voltages of 125V AC and 220V DC make it suitable for controlling various electrical loads.

Its compact dimensions - 14mm in length, 9mm in width, and 5.6mm in height - enable integration into tight PCB layouts with surface mount terminals optimized for automated soldering processes. The gold plated contacts enhance conductivity and offer long-term reliability, minimizing contact resistance to approximately 50mΩ.

Designed for durable performance, it operates reliably in ambient temperatures ranging from -40°C to 70°C, making it suitable for harsh environments typical in industrial automation, communication equipment, and measurement devices. The relay complies with RoHS standards, ensuring it meets environmental regulations and quality norms.

Equipped with a 12V DC coil for low voltage operation. Double Pole Double Throw (DPDT) contact configuration provides versatile switching options. Surface mount type suitable for PCB assembly with low profile. Switching current capacity of 2A enables reliable control of circuits.

Compact dimensions: 14mm length, 9mm width, and 5.6mm height. Gold plated contacts ensure excellent conductivity and durability. Operating temperature range from -40°C to 70°C ensures stable performance under harsh conditions.

Low coil power consumption of 140mW contributing to energy efficiency. High switching voltages: 125V AC and 220V DC for broad applicability. Compliant with RoHS standards and manufactured in Japan.

This Panasonic TQ relay series is ideal for use in industrial automation systems, telecommunications, quality assurance equipment, and other demanding electrical control applications. The surface mount design supports modern PCB manufacturing techniques, facilitating high-frequency characteristics and low thermal electromotive force approximately 2μV.
