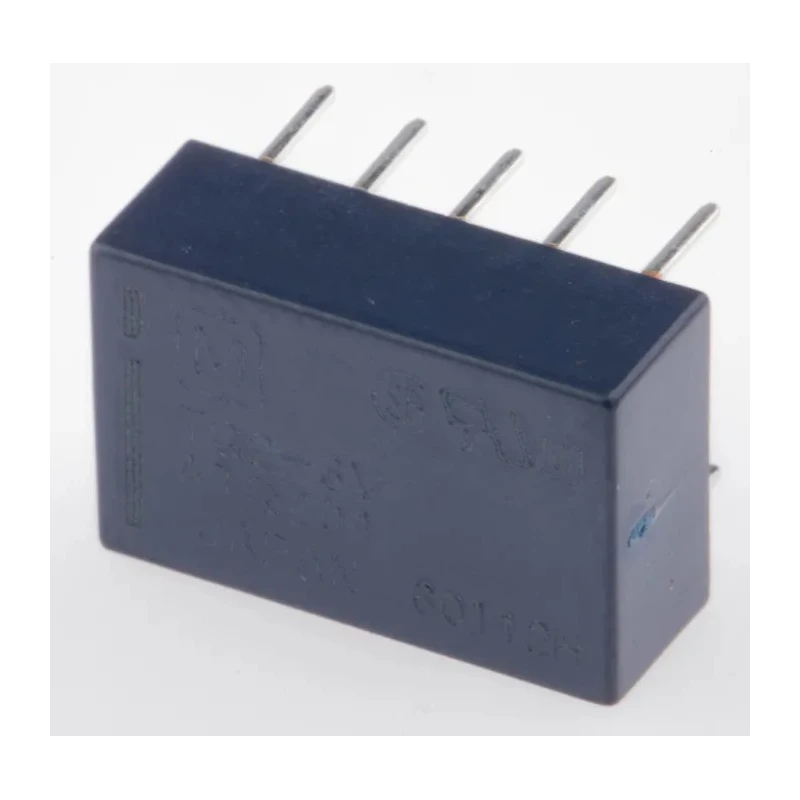

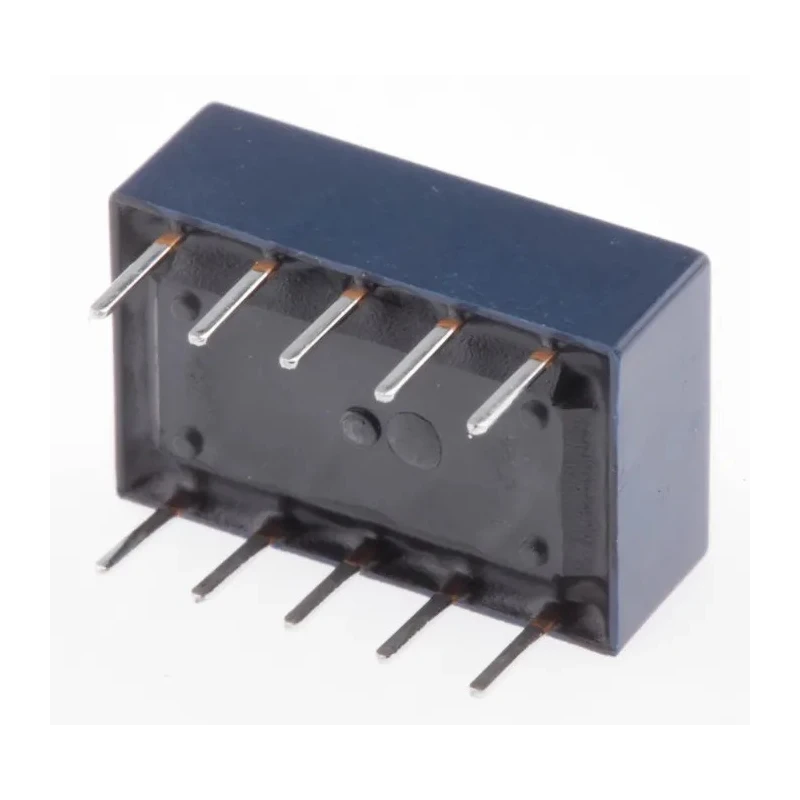

Panasonic PCB Signal Relay 3V DC Coil 1A SPDT TQ2-3V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 14mm |
| Model | TQ2-3V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Typical Applications | Communication, Measurement, industrial |
| Standards/Approvals | RoHS |
| Coil Resistance | 64.3Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 140mW |
Key Features
- This relay features a compact design with dimensions 14mm x 9mm x 5mm.
- Operates efficiently with nominal coil power of 140mW and coil resistance of 64.3Ω.
- Gold plated contacts ensure high contact reliability and low thermal electromotive force.
- Suitable for mounting on PCBs with PCB terminal type connectors.
- Designed for use in communication, measurement, and industrial equipment applications.
- Operating temperature range from -40°C to 70°C for versatile environmental use.
- Supports switching voltages of up to 125V AC and 110V DC with nominal switching capacity of 1A.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Panasonic TQ2-3V PCB Signal Relay offers a low-profile, compact design measuring 14 mm length, 9 mm width, and 5 mm height. This relay operates at a coil voltage of 3V DC with a nominal coil power of 140mW and coil resistance of 64.3Ω, delivering reliable switching performance with a nominal current of 1A.
The SPDT (single pole double throw) contact configuration is gold plated to provide high contact reliability and low thermal electromotive force, making it ideal for precision industrial and communication equipment.
Mounting is optimized for printed circuit boards (PCB) with dedicated PCB terminal types ensuring easy installation. Designed for operation in a wide temperature range of -40°C up to 70°C, this relay is robust and trustworthy for various harsh environments.
Typical applications of the Panasonic TQ2-3V include communication devices, office automation equipment, measurement instruments, and industrial machinery, where compactness, high efficiency, and low power consumption are critical.
This relay features a compact and flat design of only 5 mm height for high-density mounting. Nominal switching capacity is 1A at 30V DC with a maximum switching power of 30W. Gold clad twin crossbar contacts enhance contact reliability and reduce thermal electromotive force.
Designed to meet RoHS environmental compliance standards. Coil voltage rating of 3V DC with coil power consumption of 140mW ensures energy efficiency. Mount type is PCB suited for mounting on printed circuit boards. Operating temperature range is robust, from -40°C to 70°C.
Choose the Panasonic TQ2-3V relay for precise and reliable Signal Relay applications in industrial, communication, and measurement environments. Explore more relays and electrical components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 3V DC.
It has a nominal switching capacity of 1A at 30V DC.
The dimensions are 14mm in length, 9mm in width, and 5mm in height.
This relay features a single pole double throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 70°C.
It is designed for mounting on printed circuit boards (PCB) with PCB terminal type connectors.
The coil power consumption is 140mW.
The contacts are made of gold plated material to enhance reliability.
It can switch voltages of up to 125V AC and 110V DC.
Typical applications include communication devices, measurement instruments, and industrial equipment.
The coil resistance is 64.3Ω.
Yes, it complies with RoHS standards for environmental safety.
