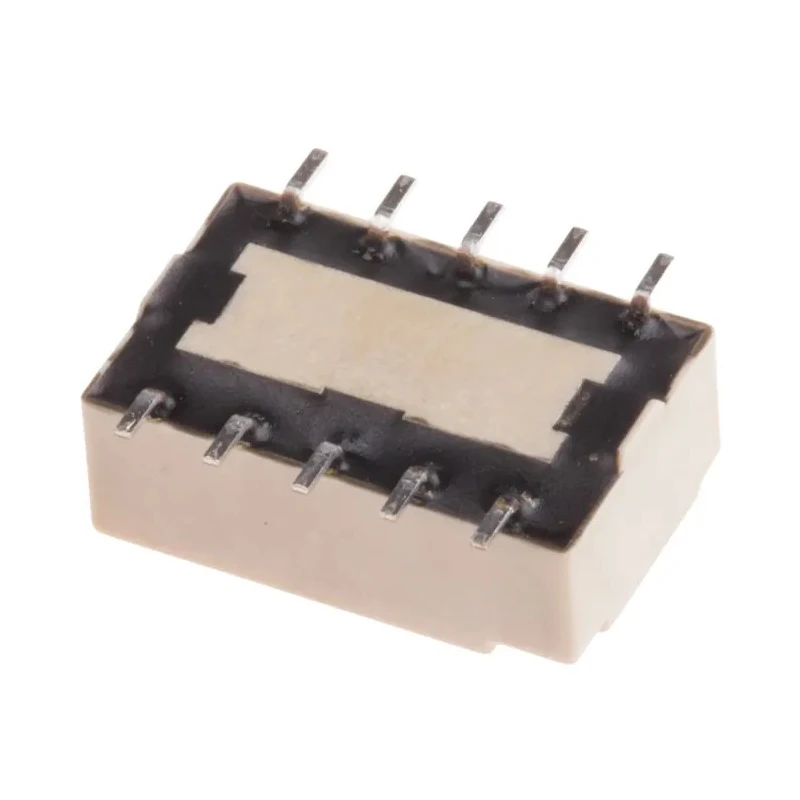

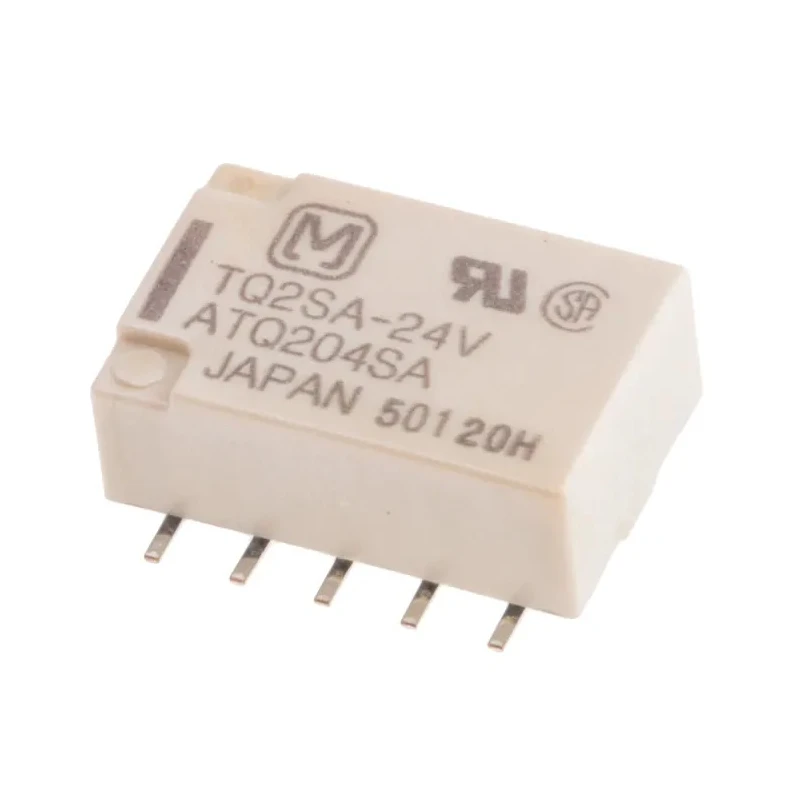

Panasonic Surface Signal Relay 24V DC Coil 1A SPDT TQ2SA-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5.6mm |
| Length | 14mm |
| Model | TQ2SA-24V |
| Width | 9mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | TQ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 2800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
Key Features
- Low profile surface mount relay with compact 14mm length and 9mm width.
- Single pole double throw (SPDT) contact configuration for versatile switching.
- Gold plated contacts ensure reliable conductivity and durability.
- Coil resistance of 2800Ω and power consumption of 200mW.
- Operational temperature range from -40°C to 70°C suitable for harsh environments.
- Designed for PCB mounting with surface mount terminals.
- Rated switching AC voltage of 125V and DC voltage of 110V.
- Complies with RoHS standards for environmental safety.
Product Description
Panasonic TQ2SA-24V surface signal relay features a 24V DC coil and 1A switching current within a compact form factor measuring 14mm in length, 9mm in width, and 5.6mm in height. This relay employs a SPDT (single pole double throw) contact configuration, ideal for control signal switching applications.
This relay is designed with gold plated contacts, providing high reliability and low contact resistance. The coil resistance is specified at 2800 ohms with a coil power consumption of 200mW, ensuring energy-efficient operation.
The relay supports a switching voltage of 125V AC and 110V DC, and operates reliably across a temperature range of -40°C to 70°C, making it suitable for industrial environments and signal conditioning tasks.
Mount type is surface mount with PCB terminals, allowing for efficient automatic insertion and soldering in compact electronic assemblies. Its low thermal electromotive force (approx 2μV) makes it ideal for sensitive communication, measurement, and quality assurance equipment.
Low profile compact design with surface mounting terminals. High sensitivity suitable for signal relay applications. Gold plated contact materials for durability and performance. Wide operating temperature for versatile industrial use.
Energy efficient coil consumption with coil resistance of 2800Ω. Compliant with RoHS environmental standards. Excellent for communication, measurement, and QA equipment applications.
Country of origin is Japan, ensuring high manufacturing standards. This Panasonic signal relay is a reliable component choice for industrial, laboratory, electronics manufacturing, and HVAC control systems requiring precise signal switching.
Explore the wide variety of Signal Relays available in the Electronics & Electricals category at EnvMart for industrial automation and control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It has a switching current capacity of 1A.
This model measures 14mm in length, 9mm in width, and 5.6mm in height.
This relay features a single pole double throw (SPDT) contact configuration.
The operational temperature range is from -40°C to 70°C.
It is designed for surface mounting with PCB terminals.
The coil resistance is specified at 2800Ω.
The coil power consumption is 200mW.
It supports a switching voltage of 125V AC and 110V DC.
The contacts are made of gold plated material for enhanced reliability.
Yes, it complies with RoHS standards for environmental safety.
This relay is suitable for communication, measurement, and quality assurance equipment applications.
