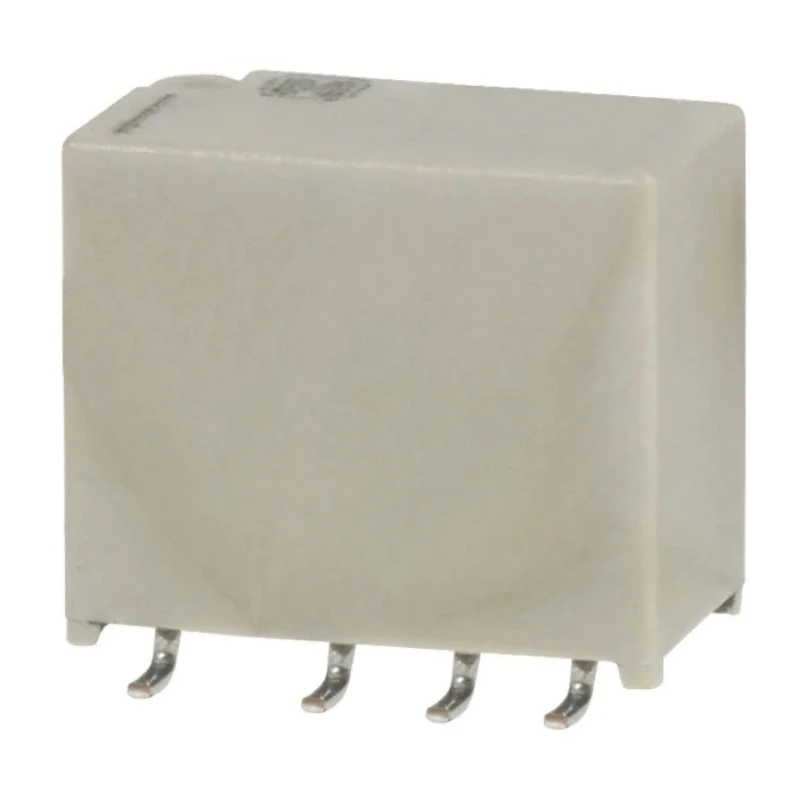

Panasonic Surface Mount Signal Relay with 3V DC Coil, 1A Switching Current, DPDT Configuration AGN200A03

Panasonic AGN200A03 is a surface mount signal relay designed for precise and reliable switching applications. Operating at a coil voltage of 3V DC and capable of switching a current of 1A, this DPDT (Double Pole Double Throw) relay is ideal for industrial, telecommunications, and audio visual equipment.

Its compact slim dimensions (9mm height, 5.7mm width, and 10.9mm length) enable high packaging density on printed circuit boards. The relay features twin crossbar contacts for enhanced reliability in signal switching, and gold plated silver aluminium contacts improve longevity and reduce contact resistance.

This model exhibits high surge resistance, making it suitable for environments involving sudden voltage spikes and electrical noise. Its sealed construction supports automatic washing processes, enhancing manufacturing efficiency without compromising relay integrity.

Capable of switching voltages up to 125V AC and 110V DC, the AGN200A03 operates efficiently across a broad temperature range from -40°C to 85°C, suitable for a variety of industrial and commercial use cases.

The coil resistance of 64.3 ohms and coil power of 140mW ensure low power consumption for energy-sensitive applications. Its PCB terminal design simplifies assembly and integration into electronic control systems.

Applications for this relay span telecommunications systems, measurement and monitoring devices, and various audio visual products demanding dependable signal control. The relay has a compact slim body measuring 9mm in height with a 5.7 x 10.9 mm footprint.

It offers high contact reliability through twin crossbar contact design. Gold plated silver aluminium contact material ensures durability and excellent conductivity. The device is designed for high surge resistance and is RoHS compliant.

Typical applications include telecommunications, measurement equipment, and audio visual devices. Features sealed construction allowing automatic washing without damage. Operates reliably in temperatures ranging from -40°C to 85°C.

PCB terminal mount type enables easy installation on printed circuit boards. Explore more Signal Relay products from Panasonic and other high-quality brands at EnvMart, powered for your industrial and electronic needs.
