Panasonic PCB Power Relay 24V dc Coil 22A Switching Current SPST ALFG1PF24

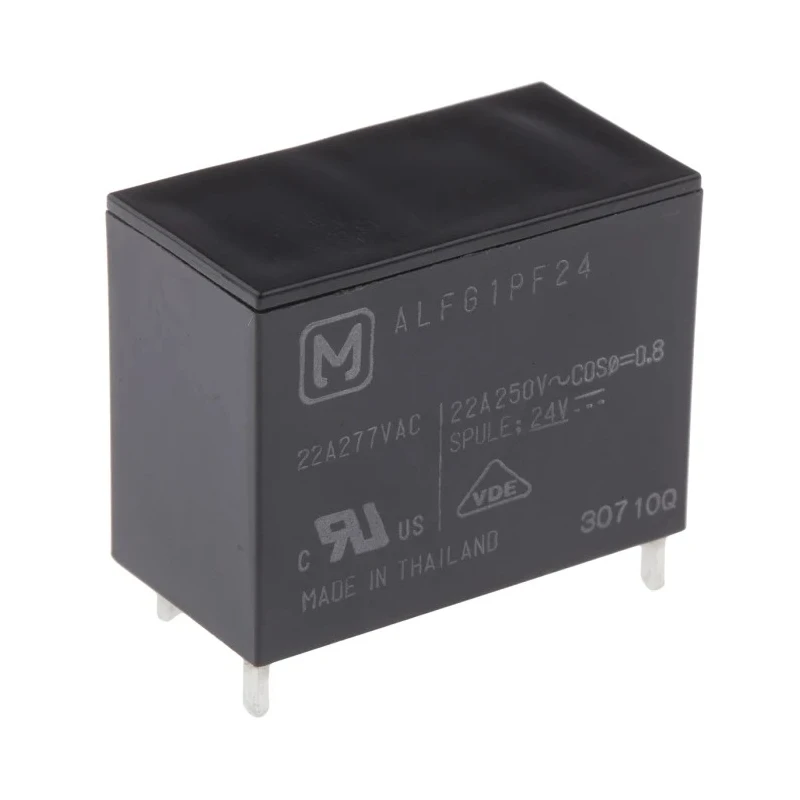

Panasonic ALFG1PF24 PCB Power Relay is a compact, high capacity relay designed for industrial and commercial electrical applications. Featuring a 24V dc coil with a 22A switching current capacity, it ensures dependable performance for power switching tasks on printed circuit boards. The single-pole single-throw (SPST) contact configuration provides a straightforward and reliable switching mechanism ideal for various electrical control systems.

The relay’s through-hole terminal type and PCB mount design facilitate easy and secure installation within electrical circuits. It operates efficiently within a temperature range from -40°C to 60°C, making it suitable for demanding environments. The coil resistance of 410 Ω with a power consumption of 1.4 W ensures low energy use while maintaining effective coil holding voltage. Its physical dimensions (30.1 mm length, 15.7 mm width, and 23.3 mm height) make it a space-saving component for compact PCB assemblies.

Constructed with silver alloy contacts, the relay achieves low contact resistance of 100 mΩ, contributing to minimal power loss and long service life. The surge breakdown voltage rating of 6 kV underlines its robust insulation capabilities, protecting the device and surrounding components from electrical spikes.

This ALFG series relay is particularly suitable for use in photovoltaic power systems such as solar inverters, uninterruptible power supplies (UPS), and a variety of domestic and office electrical equipment. It complies with UL, VDE, and RoHS certifications, reflecting its assurance of safety, reliability, and environmental standards in industrial and residential electric power control systems.

The relay is manufactured in Thailand with strict quality control processes ensuring consistent performance. Its high insulation resistance and reduced coil holding voltage contribute to energy savings in electronic equipment, making it a cost-effective, reliable choice for electrical control applications.

EnvMart offers this Panasonic PCB Power Relay as part of our extensive range of relays and signal conditioning products, providing quality and reliability for your industrial and commercial electrical applications.
