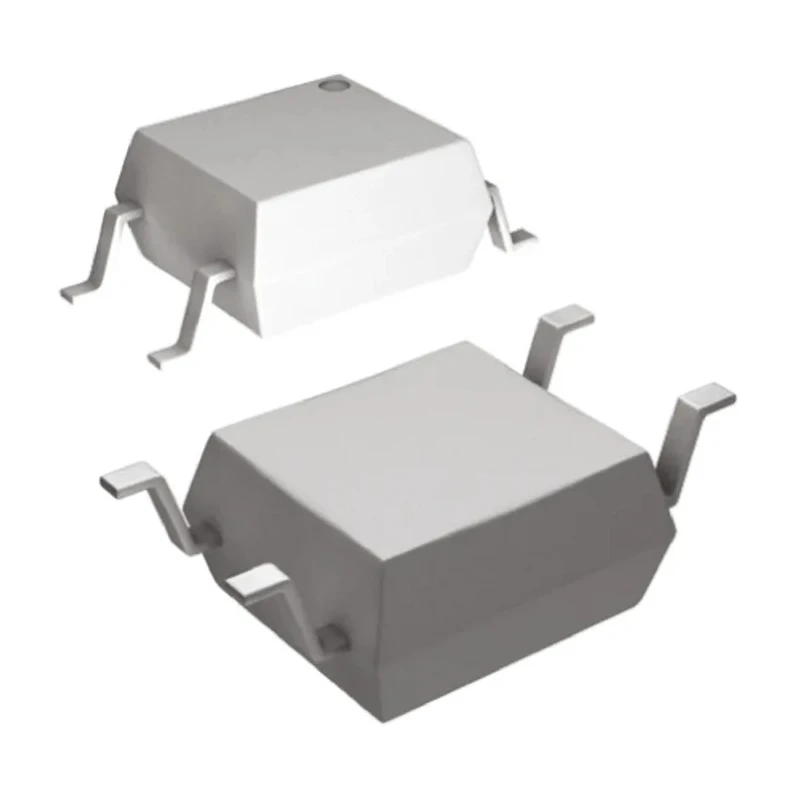

Toshiba Optocoupler Surface Mount MOSFET Output 4-Pin SOP TLP170A(F)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Model | TLP170A(F) |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | TLP170A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL 1577, EN 60747-5-5 |
| Maximum Forward Voltage | 1.3V |
| Number of Pins | 4 |
| Isolation Voltage | 1500V ac |
Key Features
- Provides high isolation voltage of 1500V AC for secure electrical separation.
- Features MOSFET output for efficient switching applications.
- Operates across a wide temperature range from -55°C to 125°C.
- Includes 4-pin SOP surface mount package for compact PCB integration.
- Maximum input current rating is 50mA ensuring robust performance.
- Maximum forward voltage of 1.3V for input LED operation.
- Complies with UL 1577 and EN 60747-5-5 safety standards.
- Manufactured in Japan ensuring high-quality production standards.
Product Description
Toshiba TLP170A(F) is a high-quality optocoupler designed for industrial and electronic circuit isolation applications. It features a surface mount 4-pin SOP package with a MOSFET output, ideal for use in power supply circuitry, signal isolation and switching where compact size and high reliability are required.
The device offers a high isolation voltage of 1500V AC, providing exceptional electrical separation between input and output sides. Its maximum forward voltage of 1.3V and input current limit of 50mA enable efficient LED operation within the optocoupler. The wide operating temperature range from -55°C to 125°C makes it suitable for harsh environmental conditions encountered in industrial and automotive electronic assemblies. Although it is not rated for automotive standards, its compliance with UL 1577 and EN 60747-5-5 ensures safety and reliability in various applications.
The TLP170A(F) optocoupler’s MOSFET output permits low on-resistance switching and minimal power loss, elevating performance in power electronics and signal conditioning applications. Its compact surface mount SOP package simplifies PCB layout and assembly processes.
This component is manufactured in Japan, reflecting high production quality and consistency. It is well suited for designers requiring robust isolation components in power supplies, industrial controls, and communication equipment.
Provides high isolation voltage of 1500V AC for electrical separation. Features MOSFET output for efficient and low-loss switching. Operates from -55°C to 125°C for wide thermal stability. Utilizes a compact 4-pin SOP surface mount package.
Maximum input LED forward current rating of 50mA. Maximum input forward voltage of 1.3V. Compliant with UL 1577 and EN 60747-5-5 standards. Manufactured in Japan ensuring stringent quality standards.
Ideal for industrial, electronic, and power supply applications requiring reliable electrical isolation, signal switching, and compact board integration. Suitable for use in control systems, signal converters, and power isolation modules.
Explore more electronic components and Optocouplers at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLP170A(F) offers a maximum isolation voltage of 1500V AC, ensuring secure electrical separation between the input and output sides.
This model operates across a wide temperature range from -55°C to 125°C, making it suitable for various environmental conditions.
It features a MOSFET output, which allows for efficient switching applications with low on-resistance and minimal power loss.
This optocoupler comes in a 4-pin SOP package, facilitating compact PCB integration.
The maximum input current rating for this model is 50mA, ensuring robust performance during operation.
The maximum forward voltage for the input LED operation is 1.3V, which is essential for efficient functioning of the optocoupler.
This model complies with UL 1577 and EN 60747-5-5 safety standards, ensuring reliability in various applications.
It utilizes a surface mount 4-pin SOP package, which simplifies PCB layout and assembly processes.
The TLP170A(F) is manufactured in Japan, reflecting high production quality and consistency.
This optocoupler is well-suited for industrial, electronic, and power supply applications requiring reliable electrical isolation and signal switching.
The MOSFET output allows for low on-resistance switching, which enhances performance in power electronics and signal conditioning applications.
This model features a single channel, making it suitable for applications that require straightforward signal isolation.
