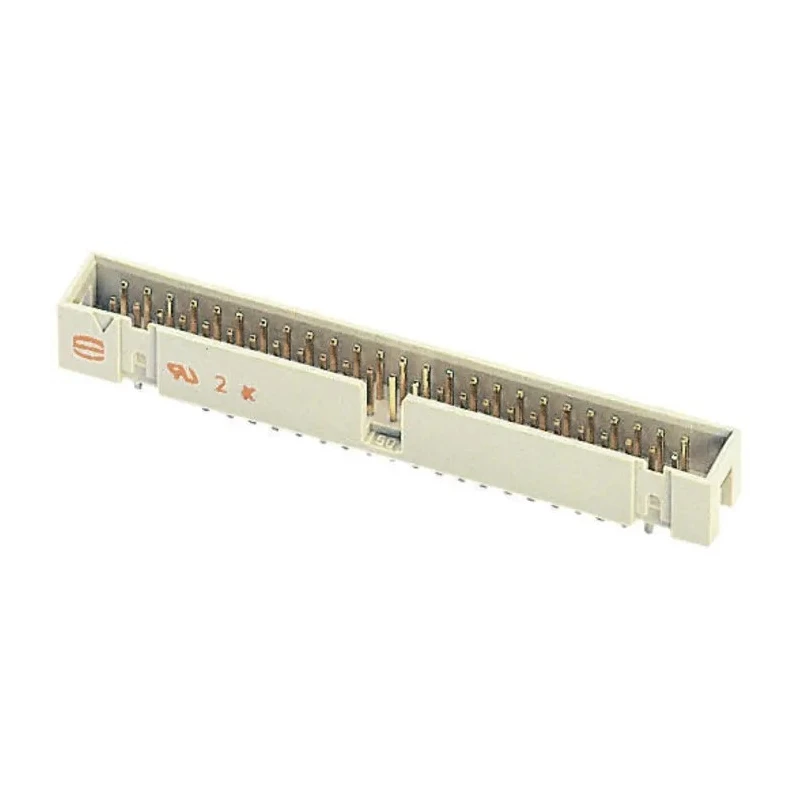

HARTING SEK 18 Series Straight Through Hole 60 Contact PCB Header, 2.54 mm Pitch, 2 Row, Shrouded 09185606324

Free Delivery in India | Lowest Global Shipping Charges

HARTING SEK 18 Series Straight Through Hole 60 Contact PCB Header, 2.54 mm Pitch, 2 Row, Shrouded 09185606324

Name: HARTING SEK 18 Series Straight Through Hole 60 Contact PCB Header, 2.54 mm Pitch, 2 Row, Shrouded 09185606324
Brand: HARTING
SKU: 213139
Price: 7.27 USD
Availability: InStock



Category PCB Headers Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Voltage	1kV
Brand	HARTING
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance.
Constructed with durable polybutylene terephthalate housing for stability and high thermal performance.
Supports a current rating of 1A and voltage up to 1kV, suitable for industrial and electronic applications.
Shrouded male contact configuration ensures secure mating and protection from mechanical damage.
Operates reliably across a temperature range from -55°C to 125°C for harsh environments.
Designed for through-hole mounting with a 2.54 mm row pitch and solder termination type.

Product Description

HARTING 09185606324 PCB Header is a high-quality component from the SEK 18 Series, featuring 60 contacts arranged in 2 rows with a 2.54 mm pitch. This straight through-hole, shrouded header is ideal for wire-to-board connections in industrial, electronic manufacturing, and automation applications.

The connector housing is made of polybutylene terephthalate which offers excellent mechanical strength and thermal resistance, making it suitable for demanding environments. Contacts are crafted from copper alloy and plated with gold to provide reliable conductivity and to prevent corrosion over prolonged use.

Rated for 1 amp current and up to 1 kV voltage, the header meets various electronic standards and assures stable connectivity. Its operating temperature range from -55°C to 125°C enables usage in extreme temperature conditions, ensuring durability and performance.

The shrouded design with male contacts provides secure mating and protects the contacts from accidental damage, while through-hole mounting and solder termination facilitate solid installation on printed circuit boards.

This PCB header is widely applicable in industries such as electronics manufacturing, industrial automation, and instrumentation, meeting IEC 60603-13 standards and featuring no specific approvals, making it a reliable and standardized choice.

Features gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance. Constructed with durable polybutylene terephthalate housing for stability and high thermal performance. Supports a current rating of 1A and voltage up to 1kV, suitable for industrial and electronic applications.

Shrouded male contact configuration ensures secure mating and protection from mechanical damage. Operates reliably across a temperature range from -55°C to 125°C for harsh environments. Designed for through-hole mounting with a 2.54 mm row pitch and solder termination type.

This HARTING SEK 18 Series PCB header enhances efficiency in electrical and electronic device assembly and is recommended for engineers and designers seeking dependable board connectivity solutions. Explore more HARTING products and PCB connector options at EnvMart for comprehensive electronic component needs.
