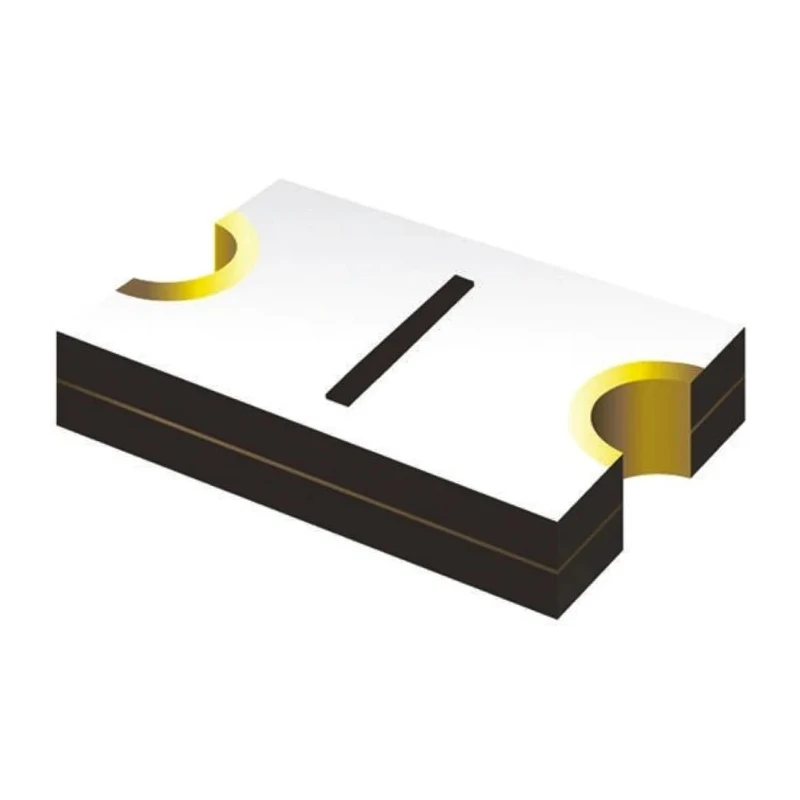

Bourns 0.5A Resettable Fuse 6V Surface Mount Technology 0603 Reel MF-FSMF050X-2

The Bourns MF-FSMF050X-2 is a high-quality resettable fuse designed to protect electronic circuits from excessive currents. It operates at 6V with a hold current of 0.5A and a trip current of 1A, providing rapid fault response within 0.1 seconds. Compactly sized with a 1.85mm length, 1.05mm width, and 1mm height, it fits the 0603 surface mount technology footprint, making it ideal for space-constrained designs.

This fuse is widely used in USB port protection, PC motherboards, mobile phones, PDAs, and digital cameras to safeguard against overcurrent damage. Its gold-plated nickel terminals provide excellent electrical connectivity and reliability. The fuse automatically resets after fault conditions clear, supporting thousands of maintenance-free cycles, enhancing durability and reducing the need for replacements.

Manufactured under RoHS standards and sourced from China, the MF-FSMF050X-2 also features a maximum resistance of 800mΩ and a minimum resistance of 0.1Ω. It is supplied in reel packaging suitable for automated assembly processes, improving production efficiency.

The fuse operates reliably across a temperature range of -40°C to 85°C with a power dissipation rating of 0.5W. It is applicable in industrial, commercial, and consumer electronic circuits that require compact, reliable resettable overcurrent protection.

Designed for USB port, PC motherboard, mobile phone, and digital device protection. Features automatic reset and returns to low resistance after fault clearance. Surface mount technology with small 0603 footprint saves board space.

Gold plated nickel terminals ensure reliable electrical contact. Undergoes thousands of maintenance-free automatic reset cycles. Compact size enables fast reaction to overcurrent events. RoHS compliant and manufactured in China.

Available on a convenient reel package for efficient assembly. Operating temperature range from -40°C to 85°C. Power dissipation rating of 0.5W. Explore more options in Resettable Fuses and similar products in the Electronics & Electricals category on EnvMart for your industrial and electronic circuit protection needs.
