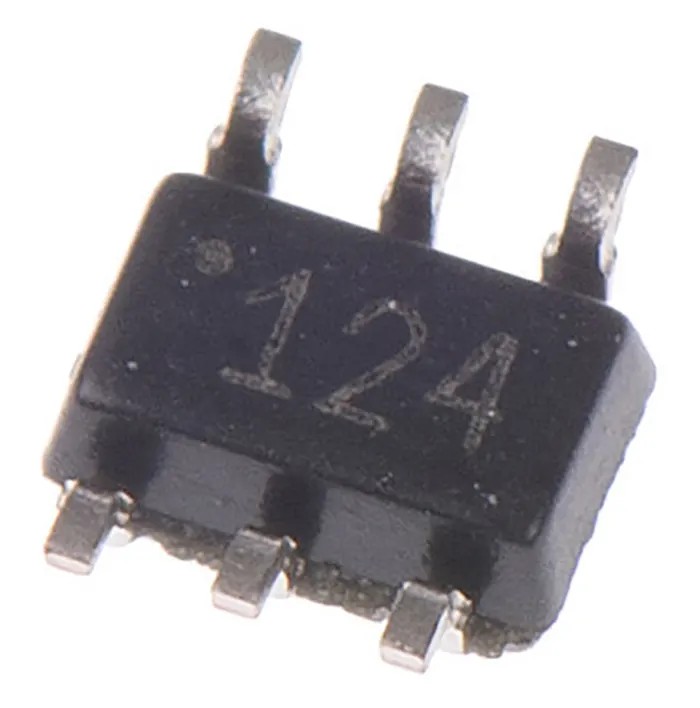

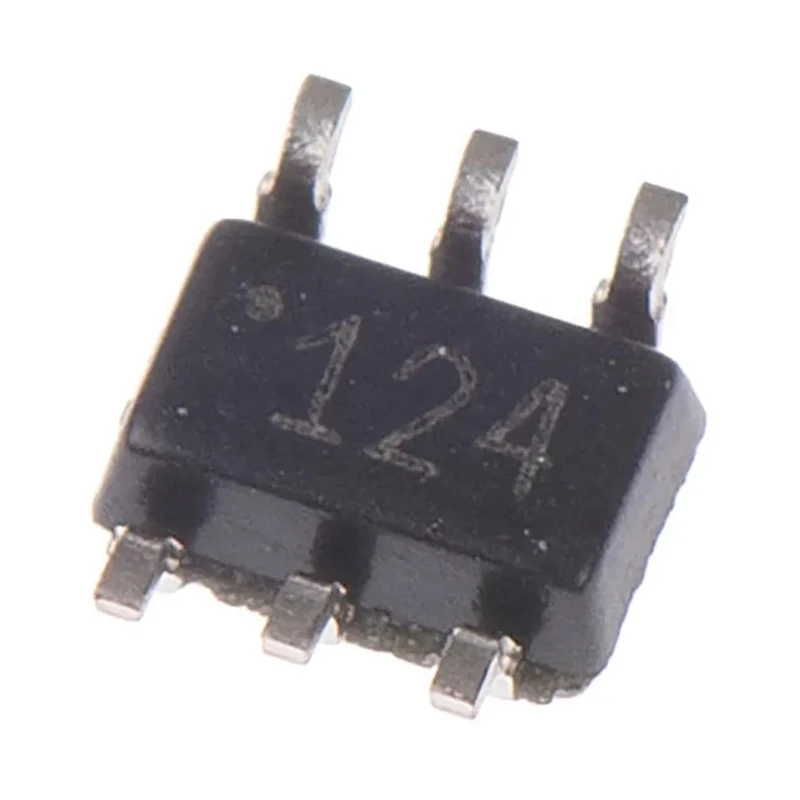

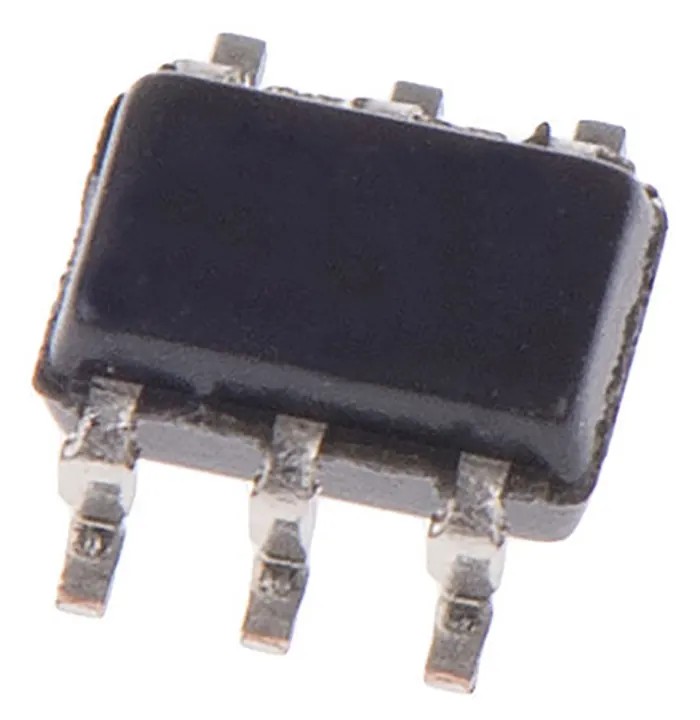

Semtech 5-Element Uni-Directional TVS Diode Array 100W 6-Pin SOT-363 SMF05C.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 0.9mm |
| Length | 2mm |
| Model | SMF05C.TCT |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | SMF |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-363 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 6 |
| Number of Elements per Chip | 5 |
| Clamping Voltage VC | 12.5V |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 100W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 8A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Designed for transient protection in data lines with 5 elements per chip.
- Uni-directional diode configuration with common anode type.
- Supports a minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5V.
- Capable of handling maximum peak pulse current of 8A with low reverse leakage current of 5μA.
- Operates reliably between -55°C to 125°C temperature range.
- Provides ESD protection compliant with IEC 61000-4-2 standards.
- Low clamping voltage of 12.5V for effective transient voltage suppression.
Product Description
Semtech SMF05C.TCT is a 5-element uni-directional TVS diode array delivering 100 watts peak pulse power dissipation in a compact 6-pin SOT-363 surface mount package. It is engineered for effective transient voltage suppression on sensitive data lines and electronic circuits.
This TVS diode array features a common anode diode configuration and offers a minimum breakdown voltage (Vbr) of 6V with a maximum reverse stand-off voltage (Vwm) of 5V, ensuring reliable protection against voltage transients. The low maximum reverse leakage current of 5μA minimizes power loss under normal operating conditions.
Its peak pulse current (Ippm) rating of 8A enables it to absorb high transient energy surges, and the device withstands operating temperatures from -55°C to 125°C, allowing use in harsh industrial and electronic environments.
The compact dimensions (2mm length, 1.25mm width, 0.9mm height) and surface mount SOT-363 package provide easy PCB integration with high density layouts. Its ESD protection meets IEC 61000-4-2 standards with ±15kV air discharge and ±8kV contact discharge rating, safeguarding sensitive circuits from electrostatic discharge damage.
This device is ideal for industrial, telecommunications, computing, automotive electronics, and consumer electronic applications requiring high reliability transient voltage suppression in a small form factor.
5-element diode array for robust ESD and transient voltage protection. Uni-directional diode configuration with common anode type. 100W peak pulse power capacity for transient voltage suppression. Low leakage current reduces standby power loss.
Wide operating temperature range supports diverse environments. Compact 6-pin SOT-363 surface mount package. Compliant with IEC 61000-4-2 ESD protection standards. Low clamping voltage minimizes downstream voltage stress.
Explore the Semtech TVS Diode range at EnvMart for high-performance transient voltage suppression components suitable for electronic design and repair professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Semtech SMF05C.TCT has a peak pulse power dissipation of 100 watts.
The minimum breakdown voltage (Vbr) for this diode array is 6V.
The maximum reverse stand-off voltage (Vwm) is 5V.
This model can handle a maximum peak pulse current of 8A.
The clamping voltage (VC) for the Semtech SMF05C.TCT is 12.5V.
It operates reliably between -55°C to 125°C.
The dimensions are 2mm in length, 1.25mm in width, and 0.9mm in height.
It features a common anode diode configuration.
The maximum reverse leakage current is 5μA.
This model uses a surface mount type (SOT-363).
Yes, it meets IEC 61000-4-2 standards for ESD protection.
There are 5 elements per chip in this TVS diode array.
