Semtech 6-Element Bi-Directional EMI Filter & ESD Protector, 16-Pin SLP EP ECLAMP2410P.TCT

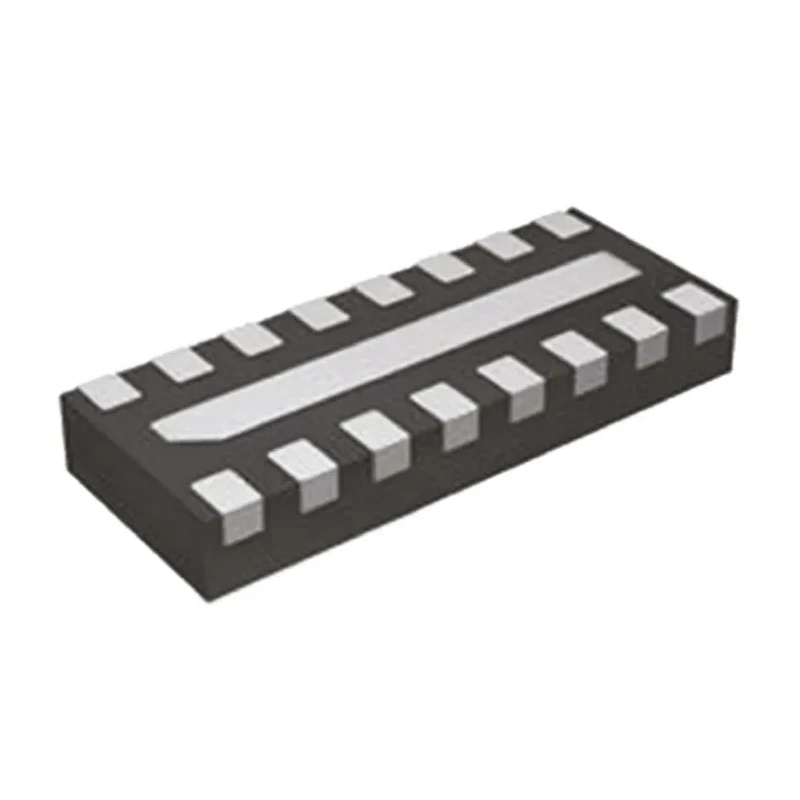

Semtech ECLAMP2410P.TCT 6-Element Bi-Directional EMI Filter & ESD Protector is a precision-engineered 16-pin surface mount device designed to provide exceptional electromagnetic interference (EMI) suppression and electrostatic discharge (ESD) protection. Its robust 6-element complex array diode configuration ensures reliable performance in critical electronic applications requiring sensitive circuitry protection.

This device is ideally suited for industrial electronic equipment and consumer electronics where noise filtering and transient voltage suppression are essential. The filter features a minimum breakdown voltage of 6 volts and a maximum reverse stand-off voltage of 5 volts, enabling it to protect circuits from sudden voltage spikes.

The compact SLP EP package, with dimensions of 0.65 mm height, 4.1 mm length, and 1.6 mm width, facilitates easy surface mounting onto PCBs with space constraints. Operating temperature range from -40°C to 85°C allows its use in varied environmental conditions including industrial and automotive electronic systems.

Key advantages include a maximum reverse leakage current of just 500nA, ensuring minimal power loss and high efficiency. The device is bi-directional, making it effective against voltage surges in both directions of current flow. The integrated ESD protection safeguards against electrostatic discharge damage, extending the reliability and operational lifecycle of electronic components.

This EMI filter and ESD protector are widely applicable in electronic design for noise filtering, surge protection, and compliance with EMC requirements in telecommunications, automotive electronics, and consumer devices. Its surface mount design enables streamlined manufacturing processes and compact product designs.

The device features a complex array diode configuration for superior transient voltage suppression. It operates with a minimum breakdown voltage of 6 volts and maximum reverse stand-off voltage of 5 volts. Designed for surface mount applications with a compact 16-pin SLP EP package.

Operates reliably in temperatures ranging from -40°C to 85°C. The component includes 6 elements per chip providing enhanced protection against electromagnetic interference. Maximum reverse leakage current is low at 500nA to ensure minimal power loss.

Test current specified at 1mA ensuring compliance with safety standards. Height, length, and width dimensions are 0.65 mm, 4.1 mm, and 1.6 mm respectively for compact PCB integration. This filter is bi-directional, providing protection against voltage spikes from either direction.

ESD protection is integrated, safeguarding sensitive electronics from electrostatic discharge damage.

Explore the comprehensive range of EMI filters and ESD protection components in the Semtech series for high-reliability electronic engineering applications. This product complements the broad category of EMI Filters & Protection essential for modern electronics.
