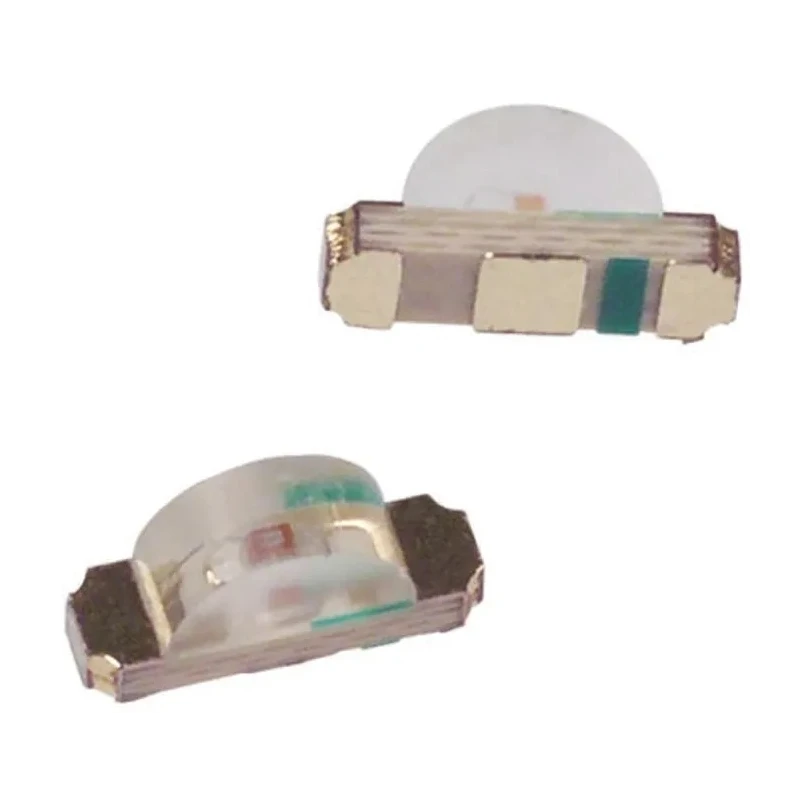

Broadcom 1.8 V Red LED 3210 Surface Mount Dome Lens 17 mcd Luminosity HSMH-C110
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMH-C110 |
| Mount Type | Surface |
| Series | HSMx-Cxxx |
| Maximum forward current | 30mA |
| Viewing angle | 130 to 170 ° |
| Package Type | 3210 |
| Standards/Approvals | IR Reflow Solder Compatible |
| LED Colour | Red |
| Dominant Wavelength | 639nm |
| Forward Voltage | 1.8V |
| Number of Pins | 2 |
| LED Luminosity | 17 mcd |
| Lens Dimensions | 3.2 x 1 x 1.5 mm |
| Lens Shape | Dome |
| Lens Finish | Clear, Non-Diffused, Diffused |
Key Features
- Red LED with a forward voltage of 1.8 V for efficient illumination.
- Compact 3210 surface mount package with dome-shaped, clear lens.
- Maximum forward current rated at 30 mA ensuring durability.
- Viewing angle ranges from 130° to 170°, suitable for various indicator applications.
- Lens dimensions are 3.2 x 1 x 1.5 mm, fitting compact electronic assemblies.
- Compatible with IR reflow solder process for ease of manufacturing.
- Operating temperature range extends from -40°C to +85°C for robust performance.
- Right-angle and reverse-mount options available for flexible design integration.
Product Description
Broadcom HSMH-C110 1.8 V Red LED 3210 Surface Mount Dome Lens delivers reliable and compact illumination performance for a wide range of electronic device applications. This LED features a forward voltage of 1.8 volts and a luminous intensity of 17 millicandela, making it ideal for visible indicator and display applications.
The device uses a compact 3210 package with a dome-shaped lens measuring 3.2 x 1 x 1.5 mm, providing a focused light output with a wide viewing angle from 130 to 170 degrees. Designed with IR reflow solder compatibility, it integrates seamlessly into automated manufacturing workflows.
Operating reliably from minus 40 to plus 85 degrees Celsius, the HSMH-C110 series accommodates harsh industrial environments. It is suitable for applications including keypad backlighting, push-button illumination, LCD backlighting, symbol backlighting, and front panel indicators.
Red LED with 1.8 V forward voltage for optimum efficiency. Compact 3210 surface mount package with dome lens design. 17 mcd luminosity with wide viewing angle of 130° to 170°. Compatible with IR reflow solder to support modern electronics assembly.
Robust operating temperature range from -40°C to +85°C. Available in right angle and reverse mount variants for flexible layout options. Commonly employed in industrial machinery, consumer electronics, and commercial devices.
Explore more precision lighting components and LED devices at EnvMart for your industrial and electronic requirements.
