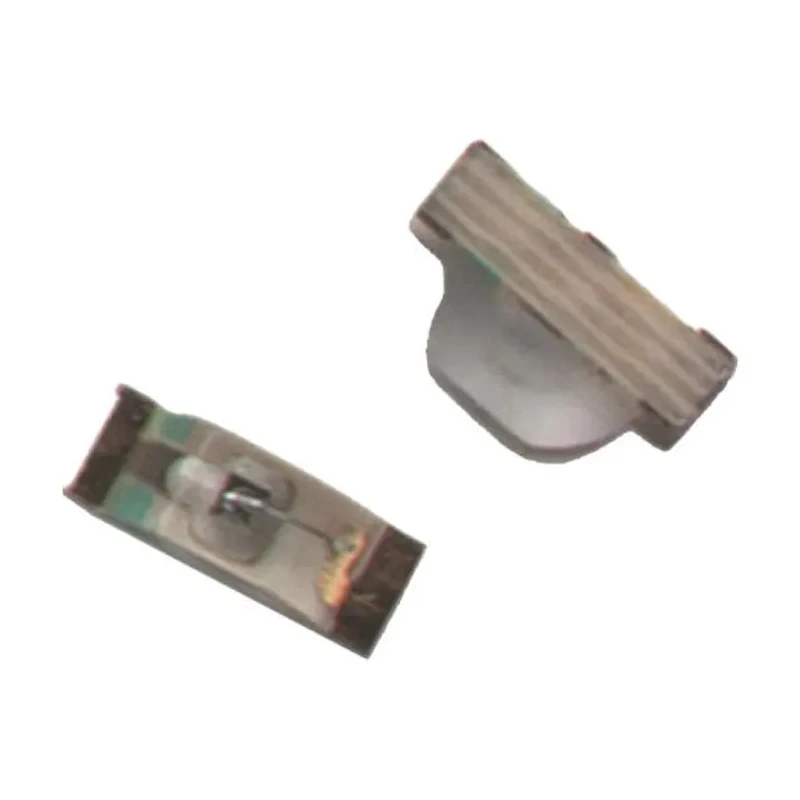

Broadcom 2.2 V Green LED 1606 Surface Chip LED HSMG-C120

Broadcom HSMG-C120 2.2 V Green LED 1606 Surface Chip LED is a high-quality surface mount device designed to deliver efficient illumination in a compact 1606 package. It features a green LED color with a dominant wavelength of 572 nm and operates at a forward voltage of 2.2 V with a maximum forward current of 20 mA. Constructed for durability and precision, it includes a rectangular non-diffused lens that provides a clear and focused light output with a wide viewing angle of 155 degrees.

The device is RoHS compliant and adheres to industry standards for environmental safety and reliability. Its tape and reel packaging facilitates easy handling and integration in automated assembly lines. The operating temperature range of -30°C to +85°C ensures consistent performance across diverse industrial and commercial applications.

Common applications include keypad backlighting, push-button backlighting, LCD backlighting, symbol illumination, and front panel indicator lighting across electronic, industrial, and consumer devices. The compact size of 1.6 x 1.0 x 0.6 mm allows seamless integration where space constraints exist, while maintaining intense luminosity rated at 15 mcd.

Compact 1606 package for surface mount applications. Forward voltage of 2.2 V and maximum forward current of 20 mA. Green LED with dominant wavelength 572 nm and 155° viewing angle. Rectangular non-diffused lens for precise light output.

RoHS compliant for environmental safety. Temperature operation from -30°C to +85°C suitable for varied environments. Tape & reel packaging optimized for automated manufacturing. Ideal for keypad, push-button, LCD backlighting and front panel indicators.

Industry-standard footprint compatible with varied LED colors. High reliability and ease of assembly in compact size. Explore more components in the Broadcom series and LEDs category on EnvMart for a wide selection of lighting solutions tailored for industrial and electronic applications.
