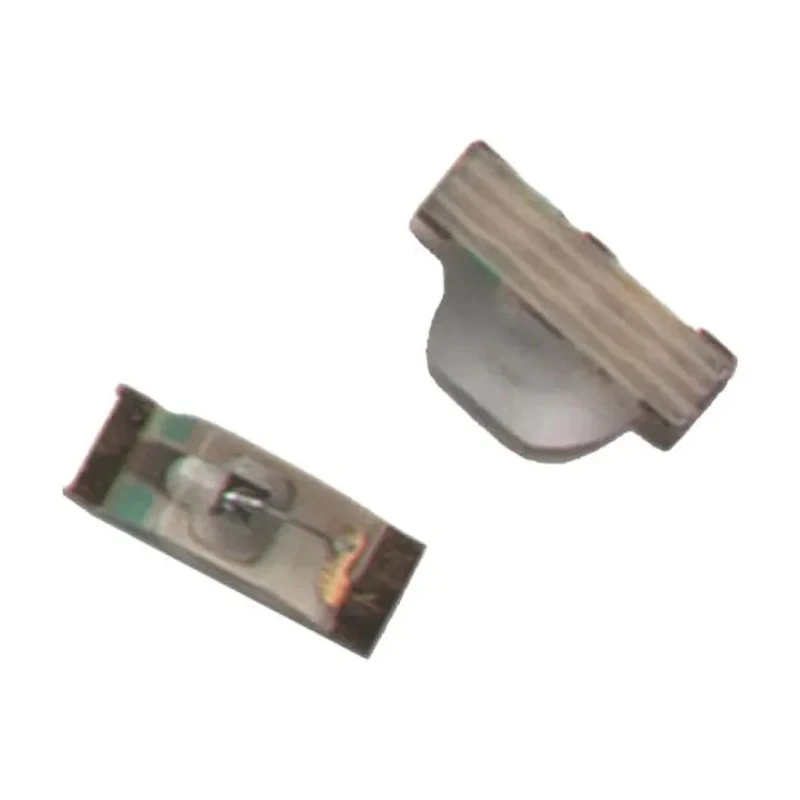

Broadcom Orange LED 1.9 V 1606 Surface Mount 90 mcd Luminosity HSML-C120

Broadcom HSML-C120 is an orange light emitting diode designed in a compact 1606 surface mount package with a dome-shaped lens measuring 1.6 × 1 × 0.6 mm, offering a viewing angle of 155° and a luminosity of 90 mcd. Operating at a forward voltage of 1.9 V and a maximum forward current of 25 mA, this LED dissipates no more than 60 mW, making it a low power and efficient component.

This LED series is RoHS compliant, highlighting its adherence to environmental standards and reliability. The untinted, non-diffused lens ensures vivid and precise orange illumination at a dominant wavelength of 605 nm, suitable for detailed indicator requirements. The device supports surface mount technology, facilitating automated PCB assembly and compact circuit design.

With an operating temperature range from -30°C up to +85°C, the HSML-C120 is engineered for durability and stability across industrial, commercial, and consumer electronics applications. Typical uses include keypad and push-button backlighting, LCD panel illumination, symbol indicators, and front panel lighting in various electronic devices.

The packaging is tape and reel, optimizing industrial use and manufacturing line integration. Its industry-standard footprint and small form factor enable easy replacement and design flexibility in tight spaces.

Compact 1606 package for tight PCB layouts. Energy-efficient with 25 mA forward current and low power dissipation. High-quality orange illumination with 90 mcd luminosity. Wide viewing angle at 155° for better visibility.

Durable with a broad temperature operating range of -30°C to +85°C. RoHS compliant for environmental safety. Ideal for backlighting and indicator applications in electronics manufacturing.

EnvMart provides a comprehensive selection of electronic components including LEDs like the Broadcom HSML-C120 for industrial, laboratory, commercial, and manufacturing uses. Explore similar LED components with precise optical and electrical characteristics under the Electronics & Electricals category.
