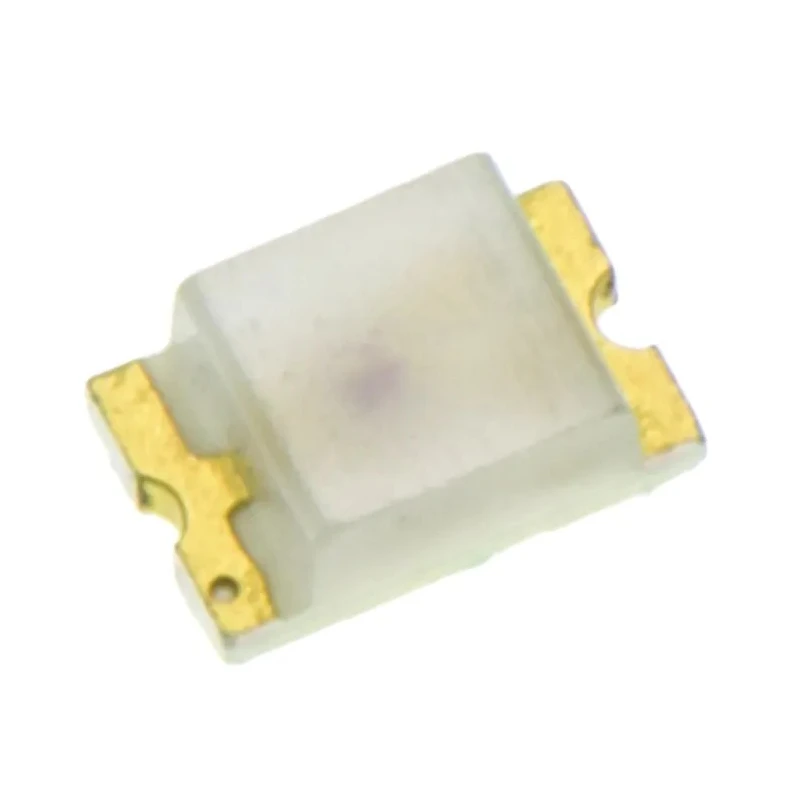

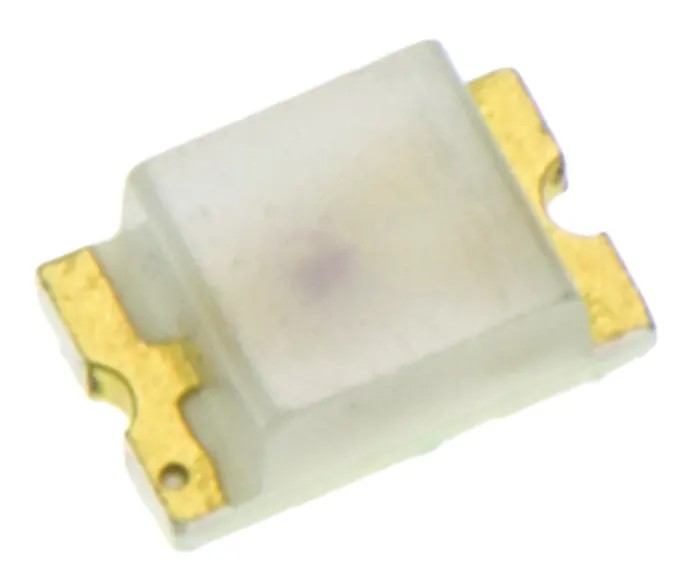

Broadcom 1.9 V Red 2012 Surface Mount Chip LED HSMC-C170

Broadcom HSMC-C170 is a premium-quality red LED designed for surface mounting with a compact 2012 (0805) footprint, measuring 2 x 1.25 x 0.8 mm. Operating at a forward voltage of 1.9 V and a maximum forward current of 25 mA, it provides a bright red light output with a luminous intensity of 90 mcd.

This Chip LED is enclosed in a rectangular clear lens with a wide viewing angle of 170°, making it ideal for applications requiring broad light dispersion such as keypad backlighting, push button illumination, LCD and symbol backlighting, and front panel indicators in electronics and industrial equipment.

The component is RoHS compliant, aligning with environmental standards, and is designed to be compatible with infrared soldering processes. It is supplied in tape and reel packaging to facilitate automated pick-and-place assembly in manufacturing environments.

Its robust operating temperature range from -40°C to +85°C ensures reliability in industrial, commercial, and consumer electronics. The device is not certified for automotive standards but finds comprehensive applications in electronic signaling, displays, and indicator lights.

The LED's compact and standardized size supports easy integration into high-density PCB layouts. Its 2-pin design simplifies mounting and circuit connectivity. High luminous intensity ensures clear visual indicators even in ambient lighting.

Tape and reel packaging improves manufacturing efficiency for large volume production. RoHS certification supports environmentally responsible product selection.

This Broadcom 1.9 V red surface mount LED HSMC-C170 is an excellent choice for designers and engineers seeking a reliable, standard footprint LED for a variety of optoelectronic applications.
