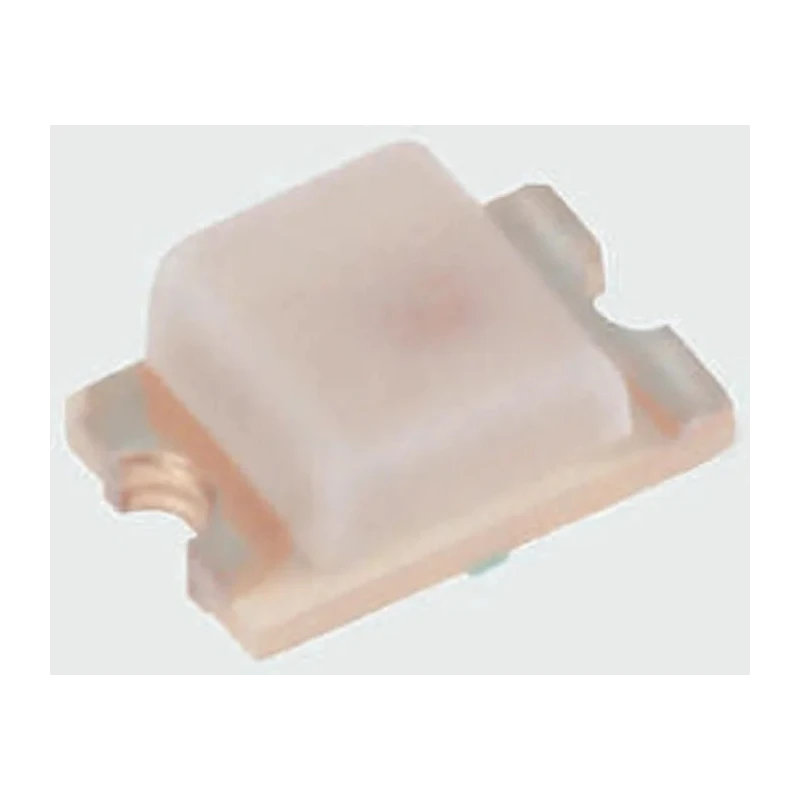

Broadcom 1.9 V Amber 3216 Surface Mount Chip LED HSMA-C150

Broadcom HSMA-C150 is a 1.9 V Amber surface mount chip LED with a 3216 package size, designed for use in electronic applications such as keypad backlighting, push-button backlighting, LCD panel backlighting, symbol backlighting, and front panel indicators.

This Chip LED provides a compact rectangular form factor with dimensions of 3.2 x 1.6 x 1.1 mm, enabling easy integration into circuits requiring an industry-standard footprint.

The HSMA-C150 model features a maximum forward current of 25 mA and a forward voltage of 1.9 V, with a maximum power dissipation rating of 60 mW. It offers a luminous intensity of 90 millicandela (mcd) and a broad 170° viewing angle, facilitating effective illumination over wide angles.

Manufactured to meet RoHS environmental standards, this LED is designed for reliability and safety while operating within a temperature range from minus 40 to plus 85 degrees Celsius, suitable for industrial, commercial, and consumer electronic applications.

Compact 3216 (1206) surface mount package for circuit board assembly. Amber color LED with a dominant wavelength of 592 nm. Maximum forward current of 25 mA ensuring safe operation. High viewing angle of 170 degrees for wide light dispersion.

Clear rectangular lens enabling consistent brightness. Operating temperature range -40°C to +85°C for diverse environments. Packaging in tape and reel format suitable for automated systems. RoHS compliant for environmental safety.

Typical use cases include applications in electronics manufacturing, instrumentation lighting, communication equipment, automotive interior indicators, and general LED indicator purposes. The standardized footprint ensures easy replacement and design compatibility across products.
